Eaton Series C Complete Molded Case Circuit Breaker – Circuit Breaker Supplier

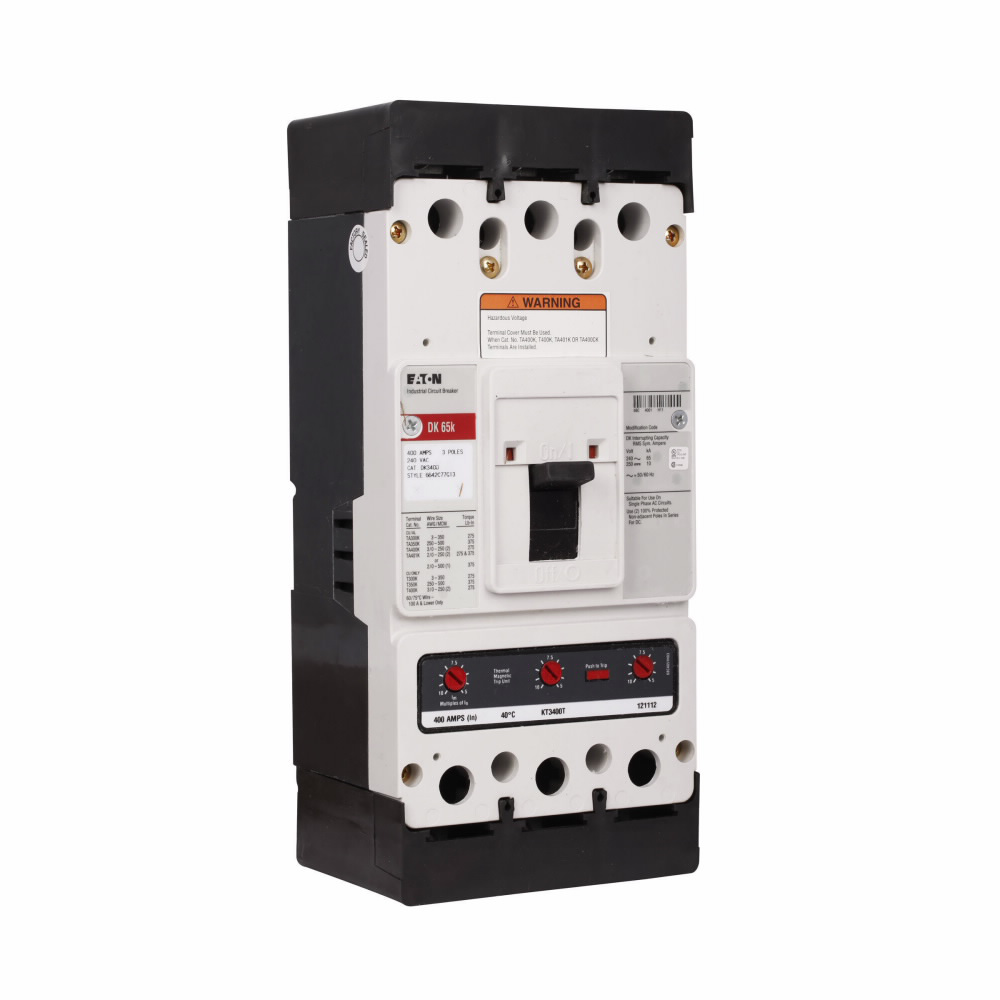

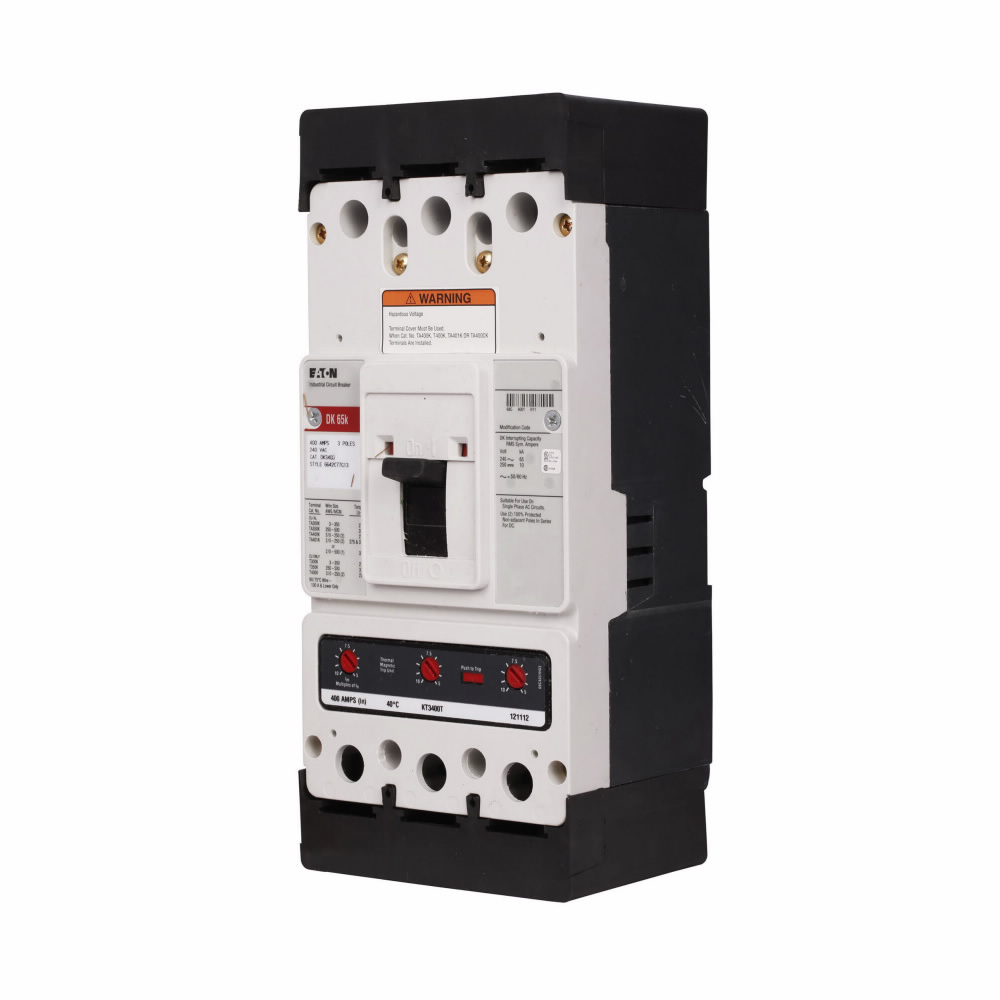

The Eaton Series C complete molded case circuit breaker, K-frame DK model, is designed for reliable protection in electrical distribution systems. This three-pole circuit breaker is rated for 400 amperes and supports applications at 240 Vac and 250 Vdc, with interrupt ratings of 65 kiloamps at 240 Vac and 10 kiloamps at 250 Vdc. It is suitable for use by electrical distributors and switchgear suppliers seeking robust circuit protection solutions for power distribution, motor control, and lighting systems.

Specifications

• Manufacturer: Eaton
• Model Number: DK3400W
• Frame: K
• Amperage: 400 amperes
• Poles: Three-pole
• Voltage Ratings: 240 Vac, 250 Vdc
• Interrupt Rating: 65 kiloamps at 240 Vac, 10 kiloamps at 250 Vdc
• Frequency: 50/60 Hz
• Dimensions (H x W x D): 5.5 in x 5.5 in x 4.1 in
• Product Weight: 11.5 lbs
• Without terminals

Features

• Fixed thermal and fixed magnetic trip type for precise protection
• Complete breaker design for easy integration in electrical systems
• High interrupting capacity suitable for demanding industrial environments
• K-frame construction ensures compatibility with Eaton Series C accessories and mounting hardware
