Eaton Series C Complete Molded Case Circuit Breaker – Electrical Distributor Circuit Protection

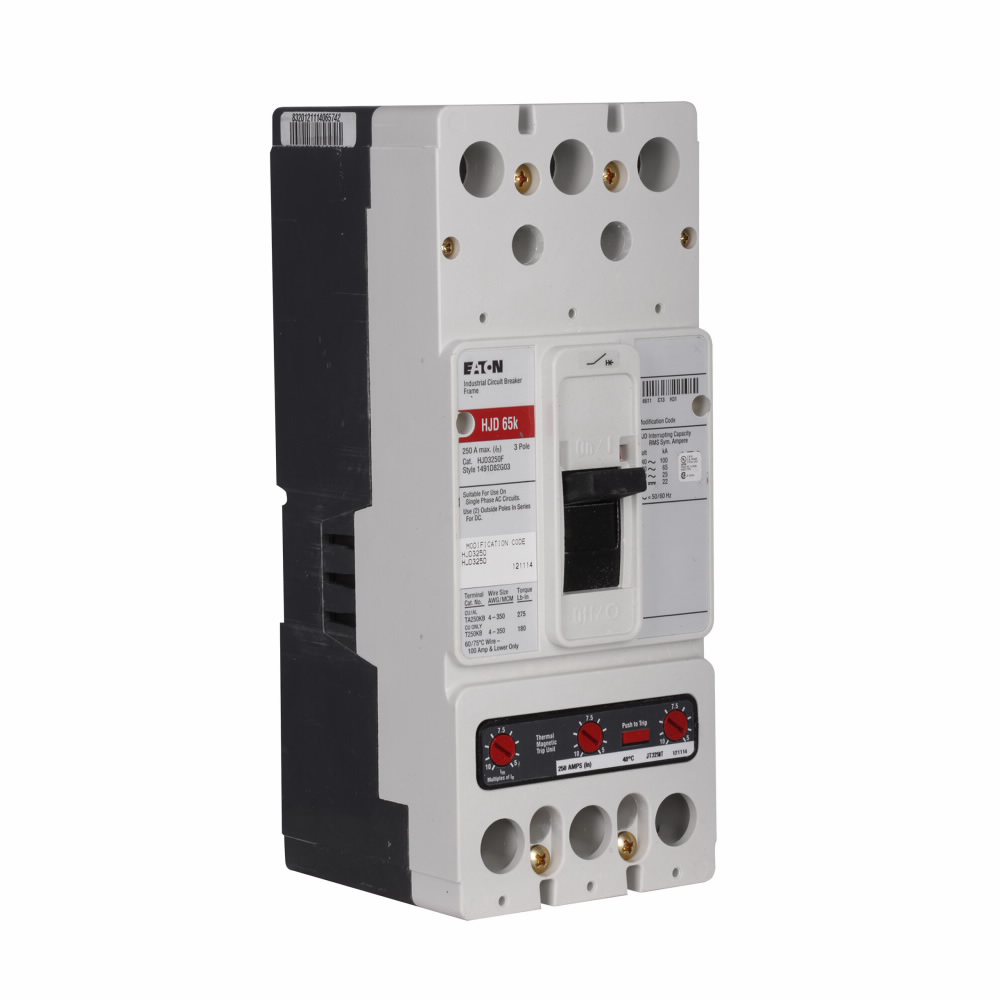

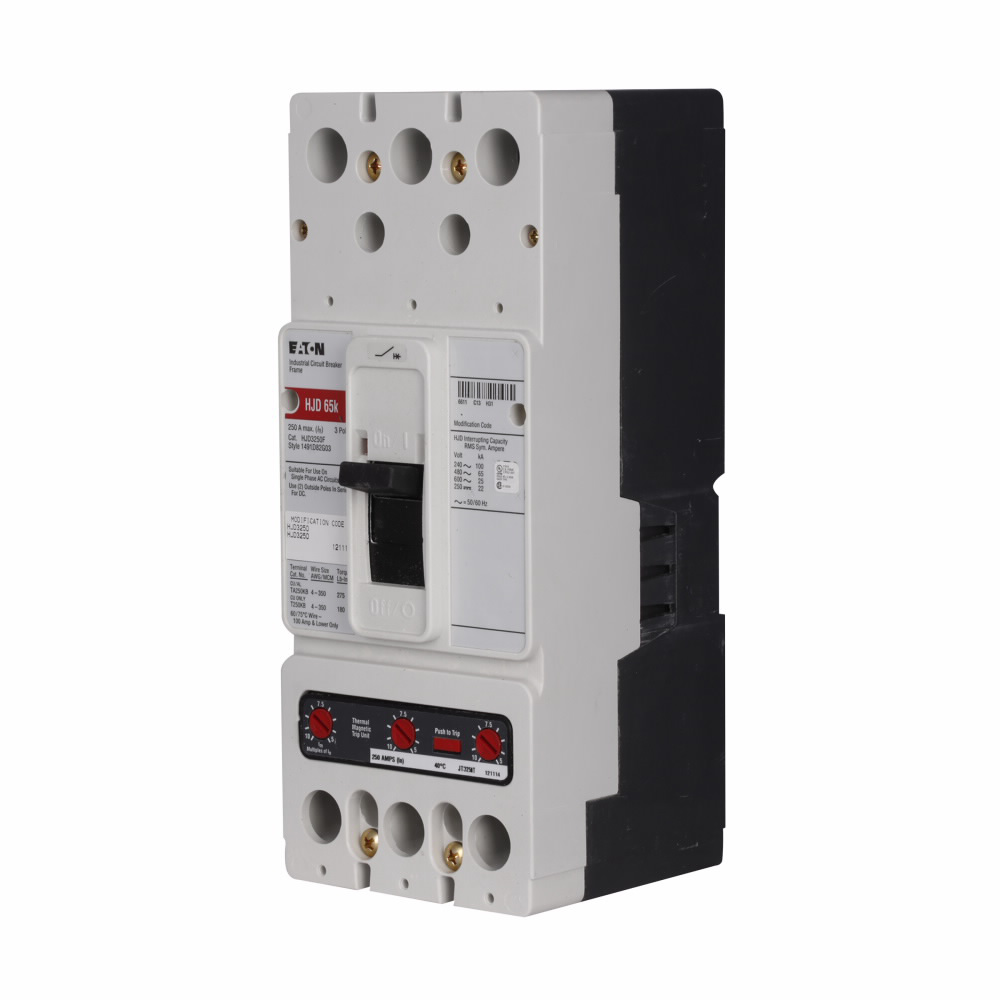

The Eaton Series C complete molded case circuit breaker, J-frame JD model, is designed for reliable circuit protection in electrical distribution systems. This three-pole breaker supports up to 225 amperes and operates efficiently at 600 Vac and 250 Vdc, making it ideal for various industrial and commercial applications including lighting solutions, wire and cable protection, and integration within switchgear assemblies. Its fixed thermal and magnetic trip units provide precise overcurrent protection, ensuring system safety and compliance with electrical standards.

Specifications

• Manufacturer: Eaton
• Model: JD3225
• Frame Size: J
• Poles: Three-pole
• Amperage Rating: 225 amperes
• Voltage Rating: 600 Vac, 250 Vdc
• Interrupting Capacity: 65 kAIC at 240 Vac, 35 kAIC at 480 Vac
• Trip Type: Fixed thermal and fixed magnetic trip
• Frequency: 50/60 Hz
• Enclosure Material: Stainless Steel
• Dimensions (W x H x L): 4.13 in x 4.13 in x 4.06 in
• Product Weight: 9.55 lbs
• Connection: Line and load

Features

• Thermal-magnetic trip unit for precise and reliable overcurrent protection
• High interrupting capacity suitable for industrial electrical distribution
• Compact J-frame size allows for efficient space utilization in switchgear
• Durable stainless steel enclosure for enhanced mechanical protection and longevity
• Compatible with plug-in adapters for simplified installation and maintenance
• UL and IEC certification compliance ensures adherence to industry safety standards

Downloads and Links

• Cutler-Hammer Series C Time-Current Curves for J-Frame Circuit Breakers (Publication No. AD-29-167J)
• Plug-in Adapters for Molded Case Circuit Breakers (Publication No. PA01219004E)
