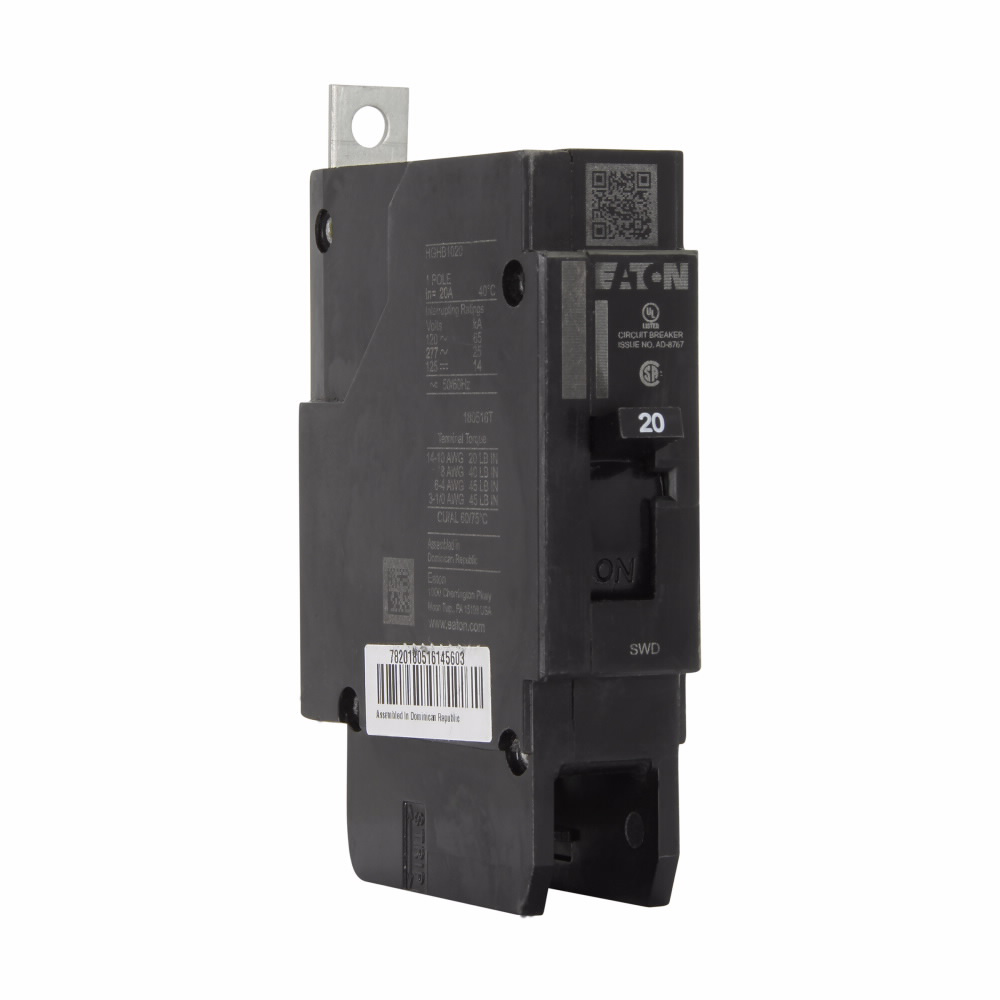

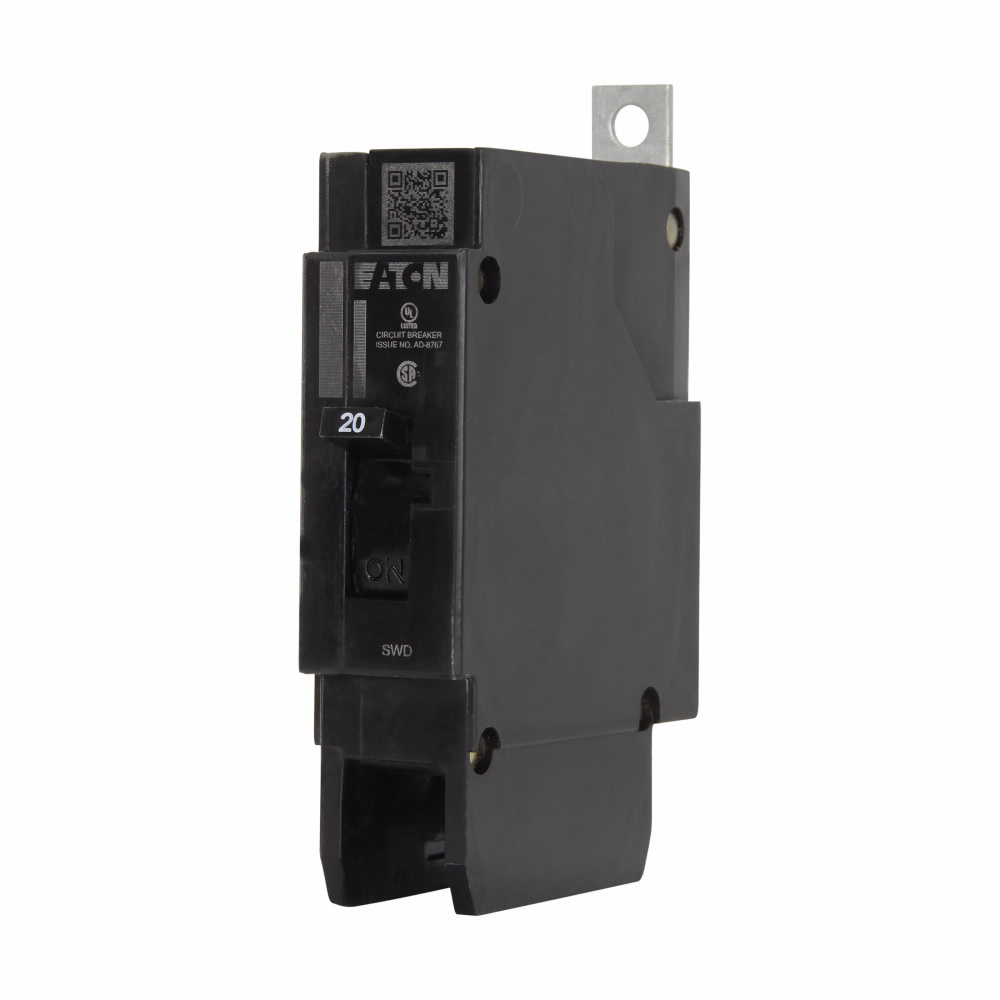

Eaton Series C Complete Molded Case Circuit Breaker - G-Frame, 20A

The Eaton Series C complete molded case circuit breaker, G-frame, type HGH, is designed for reliable branch circuit protection and motor protection applications. This single-pole breaker is suitable for electrical distributors and switchgear suppliers requiring a fixed thermal and magnetic trip type breaker. It supports 20 amperes at 277 Vac and 125 Vdc with a 25 kA interrupt rating at 277 Vac, 50/60 Hz frequency, and features bolt-on mounting for secure installation. The breaker is engineered to provide short-circuit and overload protection in commercial and industrial electrical systems.

Specifications

• Manufacturer: Eaton
• Manufacturer Part #: HGHB1020
• Frame: G
• Circuit Breaker Type: HGH
• Amperage: 20 amperes
• Voltage Rating: 277 Vac, 125 Vdc
• Interrupt Rating: 25 kiloamps at 277 Vac
• Frequency: 50 hertz
• Dimensions (W x H x L): 1 in x 4 in x 2.63 in
• Product Weight: 0.67 lbs
• Mounting Type: Bolt-on

Features

• Fixed thermal and fixed magnetic trip type for consistent protection
• Single-pole design for branch circuit and motor protection
• High interrupt rating of 25 kAIC at 277 Vac for enhanced safety
• Compact dimensions for space-saving panel installations
• Compatible with standard Series C and Series G breaker accessories
