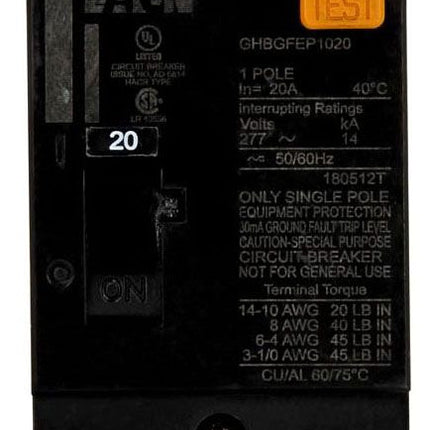

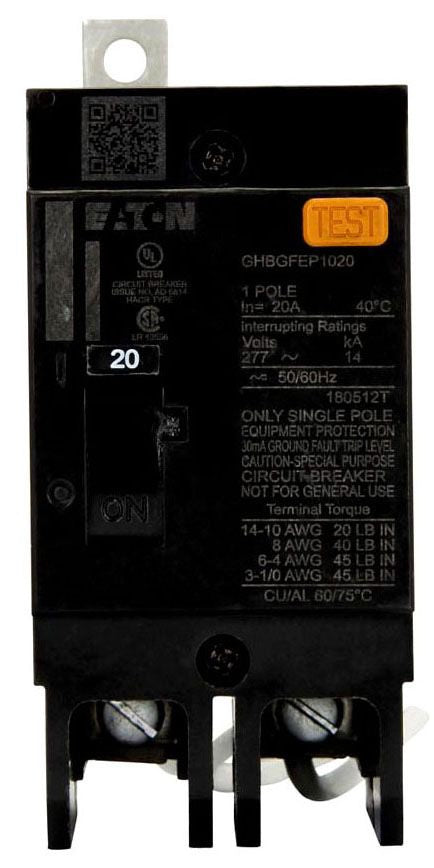

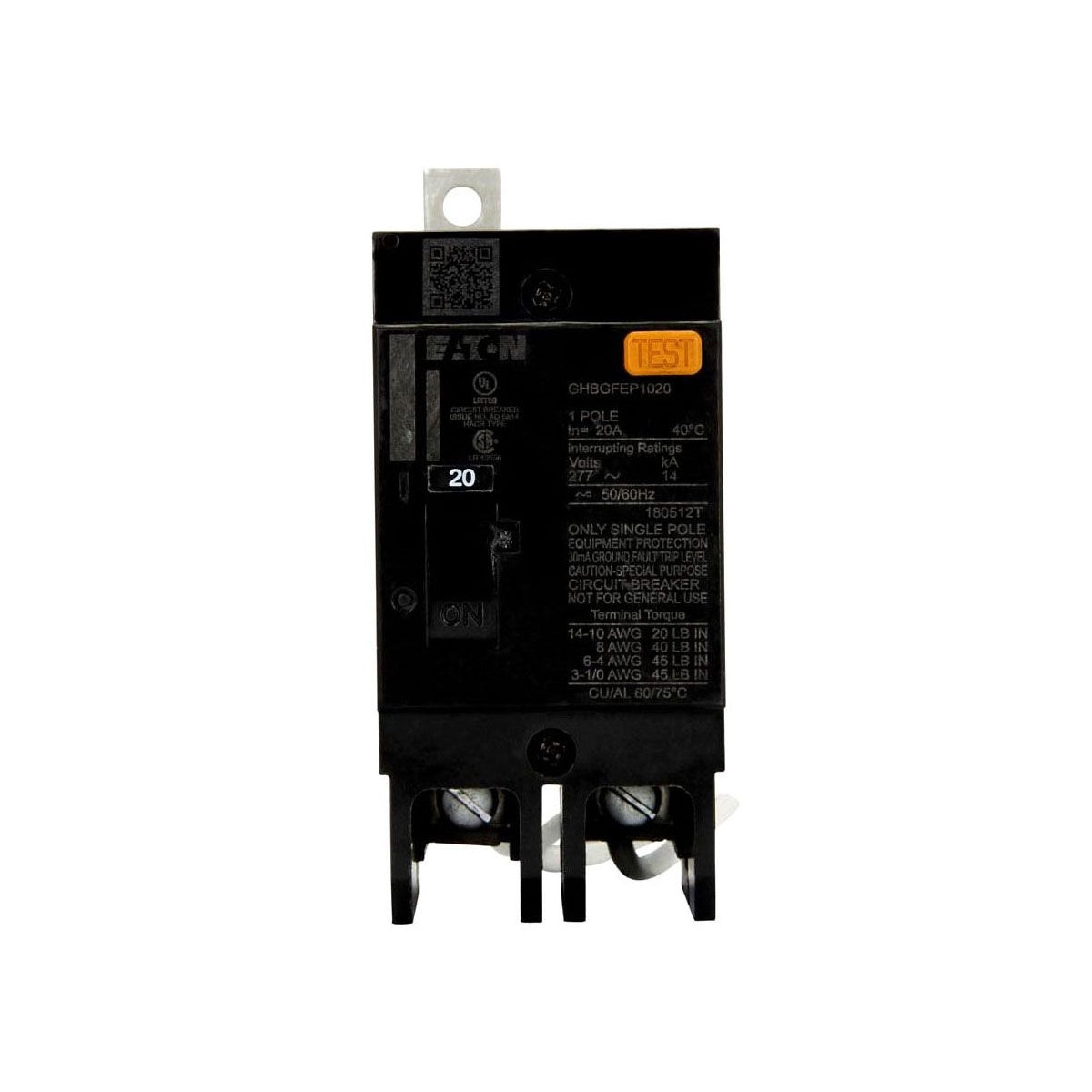

Eaton Series C complete molded case circuit breaker, G-frame, GHB – Molded Case Circuit Breaker

The Eaton Series C G-frame GHB molded case circuit breaker is designed for reliable electrical protection in commercial and industrial applications. This fixed thermal, fixed magnetic trip type breaker provides overcurrent protection with a single-pole configuration rated for 30 amperes. Suitable for use at 480Y/277 Vac and 125/250 Vdc, it offers a 14 kA interrupting capacity at 277 Vac, 50/60 Hz, ensuring safe operation in various electrical distribution systems. Eaton, a trusted electrical distributor and switchgear supplier, delivers this compact and robust breaker ideal for wire and cable protection and lighting solutions.

Specifications

• Manufacturer: Eaton
• Manufacturer Part #: GHBGFEP1030
• Frame: G
• Circuit Breaker Type: GHB
• Amperage: 30 amperes
• Voltage Rating: 480Y/277 Vac, 125/250 Vdc
• Interrupting Capacity: 14 kAIC at 277 Vac
• Frequency: 50 hertz
• Poles: Single-pole
• Dimensions (HxWxL): 4 in x 1 in x 2.63 in
• Product Weight: 1.45 lb
• UPC: 786679067444

Features

• Fixed thermal and fixed magnetic trip unit for consistent overcurrent protection
• Compact design with a narrow 1-inch width for space-saving panel installations
• UL and CSA certified for North American electrical standards
• Reliable performance for branch circuit protection in lighting and power distribution
• Compatible with Eaton’s Series C molded case circuit breaker family and accessories
