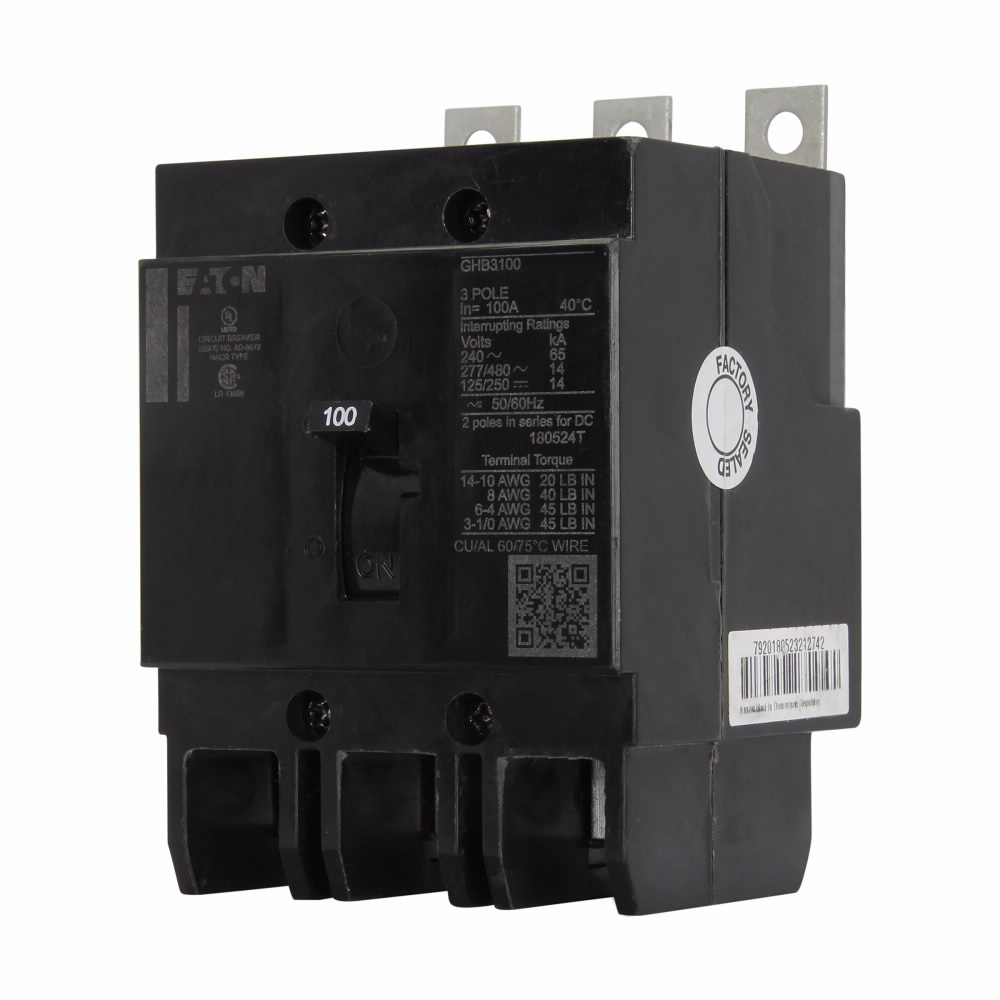

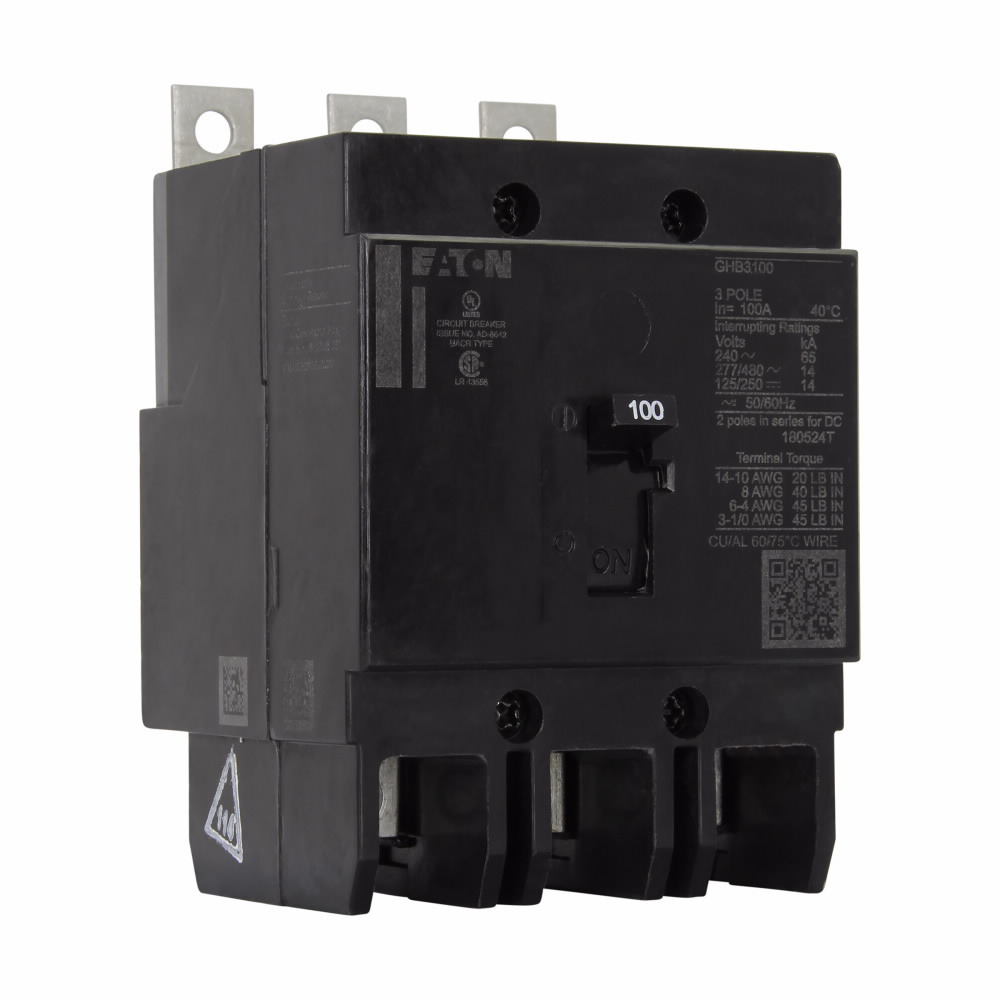

Eaton Series C Complete Molded Case Circuit Breaker GHB – Electrical Protection

The Eaton Series C complete molded case circuit breaker, G-frame, GHB type, is designed for industrial and commercial electrical distribution applications. This three-pole, fixed thermal and fixed magnetic trip breaker provides reliable overload and short-circuit protection for electrical circuits up to 70 amperes at 480Y/277 Vac and 125/250 Vdc, operating at 50/60 Hz. It is suitable for use by electrical distributors, lighting solutions providers, wire and cable installers, and switchgear suppliers requiring robust circuit protection.

Specifications

• Manufacturer: Eaton
• Manufacturer Part #: GHB3070
• Circuit Breaker Type: GHB
• Frame: G
• Poles: Three-pole
• Amperage: 70 amperes
• Voltage Rating: 480Y/277 Vac, 125/250 Vdc
• Frequency: 50 hertz
• Interrupt Rating: 65 kiloamps
• Dimensions (W x H x L): 3 in x 4 in x 2.63 in
• Product Weight: 2.0 lbs

Features

• Fixed thermal and fixed magnetic trip type for consistent circuit protection
• Compact G-frame design suitable for panel installations requiring space efficiency
• Three-pole configuration supports balanced three-phase circuit protection
• High interrupt rating of 65 kA enhances safety in high fault current environments
• Compatible with Eaton Series C accessories and switchgear components
