Eaton Series C Complete Molded Case Circuit Breaker – Electrical Distributor and Switchgear Supplier

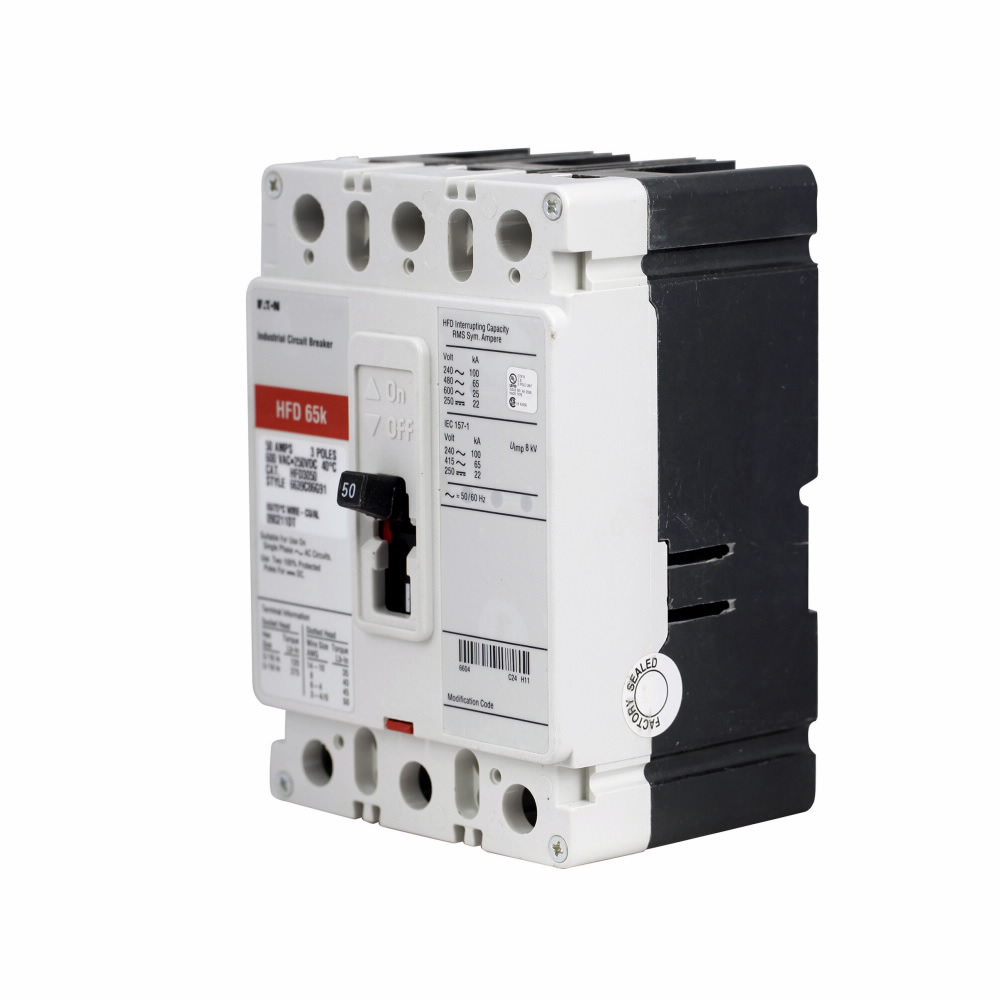

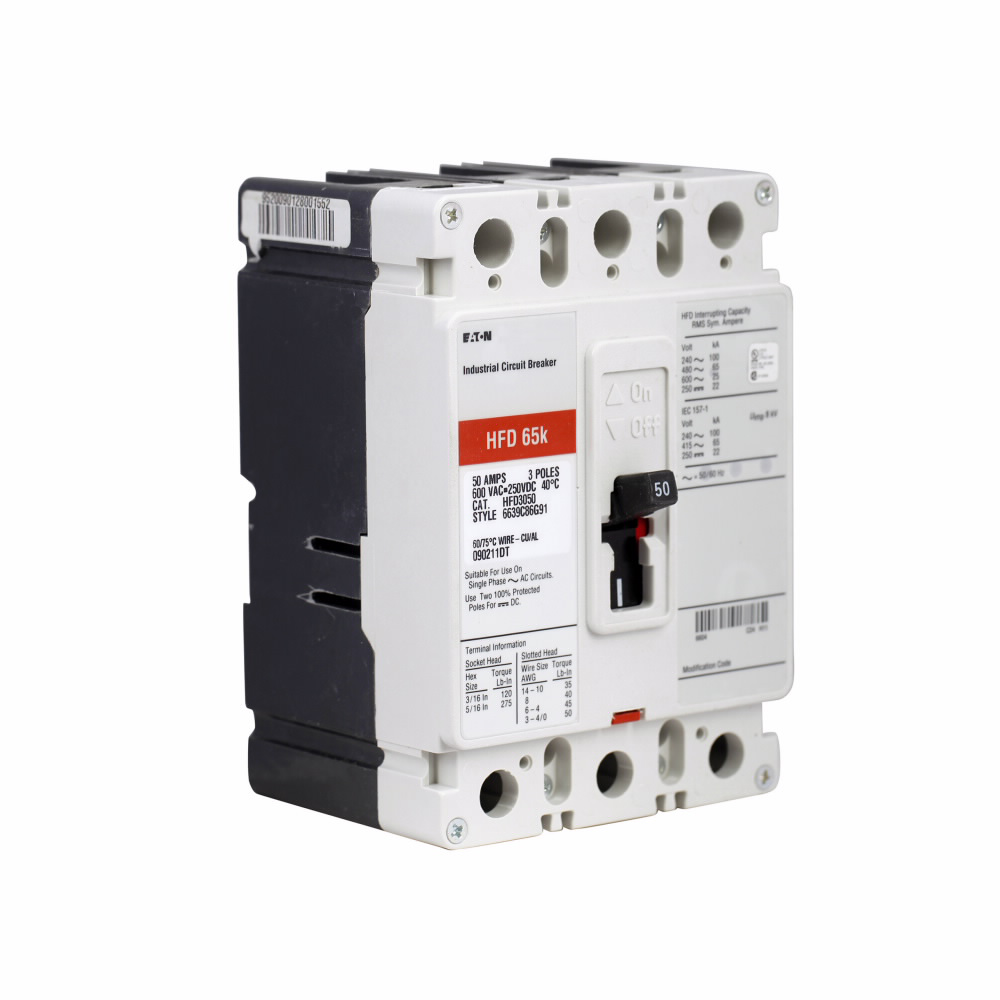

The Eaton Series C complete molded case circuit breaker is a robust electrical protection device designed for industrial and commercial applications. It serves as a reliable component for electrical distributors and lighting solutions, ensuring circuit protection and control in wire and cable installations. This three-pole breaker supports both AC and DC voltages and is suitable for switchgear assemblies requiring high interrupting capacity and dependable operation.

Specifications

• Manufacturer: Eaton
• Model Name: Series C complete molded case circuit breaker
• Frame Type: F-Frame
• Circuit Breaker Type: HFD (Fixed thermal, fixed magnetic trip)
• Poles: Three-pole
• Amperage Rating: 70 amperes
• Voltage Rating: 600 Vac, 250 Vdc
• Interrupt Rating: 100 kAIC at 240 Vac, 65 kAIC at 480 Vac
• Frequency: 50/60 Hz
• Dimensions (WxHxL): 4.13 in x 6 in x 3.38 in
• Product Weight: 4.62 lbs
• Manufacturer Part Number: HFD3070L
• Line and Load Rated

Features

• Fixed thermal and fixed magnetic trip for reliable circuit protection
• High interrupting capacity suitable for industrial electrical distribution
• Designed for ease of integration within lighting solutions and wire and cable systems
• Compatible with Eaton’s StrandAble terminals for secure connections with fine strand and rigid wire (refer to Eaton.com/circuitprotection for details)
• Supports local and remote switching capability with optional motor operators for automated control (see Eaton motor operator documentation)
• UL and CSA listed, CE marked for safety and compliance

Downloads and Links

• Eaton Motor Operator Brochure (PDF) – Details on local and remote switching options
• StrandAble Terminals Brochure (PDF) – Information on wiring terminals compatible with the circuit breaker
• Eaton Circuit Protection Website – Product support, technical data, and additional resources
