Eaton Series C Complete Molded Case Circuit Breaker – Circuit Protection Solutions

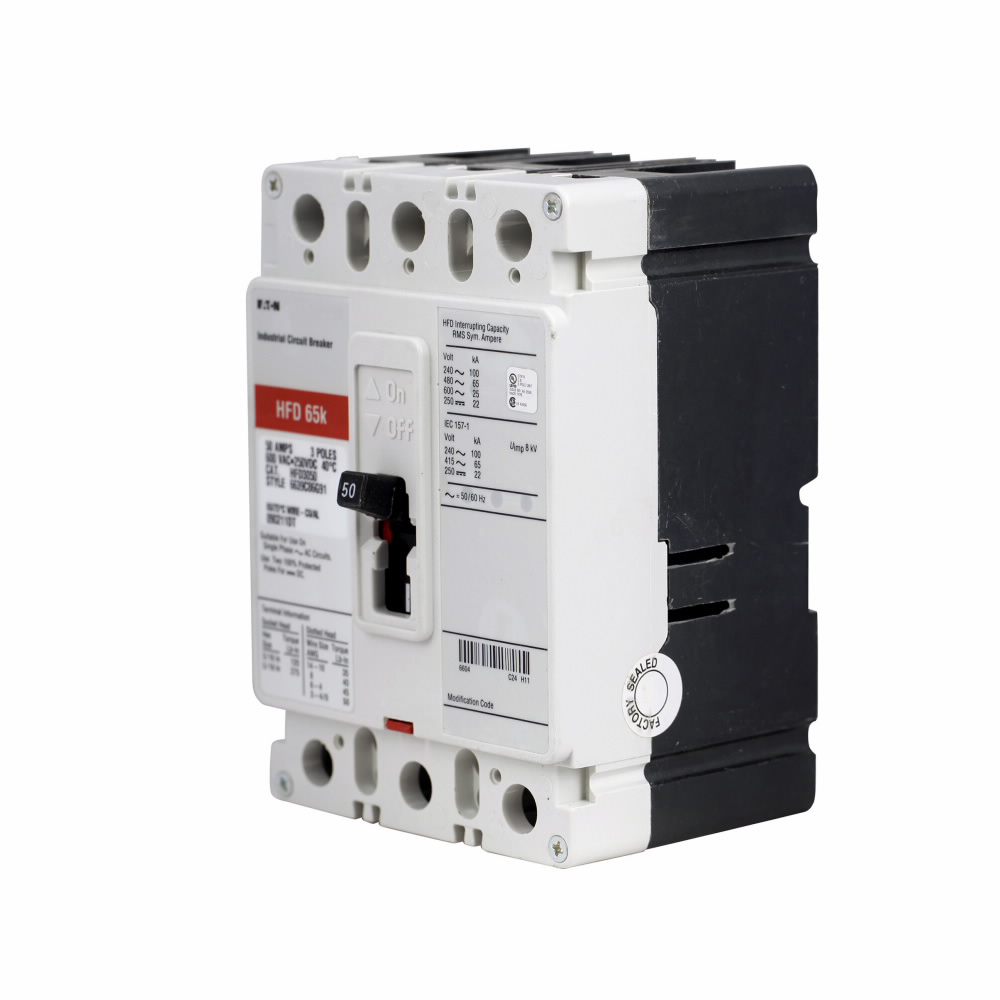

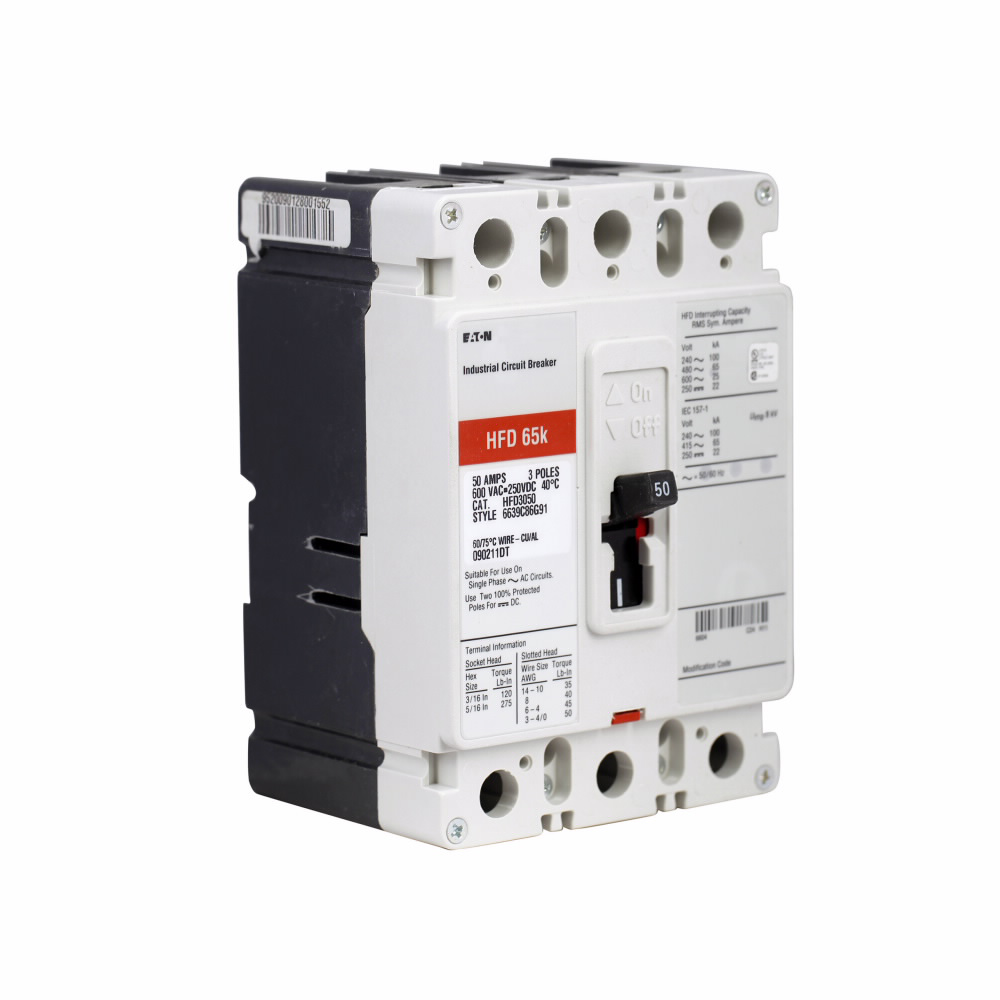

The Eaton Series C complete molded case circuit breaker, F-frame, HFD type, is designed for reliable circuit protection in industrial and commercial electrical distribution systems. This three-pole breaker supports 60 amperes and operates at 600 Vac and 250 Vdc, making it suitable for a range of applications requiring robust protection. It is an essential component for electrical distributors, lighting solutions providers, wire and cable systems, and switchgear suppliers requiring high interrupting capacity and dependable circuit protection.

Specifications

• Manufacturer: Eaton
• Manufacturer Part #: HFD3060L
• Circuit Breaker Type: HFD
• Frame: F
• Amperage: 60 amperes
• Voltage Rating: 600 Vac, 250 Vdc
• Interrupt Rating: 65 kiloamps (kAIC) at 480 Vac
• Frequency: 50/60 Hz
• Poles: Three-pole
• Dimensions (W x H x L): 4.13 in x 6 in x 3.38 in
• Product Weight: 4.5 lbs

Features

• Fixed thermal and fixed magnetic trip type for reliable protection
• Line and load connections for flexible installation
• High interrupting capacity of 100 kAIC at 240 Vac and 65 kAIC at 480 Vac
• Factory sealed to ensure safety and performance
• Compliant with UL489 and IEC 157-1 standards for molded case circuit breakers
• Suitable for use on single-phase AC circuits and DC circuits (with protected poles)
