Eaton Series C complete molded case circuit breaker, F-frame, HFD, Complete breaker, Fixed thermal, fixed magnetic trip type, Three-pole, 150A, 600 Vac, 250 Vdc, 100 kAIC at 240 Vac, 65 kAIC at 480 Vac, Line and load, 50/60 Hz
SKU: #166405
Part: #HFD3150L
UPC: 786679175217
Eaton Series C complete molded case circuit breaker, F-frame, HFD, Complete breaker, Fixed thermal, fixed magnetic trip type, Three-pole, 150A, 600 Vac, 250 Vdc, 100 kAIC at 240 Vac, 65 kAIC at 480 Vac, Line and load, 50/60 Hz
SKU: #166405
Part: #HFD3150L
UPC: 786679175217
Description

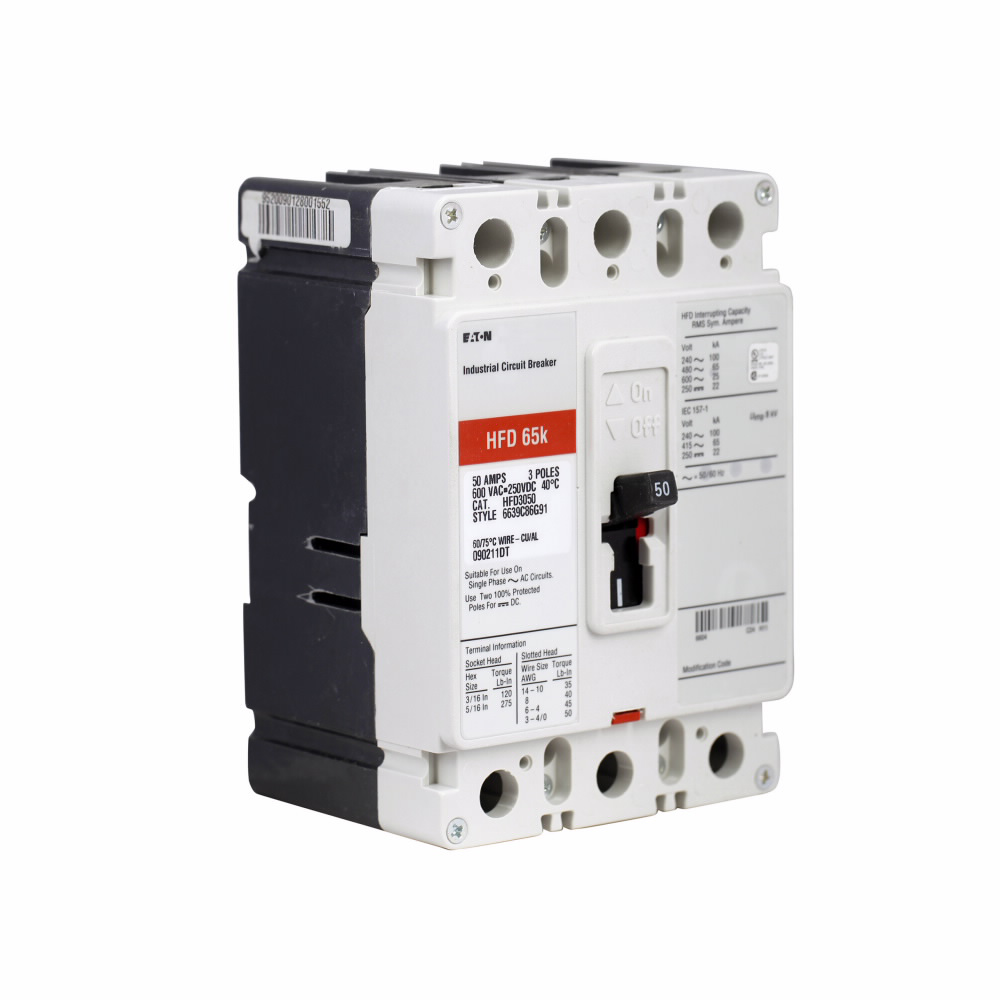

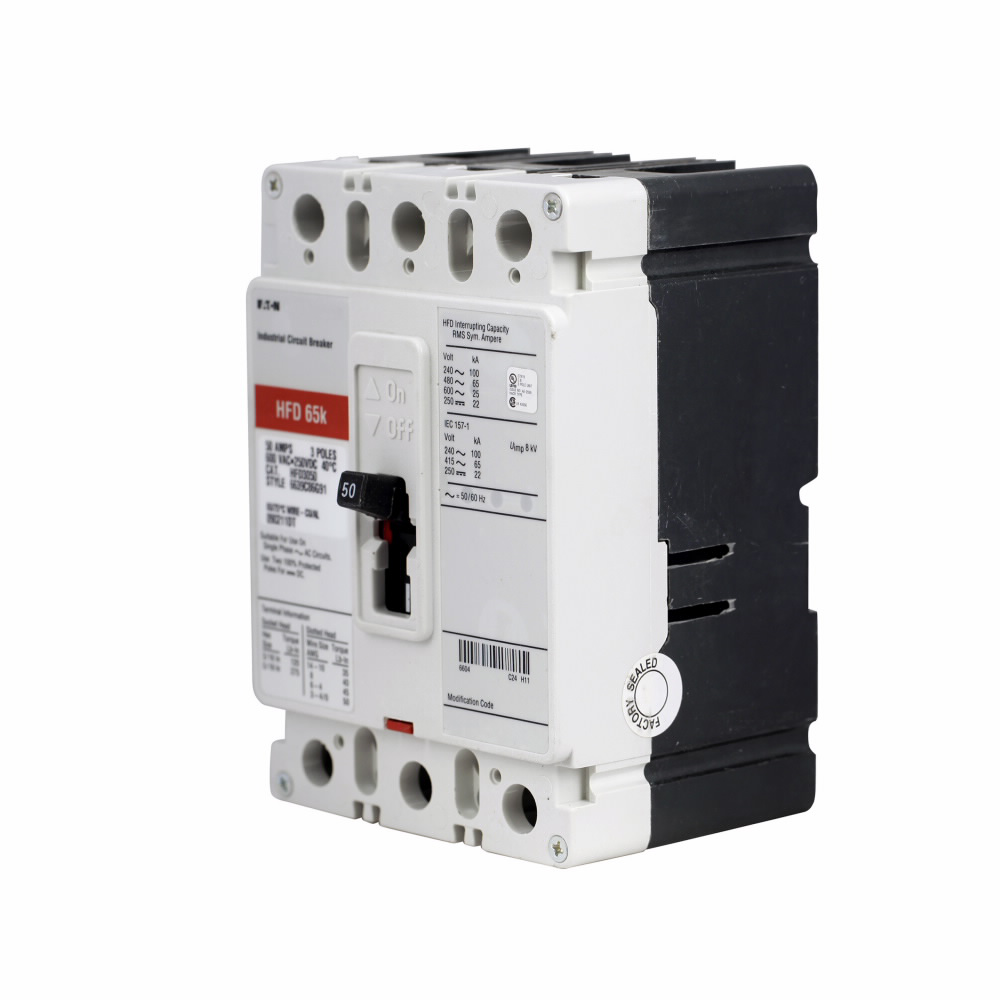

Eaton Series C Complete Molded Case Circuit Breaker – Circuit Breaker
The Eaton Series C complete molded case circuit breaker, F-frame, HFD type, is designed for reliable protection in electrical distribution systems. Suitable for use in industrial and commercial applications, this three-pole breaker supports 150 amperes with a voltage rating of 600 Vac and 250 Vdc. It features fixed thermal and magnetic trip types, providing dependable overcurrent protection. As a product from a leading electrical distributor and switchgear supplier, it integrates well into wire and cable systems requiring high interrupt ratings.
Specifications
- Manufacturer: Eaton
- Frame: F
- Circuit Breaker Type: HFD
- Amperage: 150 amperes
- Poles: Three-pole
- Voltage Rating: 600 Vac, 250 Vdc
- Interrupt Rating: 65 kiloamps at 480 Vac, 100 kiloamps at 240 Vac
- Frequency: 50/60 hertz
- Dimensions (W x H x L): 4.13 in x 4.13 in x 3.38 in
- Product Weight: 4.35 lbs
- Manufacturer Catalog Number: HFD3150L
Features
- Fixed thermal and fixed magnetic trip type for precise protection
- Line and load connections for flexible installation
- High interrupting capacity suitable for industrial power distribution
- Compact F-frame design for space-efficient panel layouts
