Eaton Series C complete molded case circuit breaker, F-frame, FDC, Complete breaker, Fixed thermal, fixed magnetic trip type, Three-pole, 50A, 600 Vac, 250 Vdc, 200 kAIC at 240 Vac, 100 kAIC at 480 Vac, Line and load, 50/60 Hz
SKU: #165432
Part: #FDC3050L
UPC: 786679450086
Eaton Series C complete molded case circuit breaker, F-frame, FDC, Complete breaker, Fixed thermal, fixed magnetic trip type, Three-pole, 50A, 600 Vac, 250 Vdc, 200 kAIC at 240 Vac, 100 kAIC at 480 Vac, Line and load, 50/60 Hz
SKU: #165432
Part: #FDC3050L
UPC: 786679450086
Next day delivery
Description

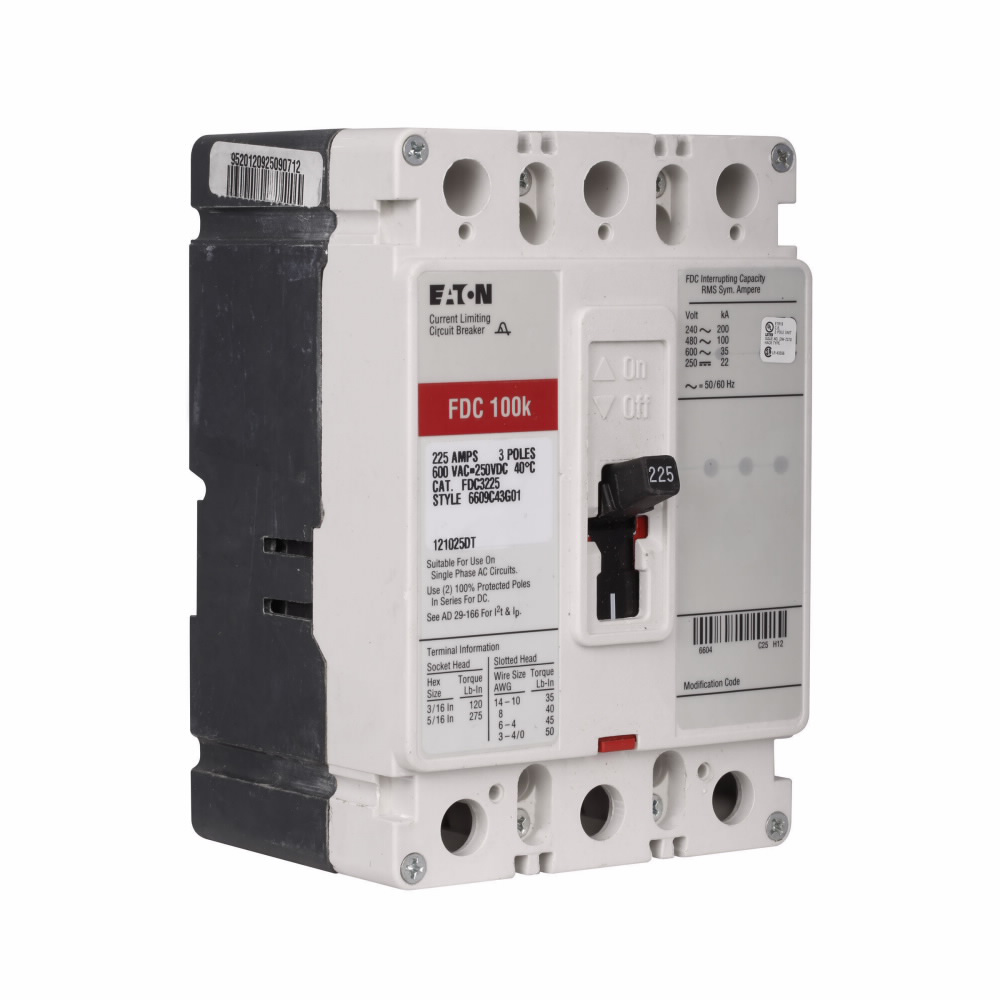

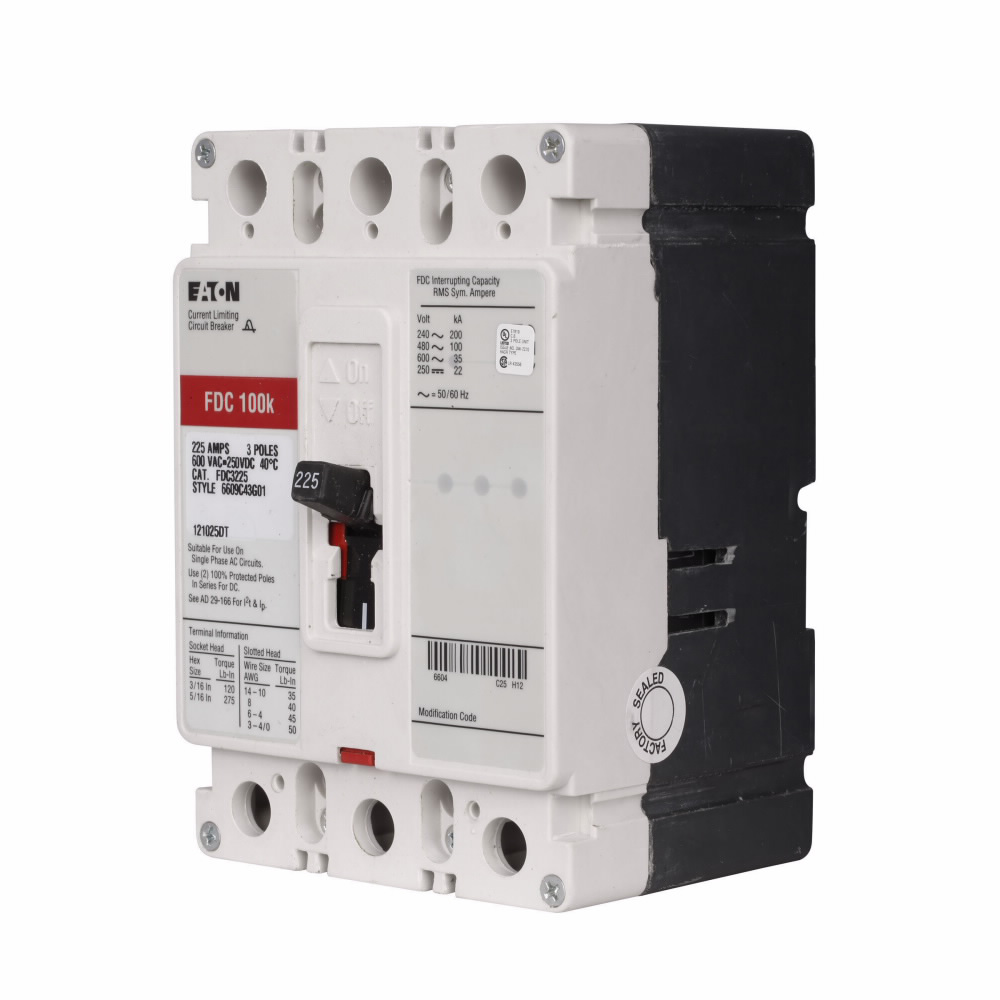

Eaton Series C Complete Molded Case Circuit Breaker - FDC Type
The Eaton Series C complete molded case circuit breaker, F-frame, FDC type, is designed for reliable branch circuit and motor protection in electrical distribution systems. This three-pole breaker provides fixed thermal and fixed magnetic trip functionality, suitable for electrical distributors and switchgear suppliers requiring robust protection at 50 amperes, supporting 600 Vac and 250 Vdc systems. It offers high interrupting capacity and is engineered to safeguard connected equipment from overloads and short circuits.
Specifications
- Manufacturer: Eaton
- Type: FDC (Complete Breaker)
- Frame: F
- Poles: Three-pole
- Amperage: 50 amperes
- Voltage Rating: 600 Vac, 250 Vdc
- Interrupting Capacity: 200 kAIC at 240 Vac, 100 kAIC at 480 Vac
- Frequency: 50/60 Hz (50 Hz specified)
- Dimensions (W x H x L): 4.13 in x 6 in x 3.38 in
- Product Weight: 5.0 lbs
- Manufacturer Part Number: FDC3050L
- UPC: 786679450086
Features
- Fixed thermal and fixed magnetic trip type for consistent protection
- Line and load capable for flexible installation
- High interrupting rating suitable for industrial and commercial applications
- Compact F-frame design optimized for space efficiency in panelboards
