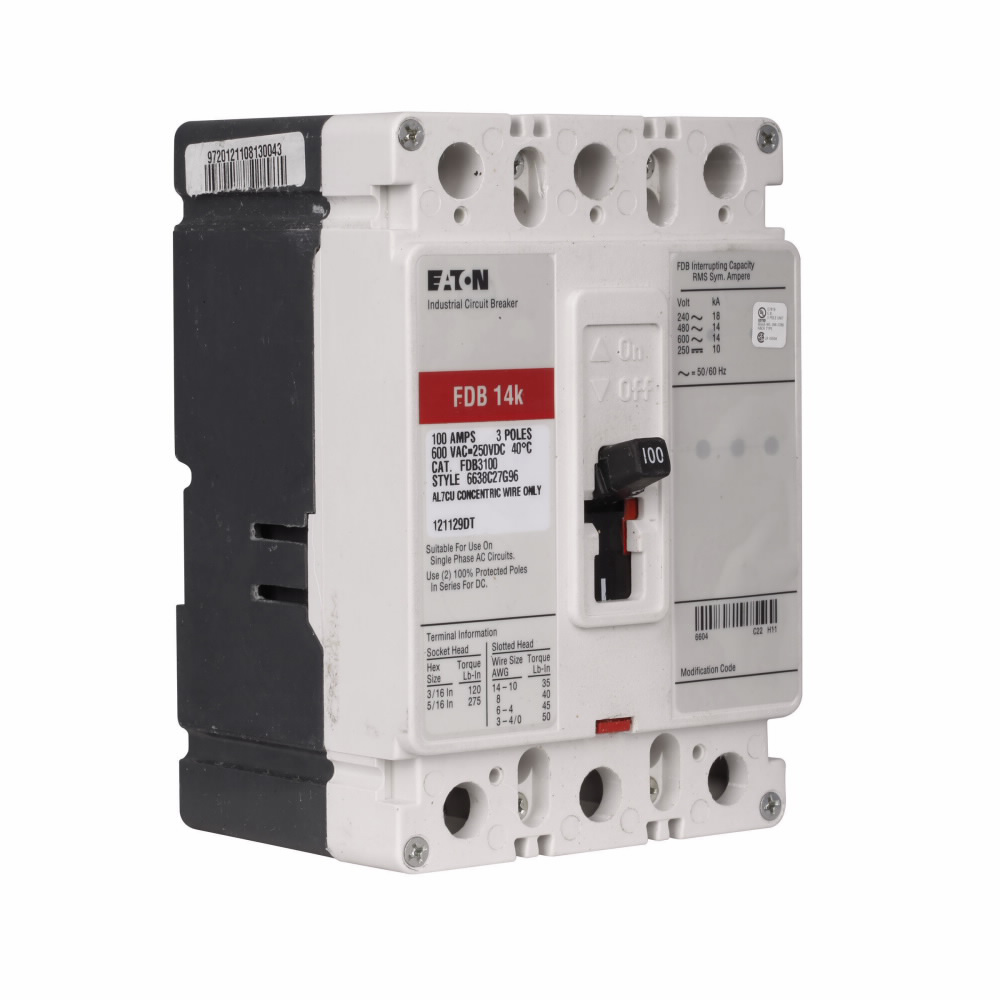

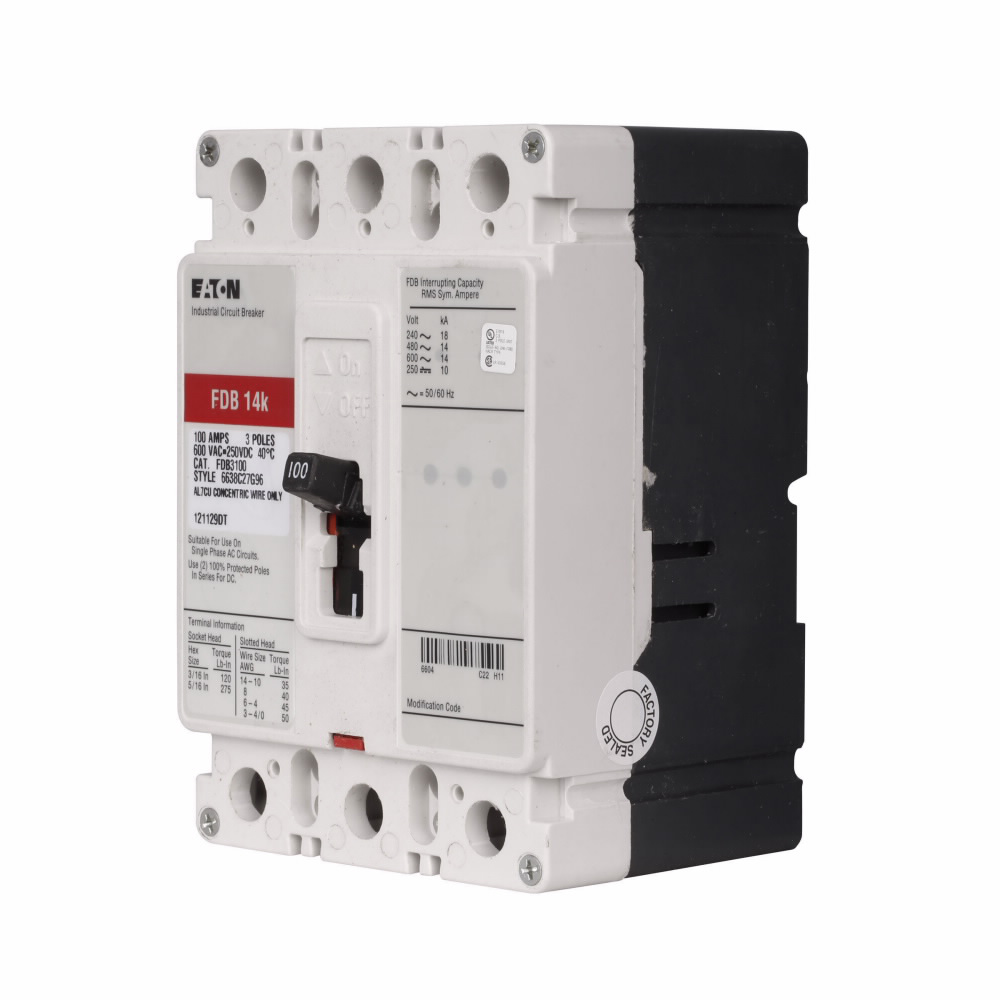

Eaton Series C Complete Molded Case Circuit Breaker - 20A Electrical Protection

The Eaton Series C complete molded case circuit breaker, F-frame, model FDB3020L, is designed for industrial electrical distribution and control applications. This three-pole breaker provides reliable overcurrent protection with fixed thermal and magnetic trip types, suitable for both AC and DC circuits. It supports line and load connections and operates at 50/60 Hz frequency, making it compatible with a wide range of electrical systems. Ideal for electrical distributors and switchgear suppliers, this breaker ensures safe and efficient circuit protection in commercial and industrial environments.

Specifications

• Manufacturer: Eaton
• Manufacturer Part #: FDB3020L
• Frame: F
• Poles: 3
• Amperage: 20 amperes
• Voltage Rating: 600 Vac, 250 Vdc
• Interrupt Rating: 18 kiloamps at 240 Vac, 14 kiloamps at 480 Vac
• Frequency: 50 hertz
• Dimensions (H x W x L): 6 in x 4.13 in x 3.38 in
• Product Weight: 5 lbs
• Trip Type: Fixed thermal, fixed magnetic
• Catalog Number: 165350
• UPC: 786679305850

Features

• Fixed thermal and magnetic trip for consistent and reliable circuit protection
• Three-pole design suitable for three-phase electrical systems
• Line and load connections for flexible installation
• High interrupting capacity ensures safe interruption of fault currents
• Compact F-frame size saves panel space
• Compatible with multi-wire terminals for efficient load-side terminations (refer to Eaton application guidelines)
