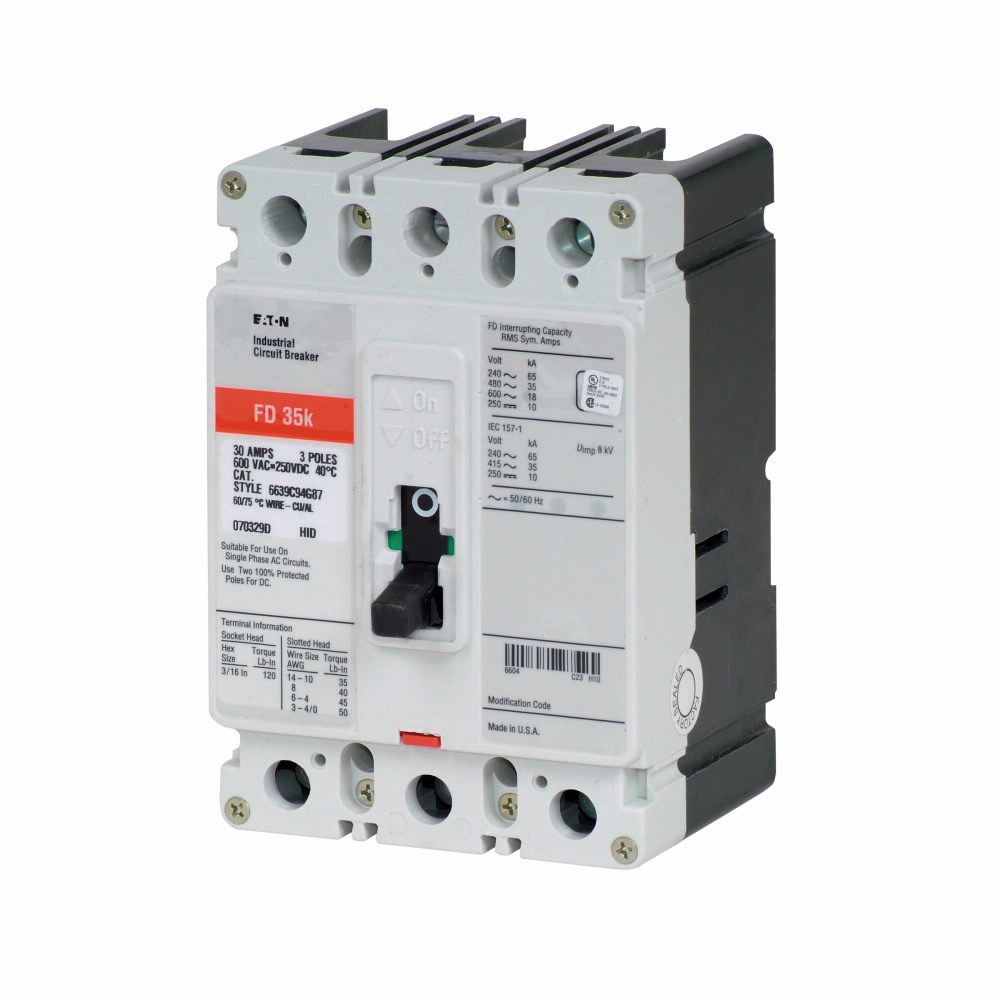

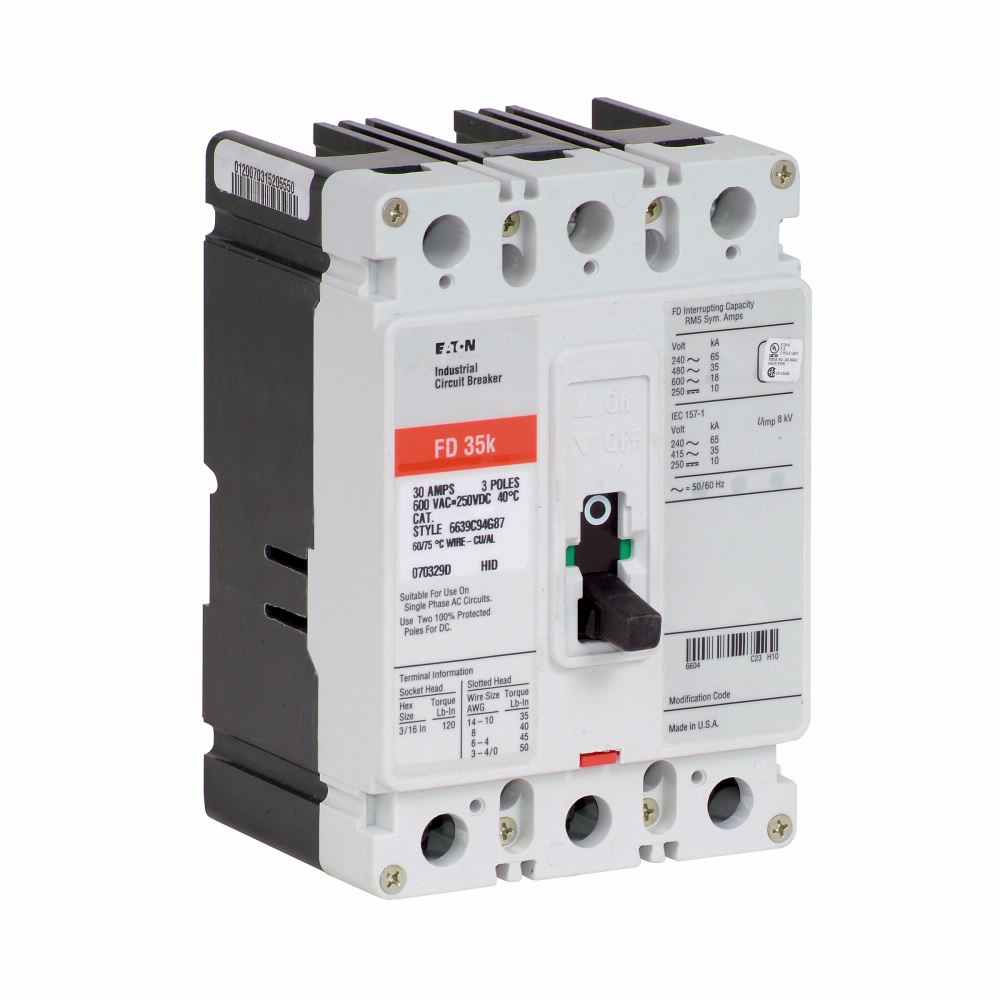

Eaton Series C complete molded case circuit breaker, F-frame, FD, Complete breaker, Fixed thermal, Fixed magnetic trip type, Three-pole, 40 A, 600 Vac, 250 Vdc, Load side, 50/60 Hz
SKU: #165189
Part: #FD3040
UPC: 786679305676
Eaton Series C complete molded case circuit breaker, F-frame, FD, Complete breaker, Fixed thermal, Fixed magnetic trip type, Three-pole, 40 A, 600 Vac, 250 Vdc, Load side, 50/60 Hz
SKU: #165189
Part: #FD3040
UPC: 786679305676
Description
Eaton Series C Complete Molded Case Circuit Breaker - Circuit Protection
The Eaton Series C complete molded case circuit breaker is designed for industrial and commercial electrical distribution applications. This F-frame, FD type breaker features fixed thermal and fixed magnetic trip types, providing reliable overcurrent protection for three-pole circuits rated at 40 amperes. It is suitable for use in electrical distribution systems operating at 600 Vac and 250 Vdc, supporting load-side installation with 50/60 Hz frequency compatibility. Ideal for electrical distributors and switchgear suppliers, this breaker ensures circuit protection in lighting solutions, wire and cable systems, and power distribution panels.
Specifications
- Manufacturer: B-Line
- Manufacturer Part #: FD3040
- Amperage: 40 amperes
- Voltage Rating: 600 Vac, 250 Vdc
- Number of Poles: Three-pole
- Interrupt Rating: 65 kiloamps
- Frequency: 50/60 Hz
- Dimensions (W x H x L): 4.13 in x 6 in x 3.38 in
- Product Weight: 4.5 lbs
- UPC: 786679305676
Features
- Complete breaker with fixed thermal and magnetic trip types for consistent protection
- F-frame construction suitable for industrial circuit applications
- Compatible with load-side installation for flexible wiring configurations
- Designed to meet rigorous electrical distribution requirements
- Supports 50/60 Hz frequency for broad application use
