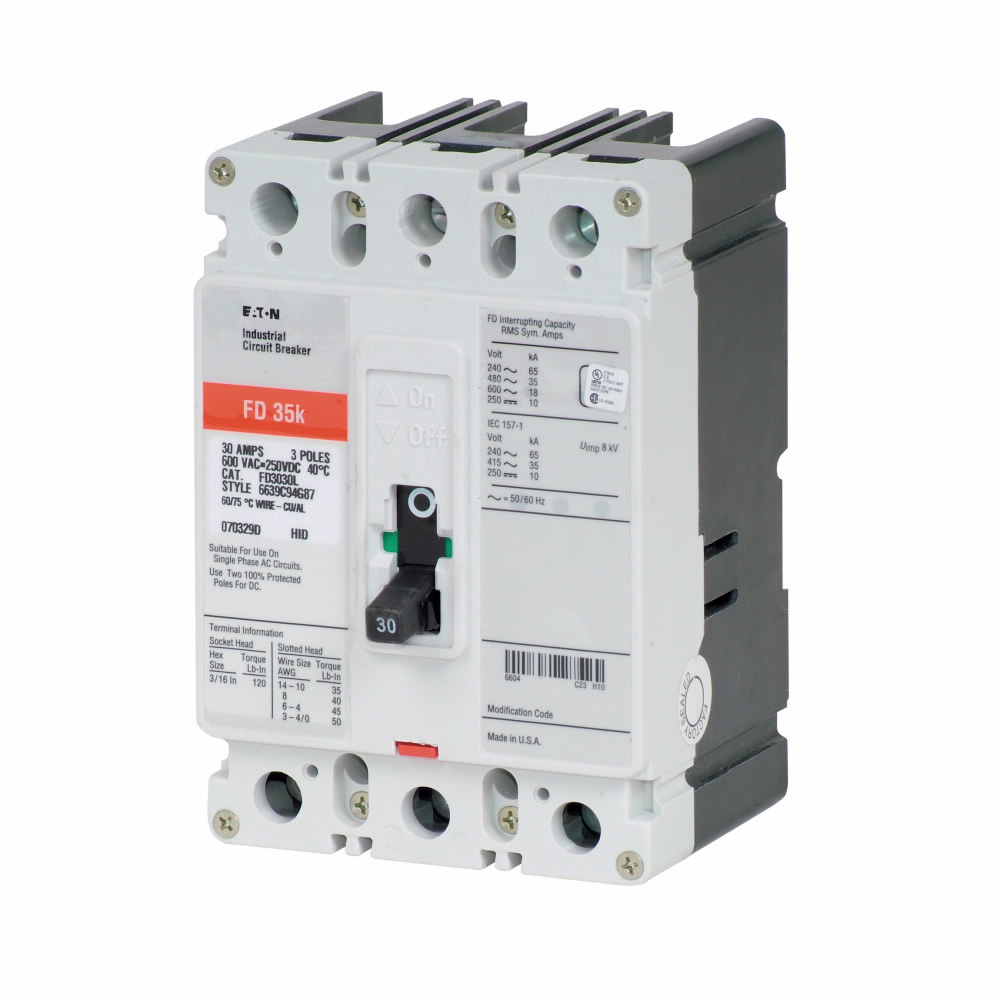

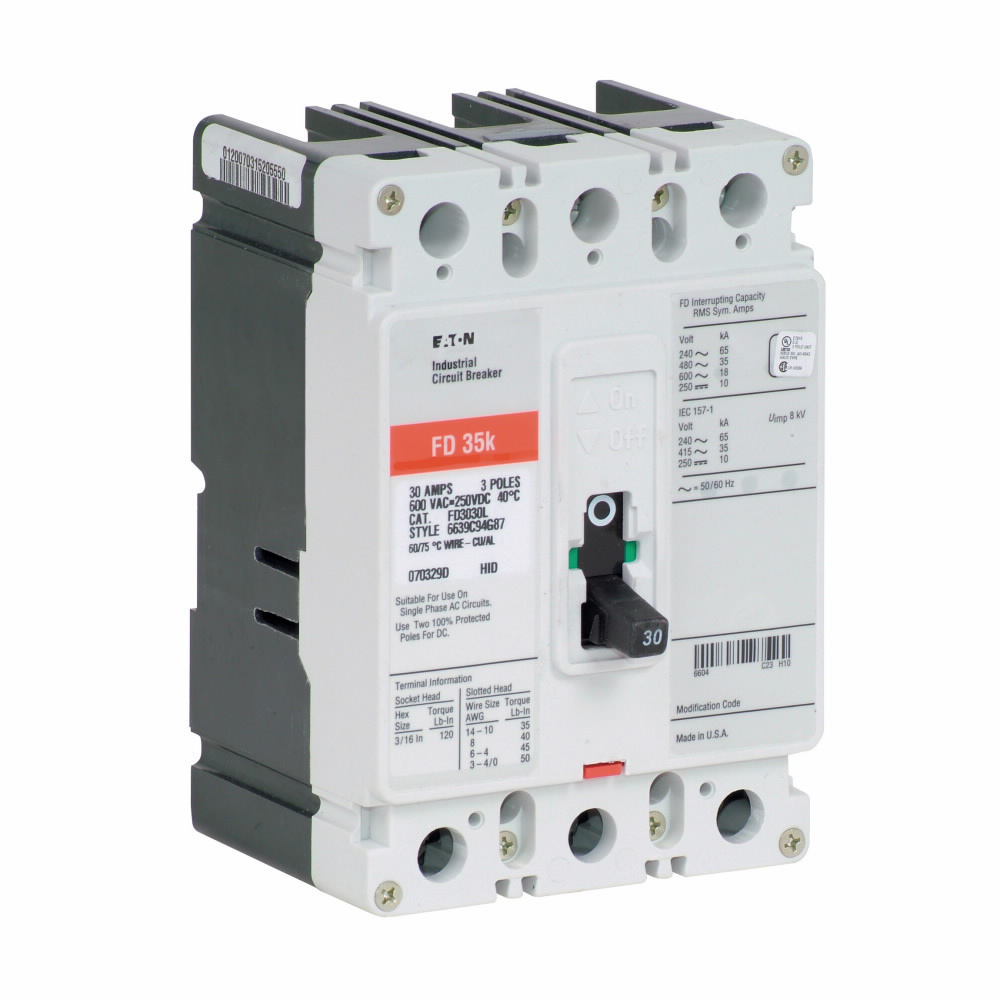

Eaton Series C Complete Molded Case Circuit Breaker - Industrial Electrical Protection

The Eaton Series C complete molded case circuit breaker is designed for industrial electrical protection applications. This F-frame, FD type breaker offers fixed thermal and fixed magnetic trip capabilities, providing reliable overcurrent protection for three-pole electrical systems. Rated for 30 amperes at 600 Vac and 250 Vdc, it supports line and load configurations at 50/60 Hz frequency, making it suitable for a variety of electrical distribution and control applications. As a product from a leading electrical distributor and switchgear supplier, this breaker is engineered to meet rigorous performance standards in lighting solutions, wire and cable management, and industrial power distribution.

Specifications

• Manufacturer: Eaton
• Model Number: FD3030L
• Frame: F
• Amperage: 30 amperes
• Poles: Three-pole
• Voltage Rating: 600 Vac, 250 Vdc
• Interrupting Capacity: 65 kAIC at 240 Vac, 35 kAIC at 480 Vac
• Frequency: 50/60 Hz
• Dimensions (HxWxD): 6 in x 4.13 in x 3.38 in
• Product Weight: 5 lbs
• UPC: 786679305669

Features

• Fixed thermal and fixed magnetic trip type for consistent overcurrent protection
• Complete breaker with line and load terminals for versatile installation
• High interrupting capacity suitable for industrial and commercial electrical systems
• Compact F-frame design for efficient panel space utilization
• Factory-tested and UL-listed for safety and compliance
