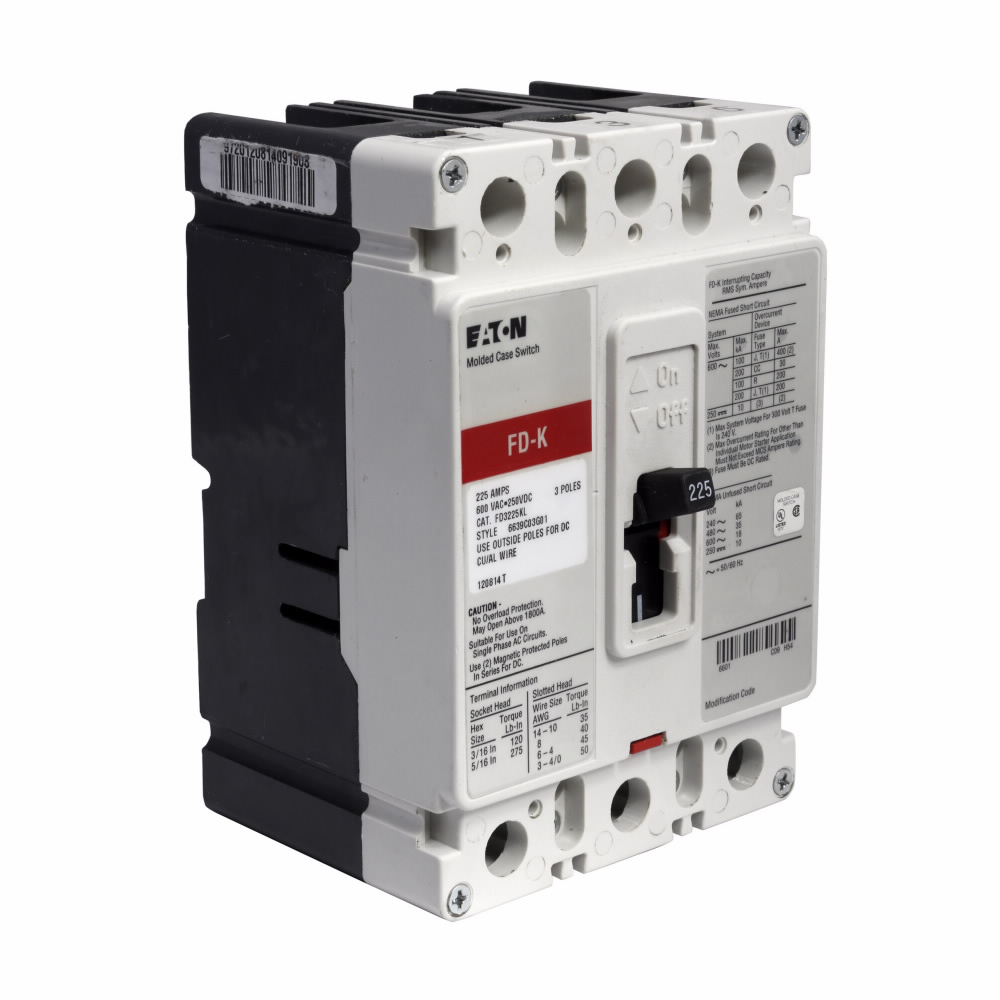

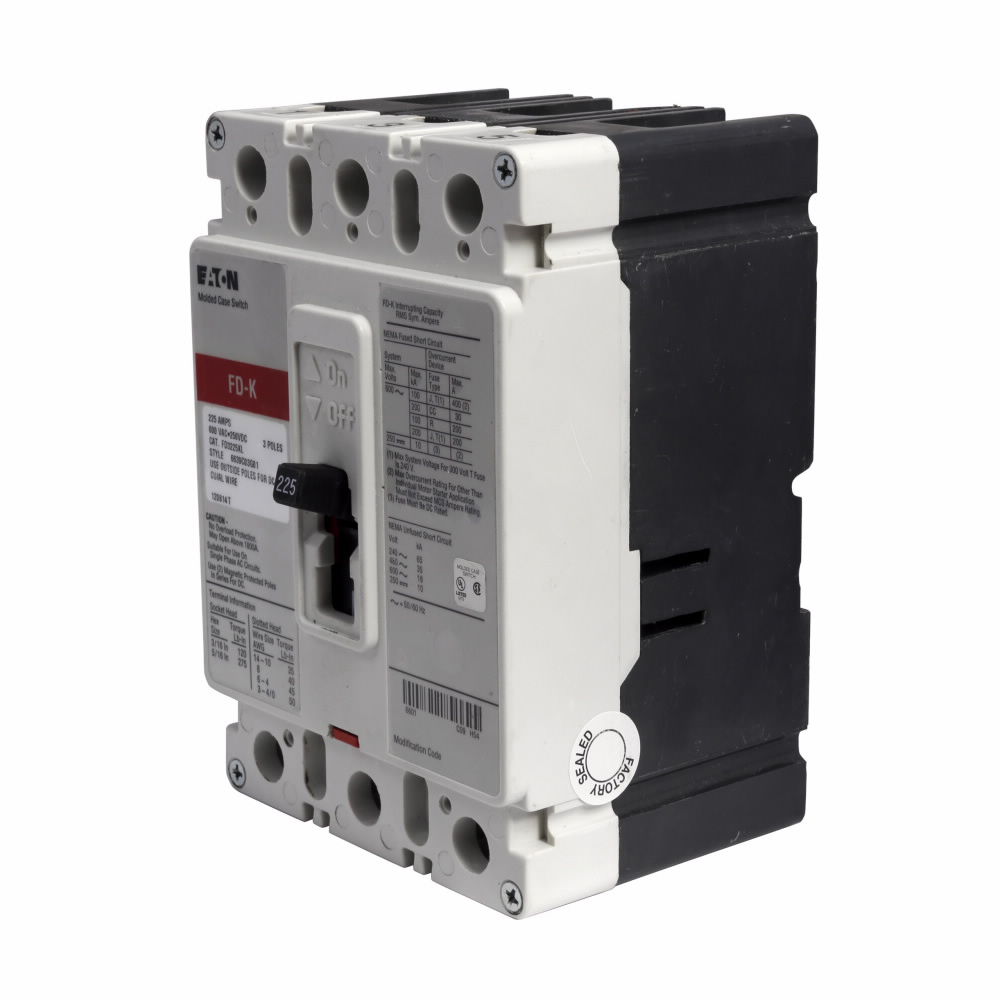

Eaton Series C complete molded case circuit breaker, F-frame, FD, Complete breaker, Fixed thermal, Fixed magnetic trip type, Three-pole, 225 A, 600 Vac, 250 Vdc, 65 kAIC at 240 Vac, 35 kAIC at 480 Vac
SKU: #165316
Part: #FD3225
UPC: 786679015360
Eaton Series C complete molded case circuit breaker, F-frame, FD, Complete breaker, Fixed thermal, Fixed magnetic trip type, Three-pole, 225 A, 600 Vac, 250 Vdc, 65 kAIC at 240 Vac, 35 kAIC at 480 Vac
SKU: #165316
Part: #FD3225
UPC: 786679015360
Description
Eaton Series C complete molded case circuit breaker F-frame 225A
The Eaton Series C complete molded case circuit breaker, F-frame, FD type, is a three-pole electrical protection device designed for industrial and commercial electrical distribution systems. It provides fixed thermal and fixed magnetic trip protection for circuits rated up to 225 amperes. This breaker is suitable for use in wire and cable installations requiring reliable overcurrent protection at voltages up to 600 Vac and 250 Vdc. It is compatible with switchgear assemblies and is ideal for electrical distributors and lighting solutions requiring robust circuit protection with high interrupting capacity.
Specifications
- Manufacturer: Eaton
- Manufacturer Part #: FD3225
- Frame: F
- Amperage: 225 amperes
- Poles: Three-pole
- Voltage Rating: 600 Vac, 250 Vdc
- Interrupt Rating: 65 kiloamps (kAIC) at 240 Vac, 35 kAIC at 480 Vac
- Dimensions (HxWxD): 4.13 in x 4.13 in x 3.38 in
- Product Weight: 4.35 lbs
- UPC: 786679015360
Features
- Complete breaker with fixed thermal and fixed magnetic trip type
- Molded case construction for enhanced durability and safety
- High interrupting capacity suitable for demanding electrical environments
- Designed for use in three-phase electrical systems
- Compatible with Eaton Series C switchgear and panelboards
- Fixed trip characteristics ensure consistent and reliable protection
