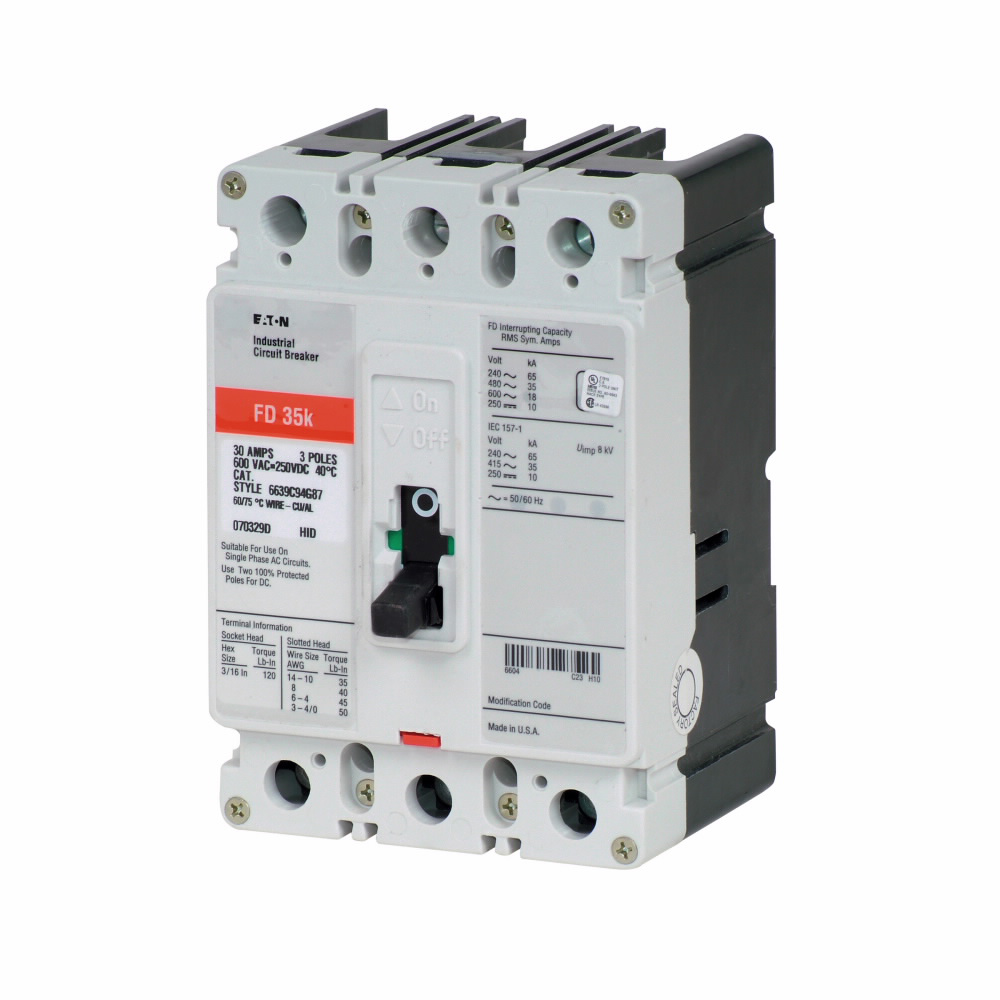

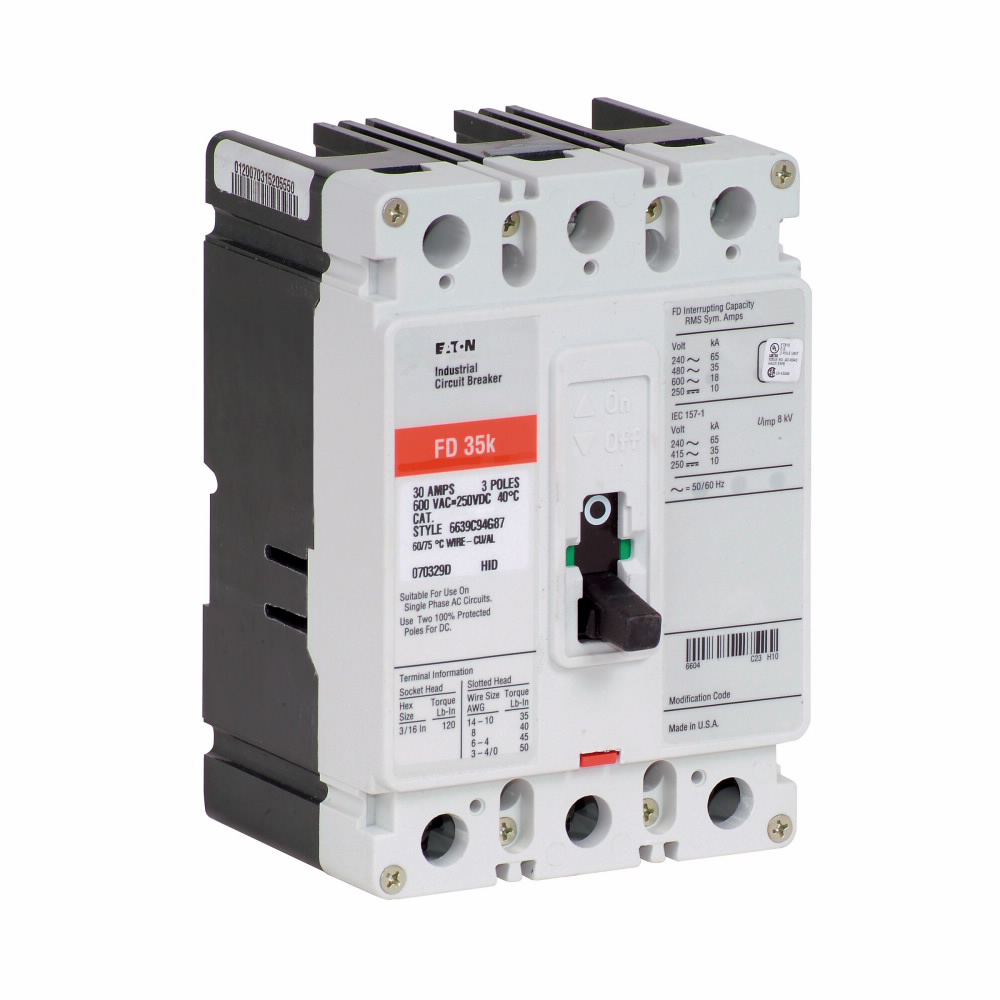

Eaton Series C Complete Molded Case Circuit Breaker - F-Frame FD 100A

The Eaton Series C complete molded case circuit breaker, F-frame FD, is designed for industrial electrical distribution and protection applications. This three-pole breaker provides fixed thermal and fixed magnetic trip protection, suitable for use in power distribution, lighting solutions, and motor control systems. Rated at 100 amperes with voltage ratings of 600 Vac and 250 Vdc, it supports 50/60 Hz frequency and is compatible with load side wiring configurations. Eaton, a trusted switchgear supplier, manufactures this breaker to meet UL489 and IEC 157-1 standards, ensuring reliable performance in commercial and industrial electrical systems.

Specifications

• Manufacturer: Eaton
• Manufacturer Part #: FD3100
• Frame: F
• Amperage: 100 amperes
• Poles: Three-pole
• Voltage Rating: 600 Vac, 250 Vdc
• Frequency: 50 hertz
• Dimensions (H x W x D): 6 in x 4.13 in x 3.38 in
• Product Weight: 4.5 lbs
• Trip Type: Fixed thermal, fixed magnetic

Features

• Complete molded case circuit breaker with integrated thermal-magnetic trip unit
• Designed for continuous current ratings up to 100A
• Suitable for load side wiring and three-pole applications
• Meets UL489 and IEC 157-1 standards for circuit breaker performance and safety
• Compatible with Eaton Series C FD frame accessories and mounting hardware
• Reliable manual operation with ON/OFF handle and PUSH-TO-TRIP button for testing
