Eaton Series C Complete Molded Case Circuit Breaker - Electrical Protection

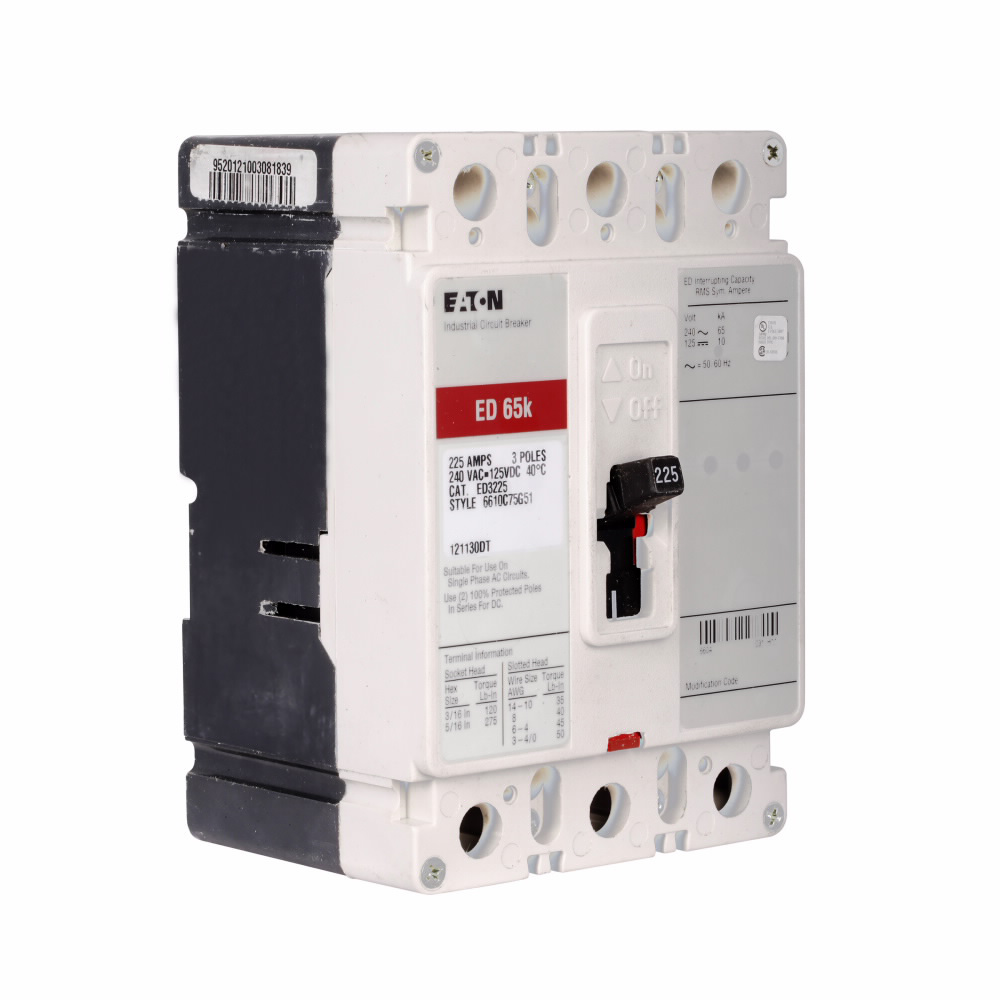

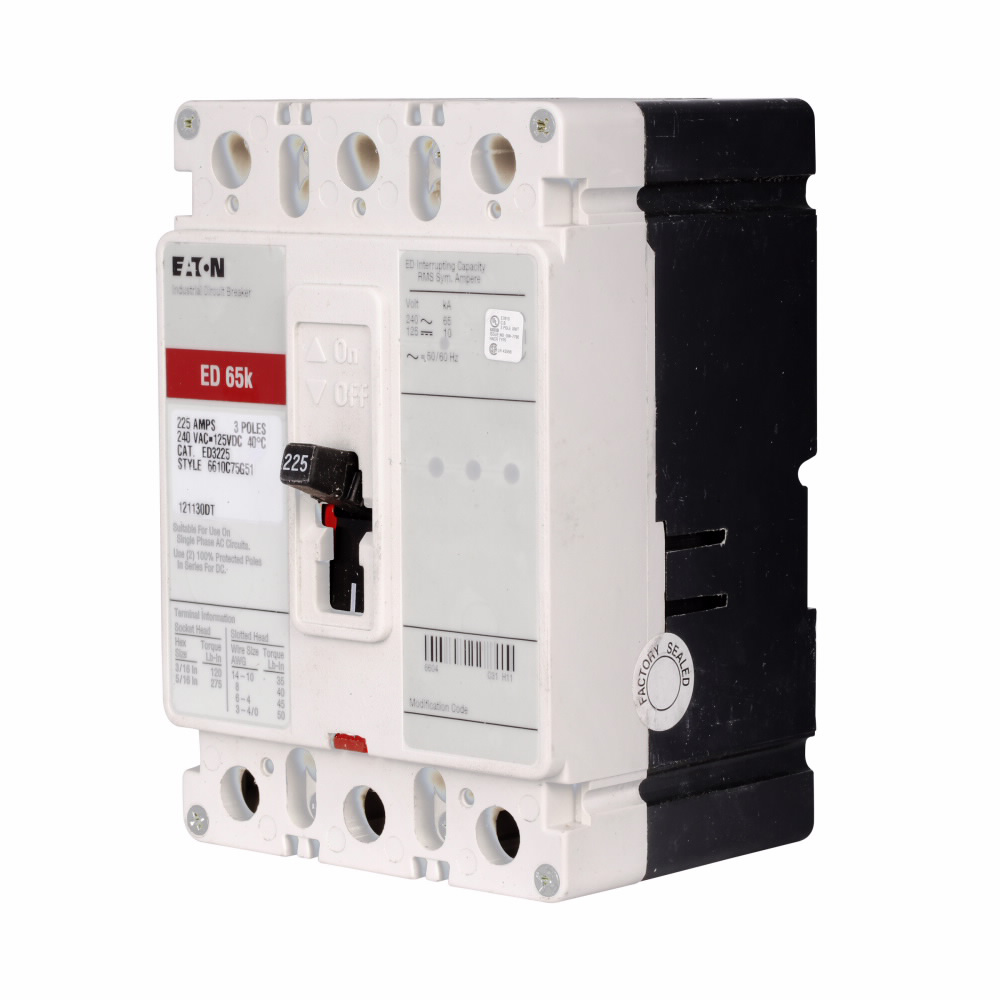

The Eaton Series C complete molded case circuit breaker, F-frame, model ED3225L, is designed for electrical distribution and protection applications. It is suitable for use in lighting solutions, wire and cable systems, and as part of switchgear assemblies. This three-pole breaker provides reliable overcurrent protection with fixed thermal and magnetic trip mechanisms, supporting both 240 Vac and 125 Vdc systems at 50/60 Hz frequency.

Specifications

• Manufacturer: Eaton
• Frame: F
• Amperage: 225 amperes
• Poles: Three-pole
• Voltage Rating: 240 Vac, 125 Vdc
• Interrupt Rating: 65 kiloamps at 240 Vac
• Frequency: 50/60 Hz
• Dimensions (H x W x D): 4.13 in x 4.13 in x 3.38 in
• Product Weight: 4.5 lbs
• Manufacturer Part Number: ED3225L
• UPC: 786679454367

Features

• Fixed thermal and fixed magnetic trip type for dependable overcurrent protection
• Line and load terminals for flexible installation
• High interrupting capacity of 65 kAIC enhances system safety and reliability
• Compact F-frame design suitable for space-constrained electrical panels
• Compatible with Eaton’s Series C product line for streamlined system integration
