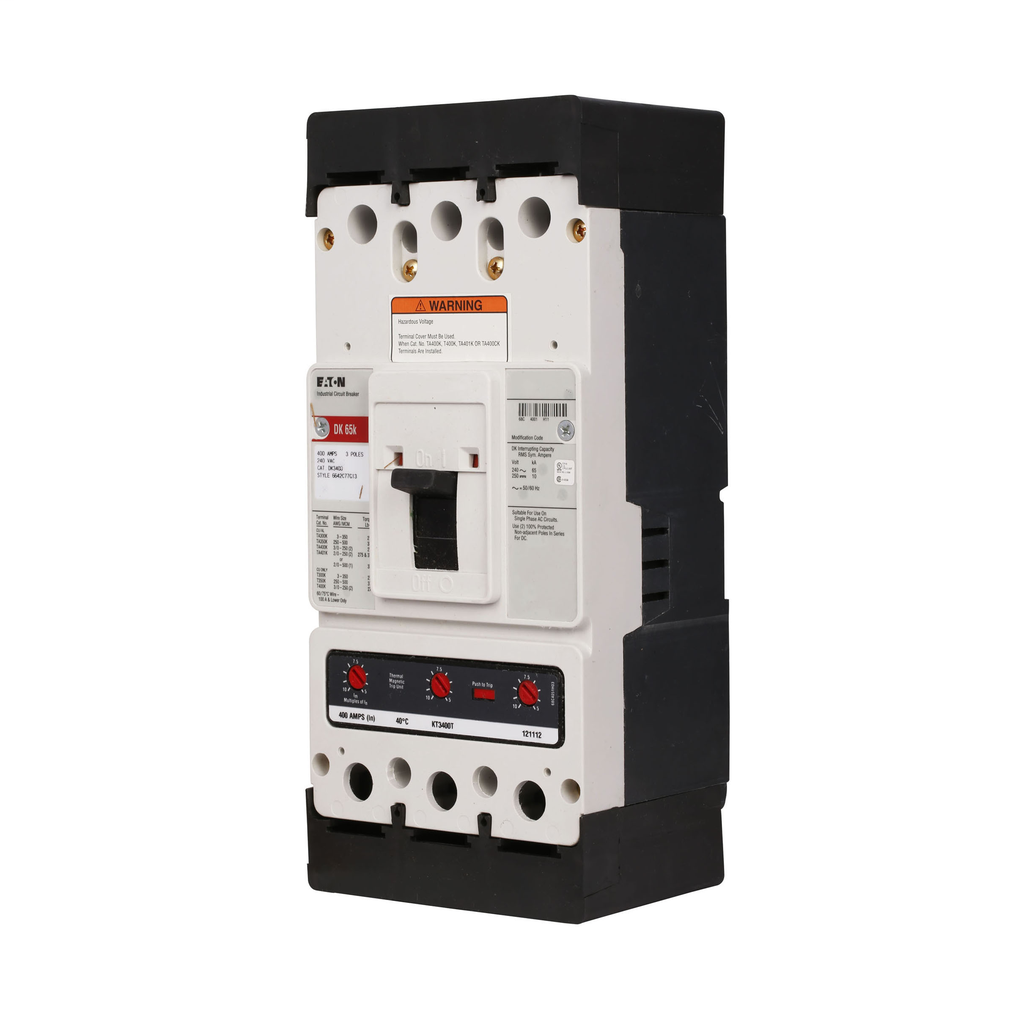

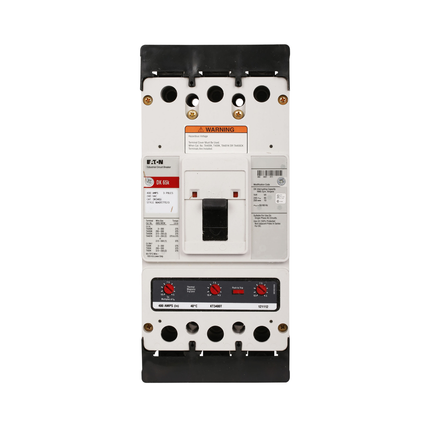

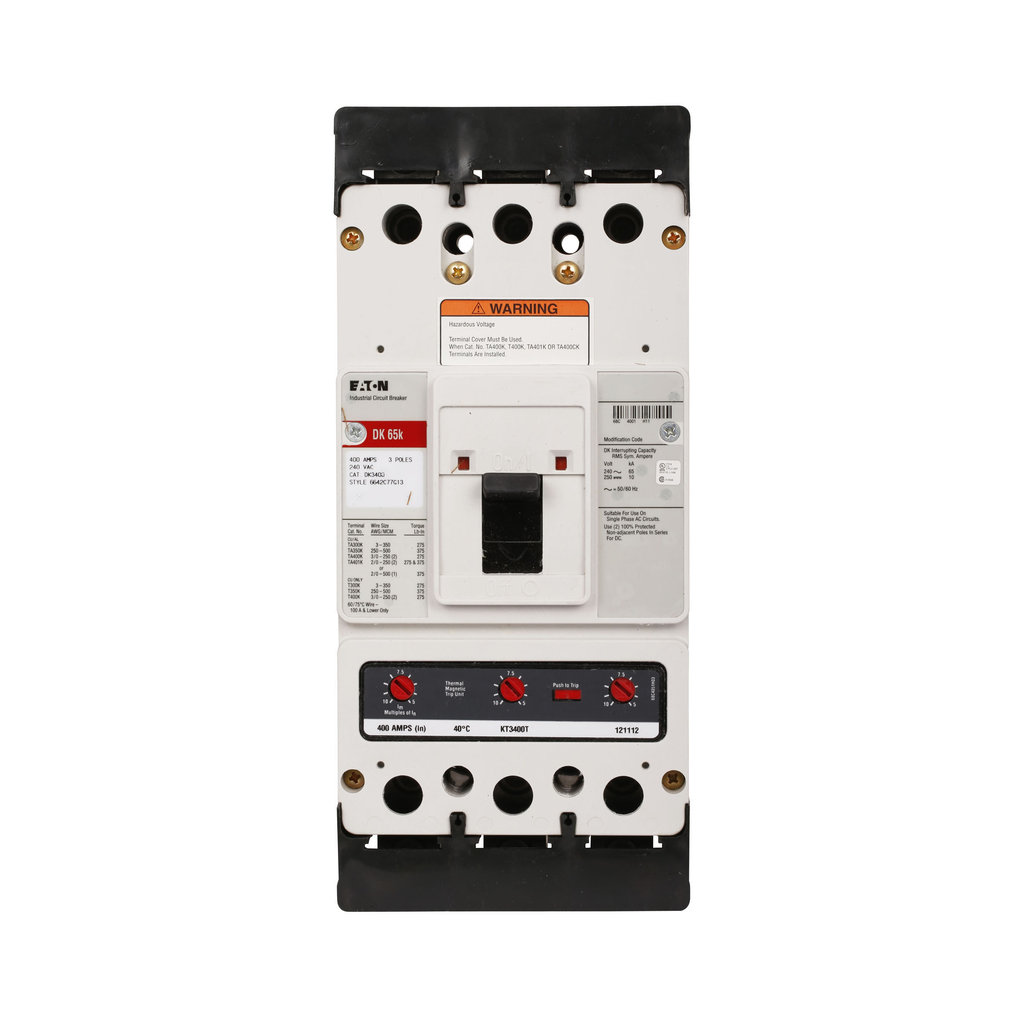

Eaton Series C complete molded case circuit breaker – Molded Case Circuit Breaker

The Eaton Series C complete molded case circuit breaker is designed for industrial and commercial electrical protection applications. This 3-pole DK-type circuit breaker, manufactured by B-Line, features a K-Frame construction and is rated for 250 amperes with a frequency range of 50-60 hertz. It provides reliable protection for electrical distribution systems, suitable for OEMs, machinery, and switchgear suppliers requiring robust wire and cable protection solutions.

Specifications

• Manufacturer: B-Line
• Type: DK Circuit Breaker
• Frame: K-Frame
• Amperage: 250 amperes
• Number of Poles: 3
• Frequency: 50-60 hertz
• Interrupt Rating: 10 kiloamps
• Manufacturer Part Number: DK3250
• Product Weight: 12 lb
• UPC: 786679044124

Features

• Complete molded case design for enhanced durability and safety
• Thermal-magnetic trip unit available with fixed or adjustable settings depending on frame size
• Compatible with field-installable accessories including auxiliary switches, shunt trips, and undervoltage releases (based on Power Defense MCCB modular accessory system)
• Suitable for 3-pole applications with 250 A continuous current rating
• Provides interrupting capacity up to 10 kA for reliable fault clearing
• Designed for use in electrical OEM, machinery OEM, and switchgear applications
• UL and CSA certified for use in North American markets
