Eaton Series C complete molded case circuit breaker - Molded Case Circuit Breakers

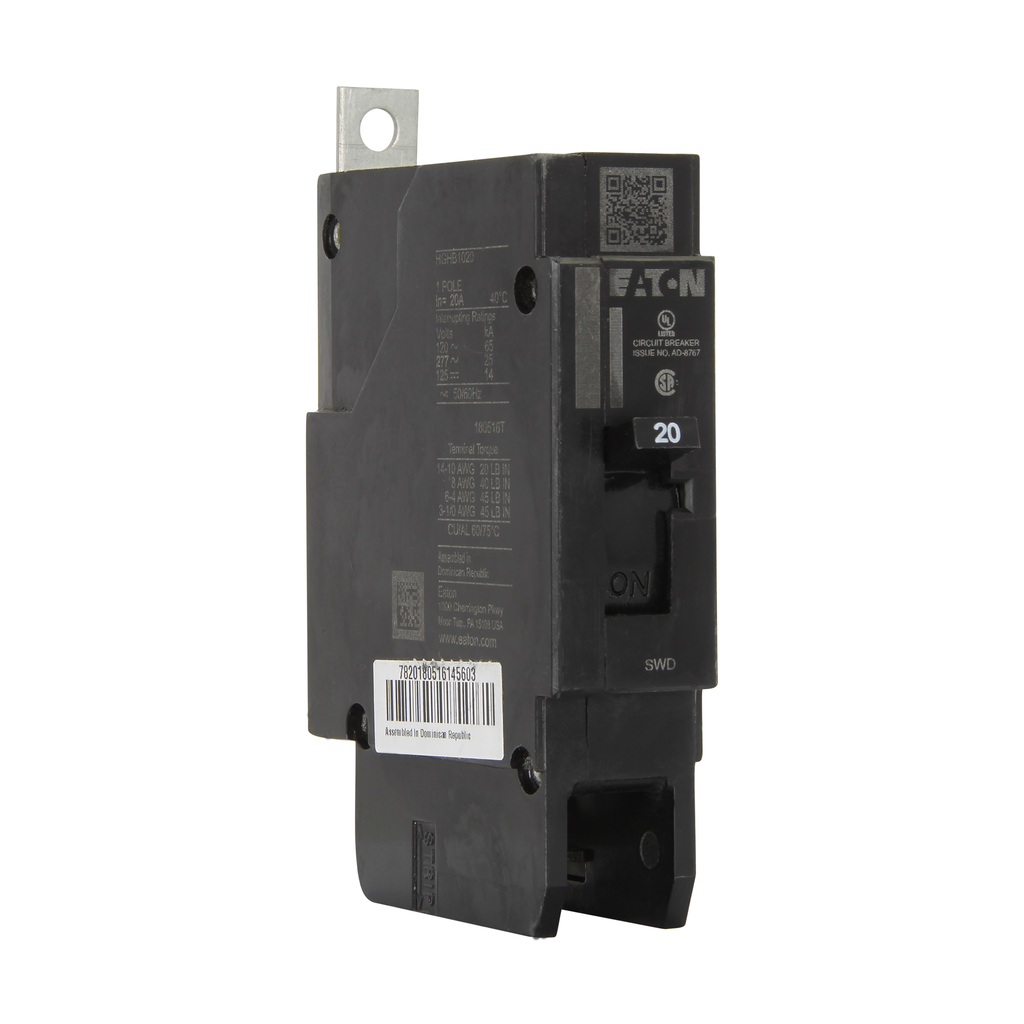

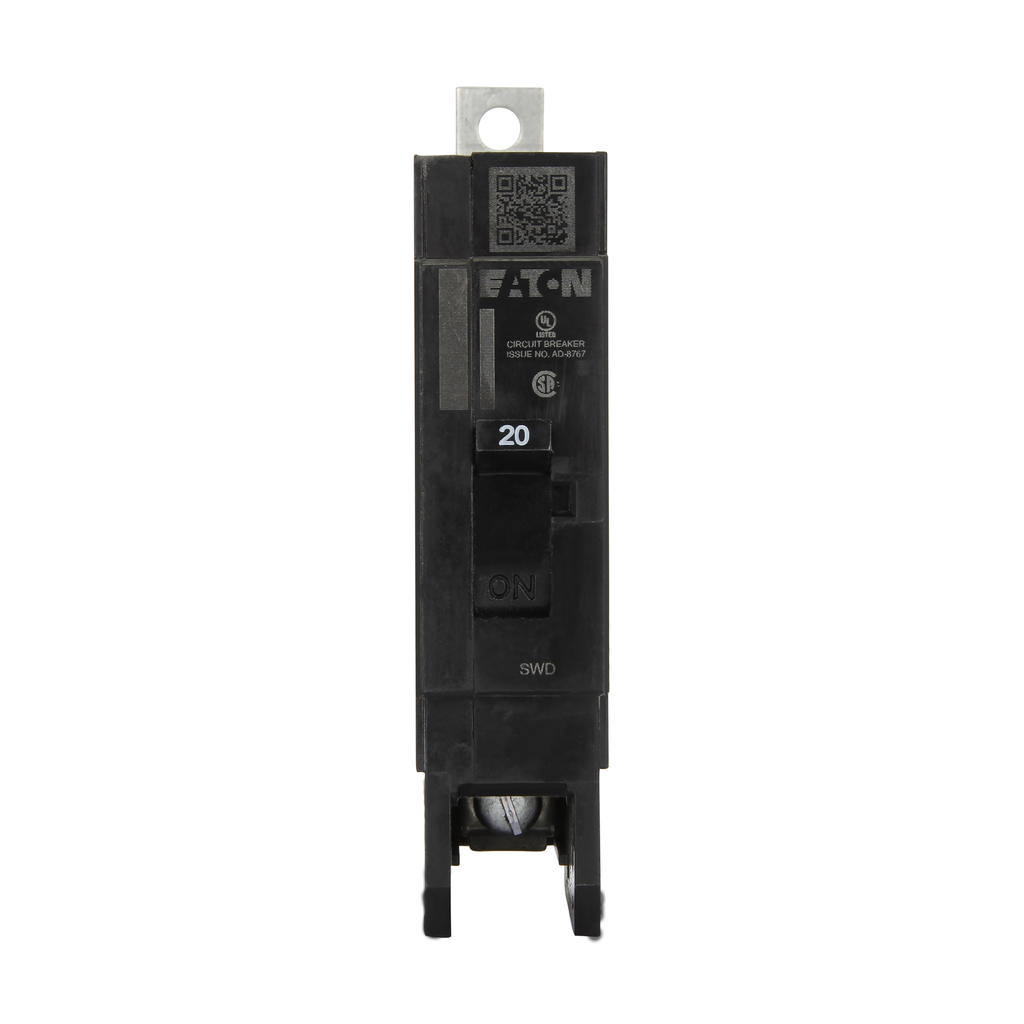

The Eaton Series C complete molded case circuit breaker, manufactured by Cutler-Hammer, is a single-pole, G-Frame GHB type circuit breaker designed for reliable electrical protection in a variety of industrial and commercial applications. It offers a 20 ampere rating and operates at frequencies of 50/60 hertz, making it suitable for standard power distribution systems. This breaker features a 14 kiloamps interrupt rating, ensuring robust protection against short circuits and overloads. Ideal for electrical distributors, lighting solutions, wire and cable systems, and switchgear suppliers, the Series C molded case circuit breaker supports efficient and safe power management.

Specifications

• Manufacturer: Cutler-Hammer
• Frame: G-Frame
• Circuit Breaker Type: GHB
• Amperage: 20 amperes
• Frequency: 50/60 hertz
• Number of Poles: 1
• Interrupt Rating: 14 kiloamps
• Manufacturer Part #: GHB1020
• Product Weight: 0.65 lbs
• UPC: 786679023624

Features

• Single-pole design for branch circuit protection
• Thermal-magnetic trip unit for reliable overload and short circuit protection
• Compact G-Frame size for space-saving panel designs
• UL and CSA listed for safety and compliance
• Suitable for use in electrical OEM and machinery OEM applications
• Compatible with Eaton Series C molded case circuit breaker accessories and trip units
