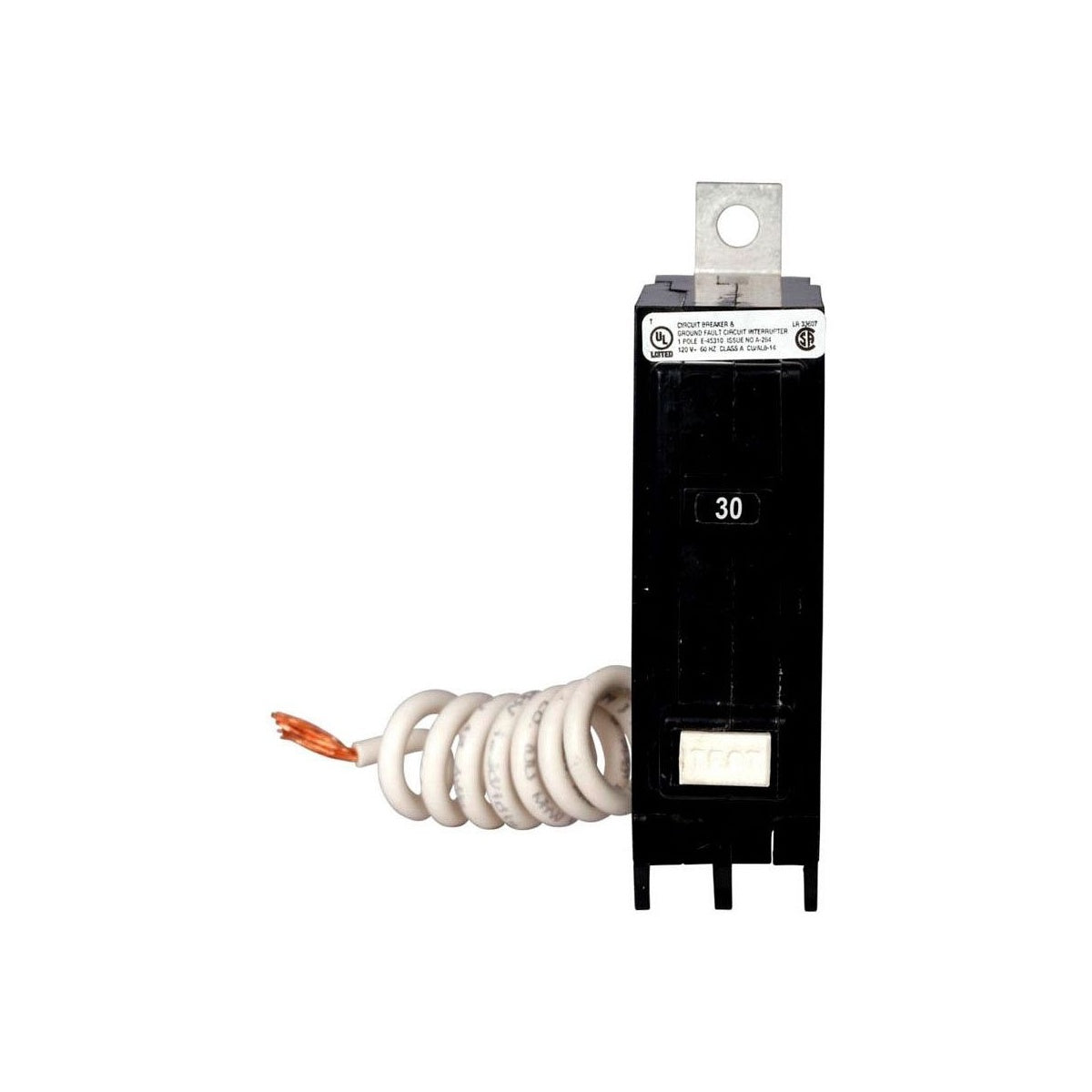

EATON QBGF1030 QUICKLAG Industrial Ground Fault Thermal-Magnetic Circuit Breaker

The Eaton QBGF1030 is a single-pole, industrial-grade ground fault thermal-magnetic circuit breaker designed for reliable protection in electrical distribution systems. It is suitable for applications requiring ground fault interruption with a 5 mA trip sensitivity, making it ideal for industrial environments where precise fault detection is critical. This circuit breaker supports electrical distributors, lighting solutions, wire and cable installations, and switchgear systems by providing effective ground fault protection and overload interruption.

Specifications

• Manufacturer Part #: QBGF1030
• Type: QUICKLAG Ground Fault Circuit Breaker
• Poles: Single-Pole
• Continuous Ampere Rating at 40°C: 30 Amps
• Interrupting Capacity: 10,000A
• Trip Sensitivity: 5 mA
• Voltage: 120 Vac
• Product Weight: 0.45 lbs
• Certifications: UL 489, UL 943
• UPC: 786679360309

Features

• Ground fault protection with Class A GFCI (5 mA trip sensitivity)
• Thermal-magnetic trip mechanism for reliable overload and short circuit protection
• Compact bolt-on design for easy installation and replacement
• Built and tested to UL 489 and UL 943 standards ensuring safety and performance
• Designed for industrial applications requiring precise ground fault detection
