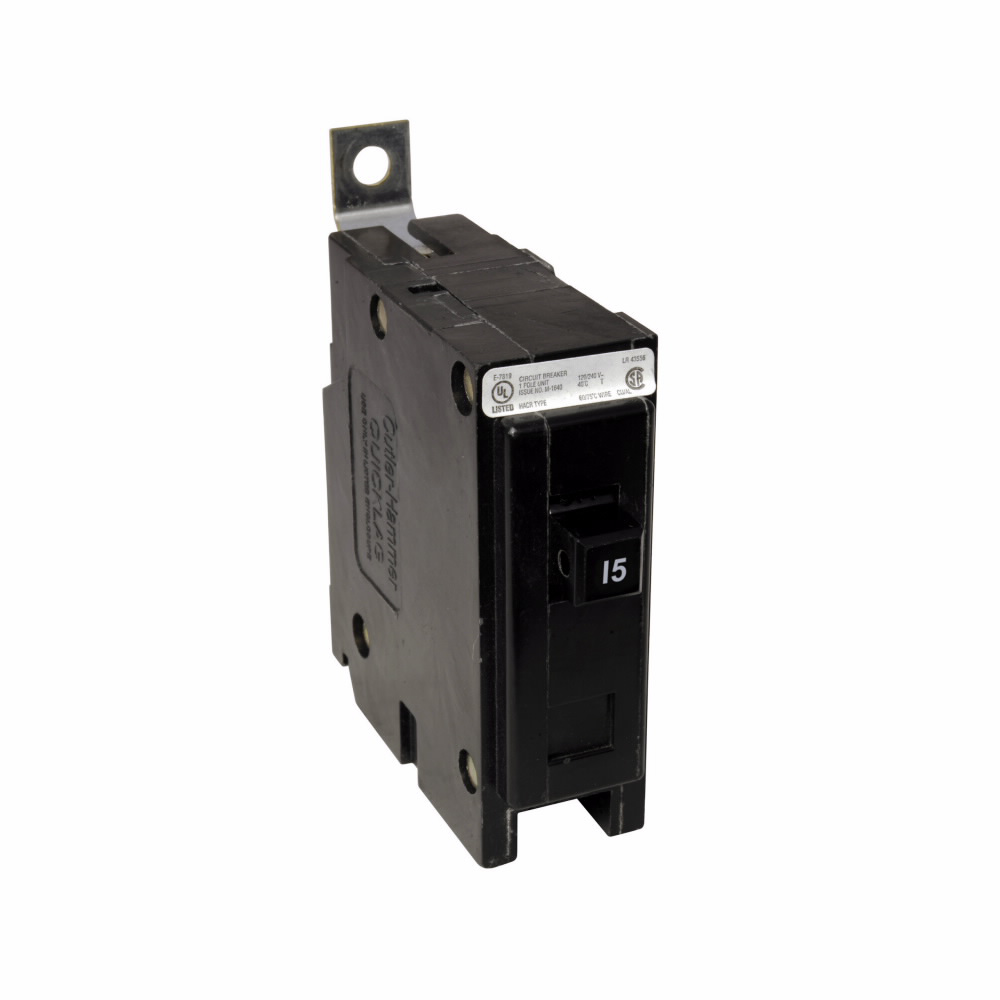

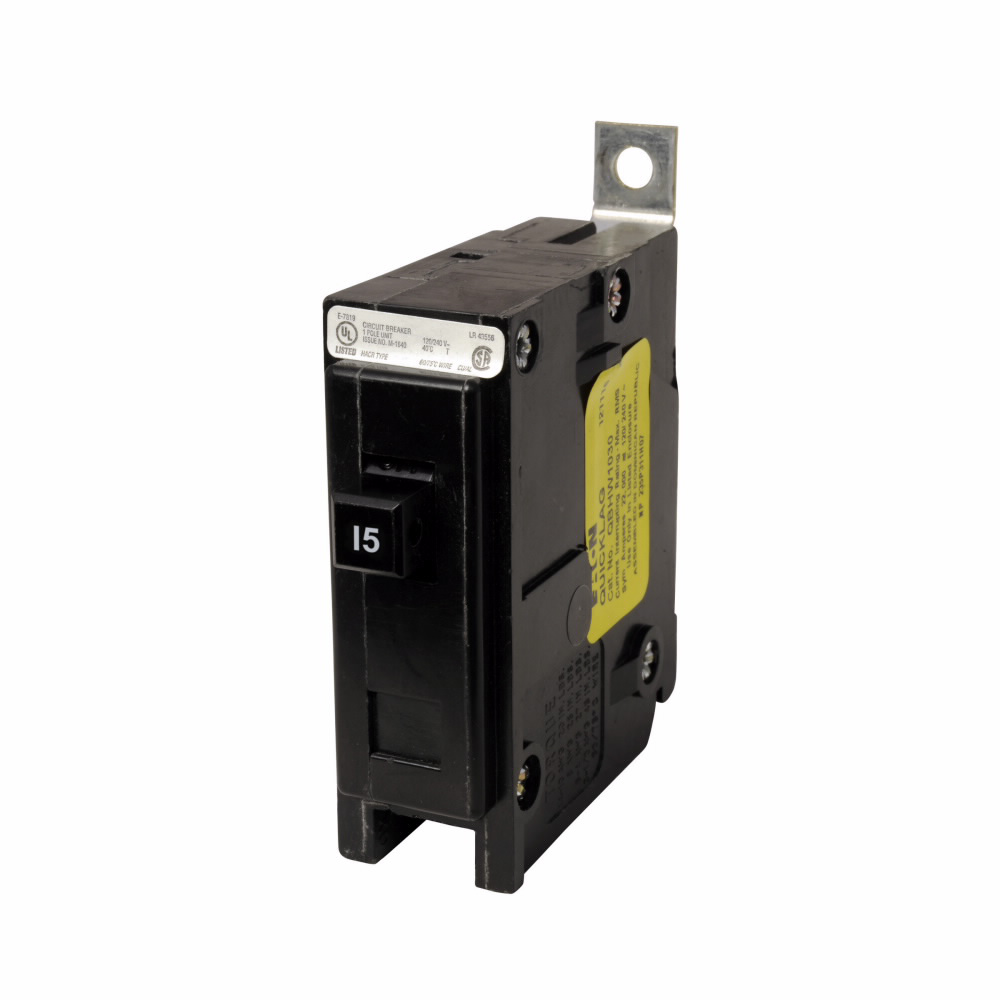

The Eaton QB thermal magnetic circuit breaker, model QBHW1015, is a single-pole, 15-ampere rated device designed for reliable circuit protection in industrial and commercial electrical distribution systems. It operates at 120/240 V and features a 22 kAIC interrupting capacity, suitable for protecting wiring and equipment from overloads and short circuits. This breaker is non-interchangeable and complies with industry standards for safety and performance, making it a dependable choice for electrical distributors and switchgear suppliers focused on lighting solutions, wire and cable protection, and overall electrical system reliability.

Specifications

• Manufacturer: Eaton
• Manufacturer Part #: QBHW1015
• Amperage: 15 amperes
• Interrupting Capacity: 22 kAIC
• Poles: Single-pole
• Voltage: 120/240 V
• Dimensions (L x W x H): 3.9 in x 1.2 in x 4.8 in
• Product Weight: 0.3 lb
• Non-Interchangeable Design

Features

• Thermal-magnetic trip mechanism for precise overload and short circuit protection
• Quicklag industrial design optimized for durability and reliability in commercial applications
• UL Listed and CSA Certified for safety compliance
• Compact size for easy integration into panelboards and switchgear
• Suitable for use in lighting, wire and cable protection, and general electrical distribution
