Eaton QB GFCI circuit breaker,Ground fault circuit breaker,20A,22 kAIC,Single-pole,120/240V,Non-Interchangeable,5 mA Trip Sensitivity,QBHGF
SKU: #167888
Part: #QBHGFT1020
UPC: 786680131035
Eaton QB GFCI circuit breaker,Ground fault circuit breaker,20A,22 kAIC,Single-pole,120/240V,Non-Interchangeable,5 mA Trip Sensitivity,QBHGF
SKU: #167888
Part: #QBHGFT1020
UPC: 786680131035
Description

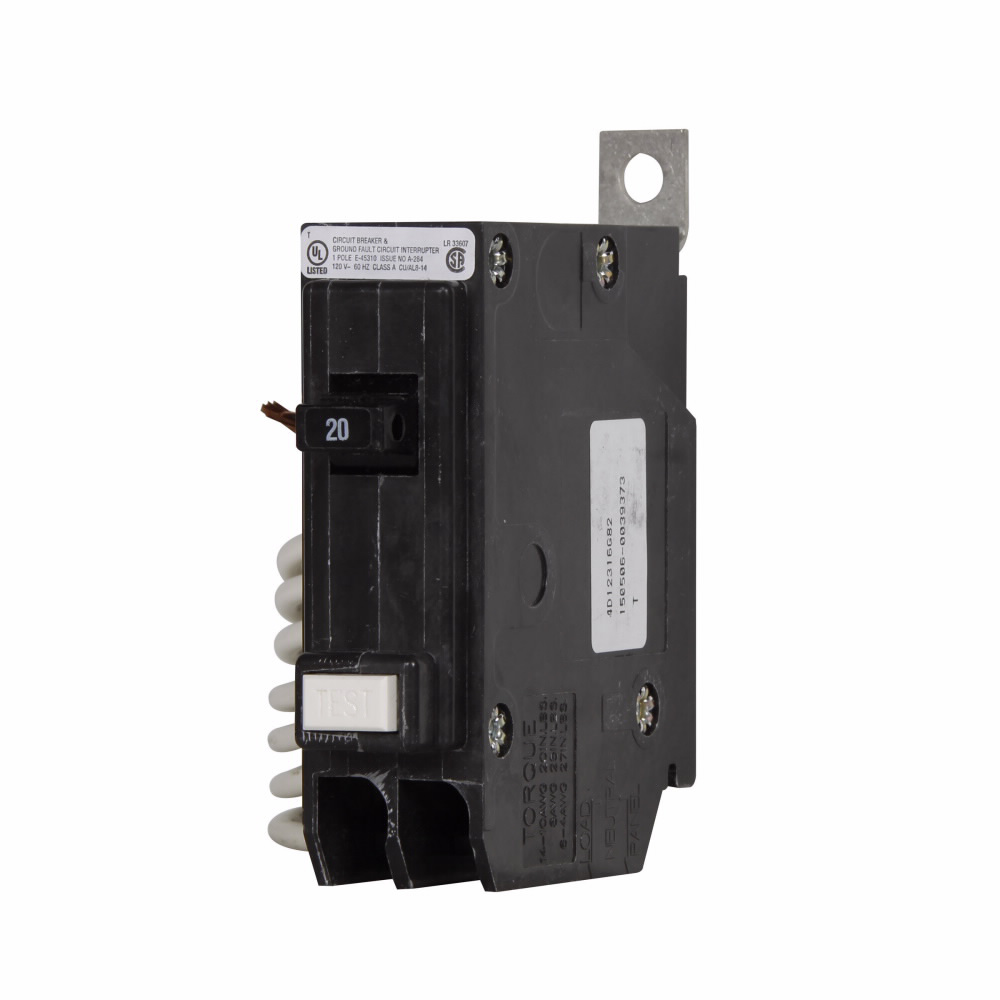

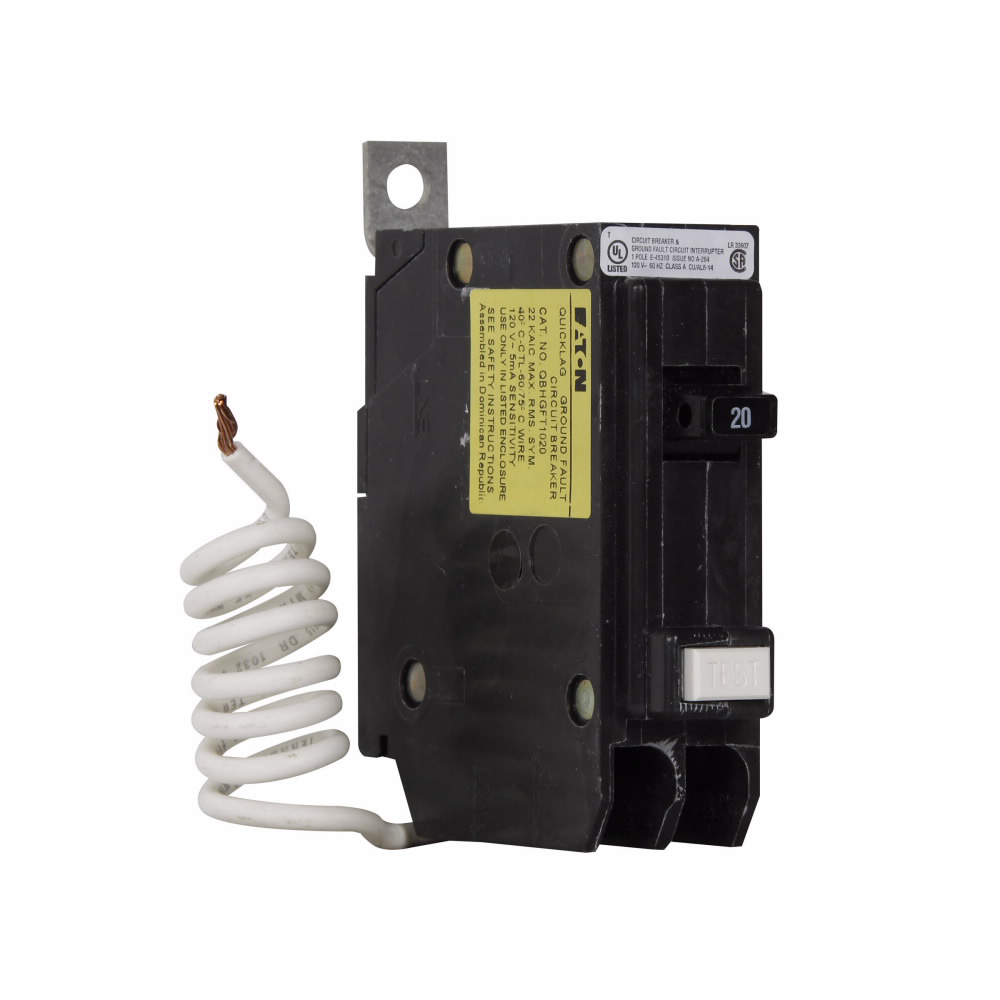

Eaton QB GFCI Circuit Breaker – Ground Fault Circuit Breaker 20A
The Eaton QB GFCI circuit breaker is a single-pole, 20-ampere ground fault circuit interrupter designed for 120/240V electrical systems. It provides reliable ground fault protection with a 5 mA trip sensitivity and a 22 kA interrupting rating (kAIC). This breaker is non-interchangeable and intended for use in residential and light commercial electrical distribution panels. As a product from Eaton, a recognized electrical distributor and switchgear supplier, it supports safe wiring and cable management by protecting circuits from ground faults that could cause electrical shock or fire hazards.
Specifications
- Manufacturer: Eaton
- Manufacturer Part #: QBHGFT1020
- Circuit Breaker Type: QBHGF
- Amperage: 20 amperes
- Interrupting Rating: 22 kAIC
- Poles: Single-pole
- Voltage: 120/240 V
- Trip Sensitivity: 5 mA
- Dimensions (L x W x H): 5 in x 3 in x 1 in
- Product Weight: 0.4 lbs
- UPC: 786680131035
Features
- Ground fault protection with 5 mA trip sensitivity for enhanced safety
- Non-interchangeable design to ensure proper installation and compatibility
- Single-pole breaker suitable for standard residential and light commercial circuits
- High interrupting capacity of 22 kAIC for reliable fault clearing
- Compact dimensions for easy installation in standard loadcenters and panelboards
