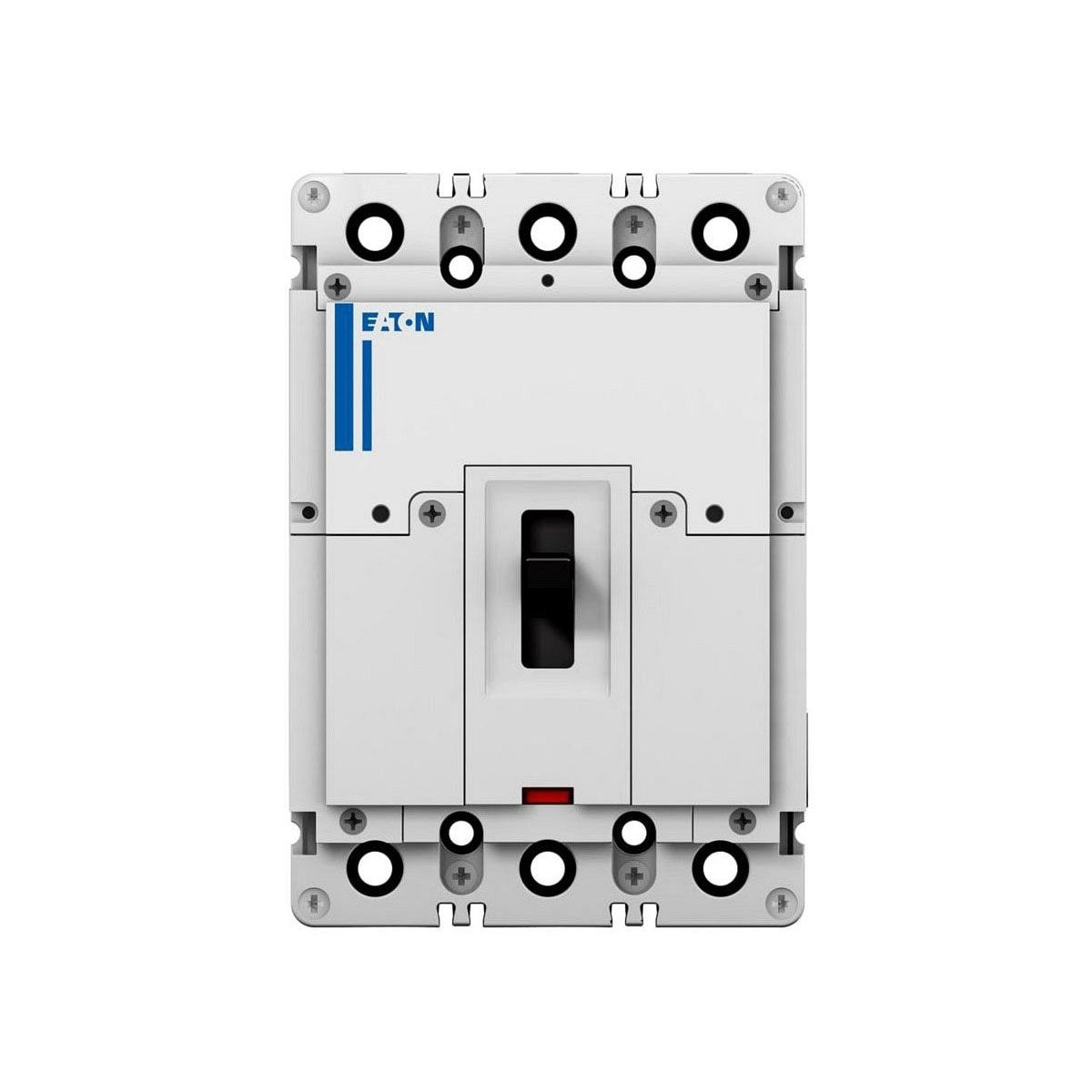

EATON PDG21M0015TFFJ PDG2-1P-15A-25KA/347V-FXFXTMTU Molded Case Circuit Breaker

The EATON PDG21M0015TFFJ is a Power Defense Molded Case Circuit Breaker designed for reliable circuit protection and power distribution in electrical systems. Suitable for use by electrical distributors and switchgear suppliers, this breaker offers fixed thermal and fixed magnetic trip units, providing protection for wire and cable installations in lighting solutions and other electrical applications. It is part of Eaton’s Frame Size 2 series, supporting current ratings from 15 A to 225 A, and is UL/CSA/IEC/CB certified to meet stringent safety and performance standards.

Specifications

• Manufacturer: Eaton
• Manufacturer Part Number: PDG21M0015TFFJ
• Continuous Current Rating: 15 A
• Interrupting Rating: 25 kA at 347 Vac (single-pole)
• Trip Unit Type: Fixed Thermal / Fixed Magnetic (TFF)
• Poles: 1-pole
• Product Weight: 4.74 lbs
• UPC: 786679242964

Features

• Frame Size 2 breaker suitable for 15 A through 225 A ratings
• Factory-configured with fixed thermal and fixed magnetic trip units for dependable protection
• Modular design allows for field installation or factory configuration of accessories
• UL, CSA, IEC (CE), and CB (CCC) certified for global compliance
• Ideal for electrical distributors and switchgear suppliers requiring reliable circuit protection solutions
