Description
Eaton Occupancy Sensor Switch - Lighting Control Solutions

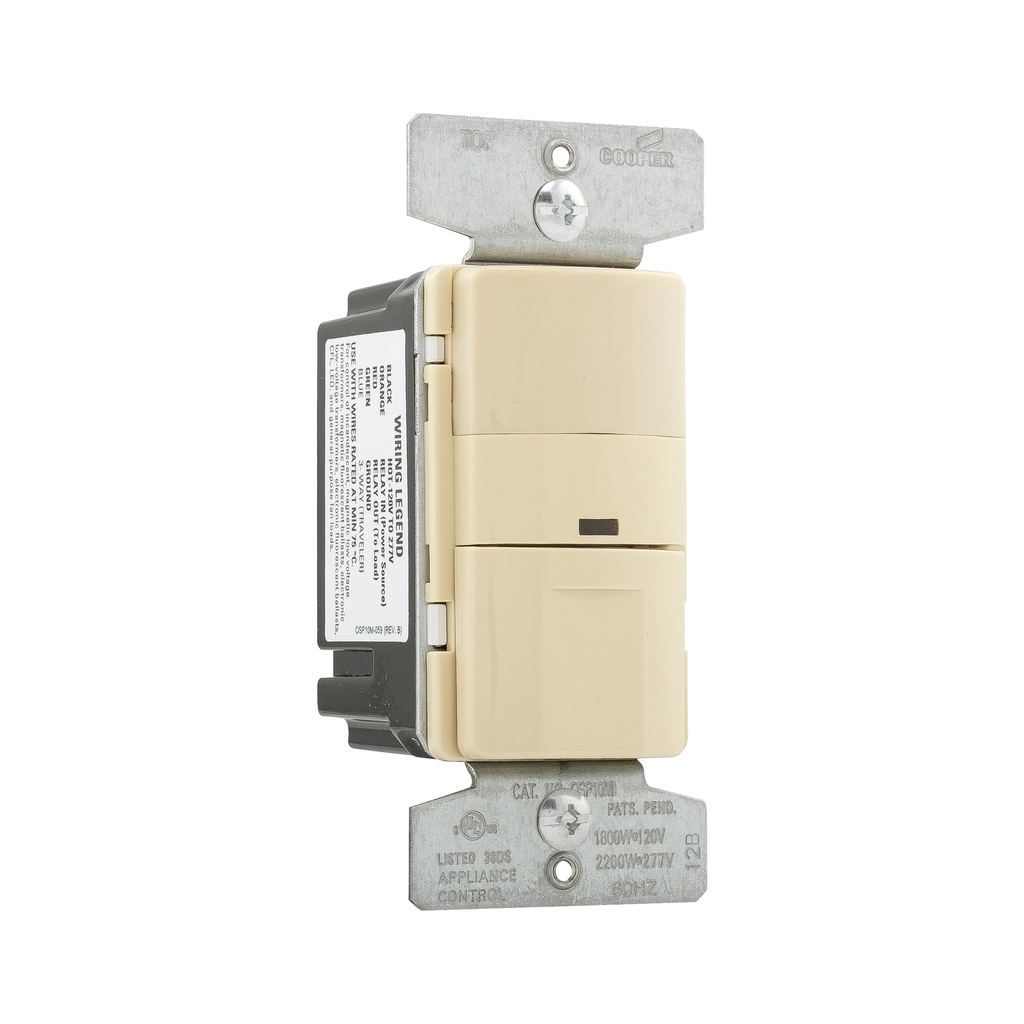

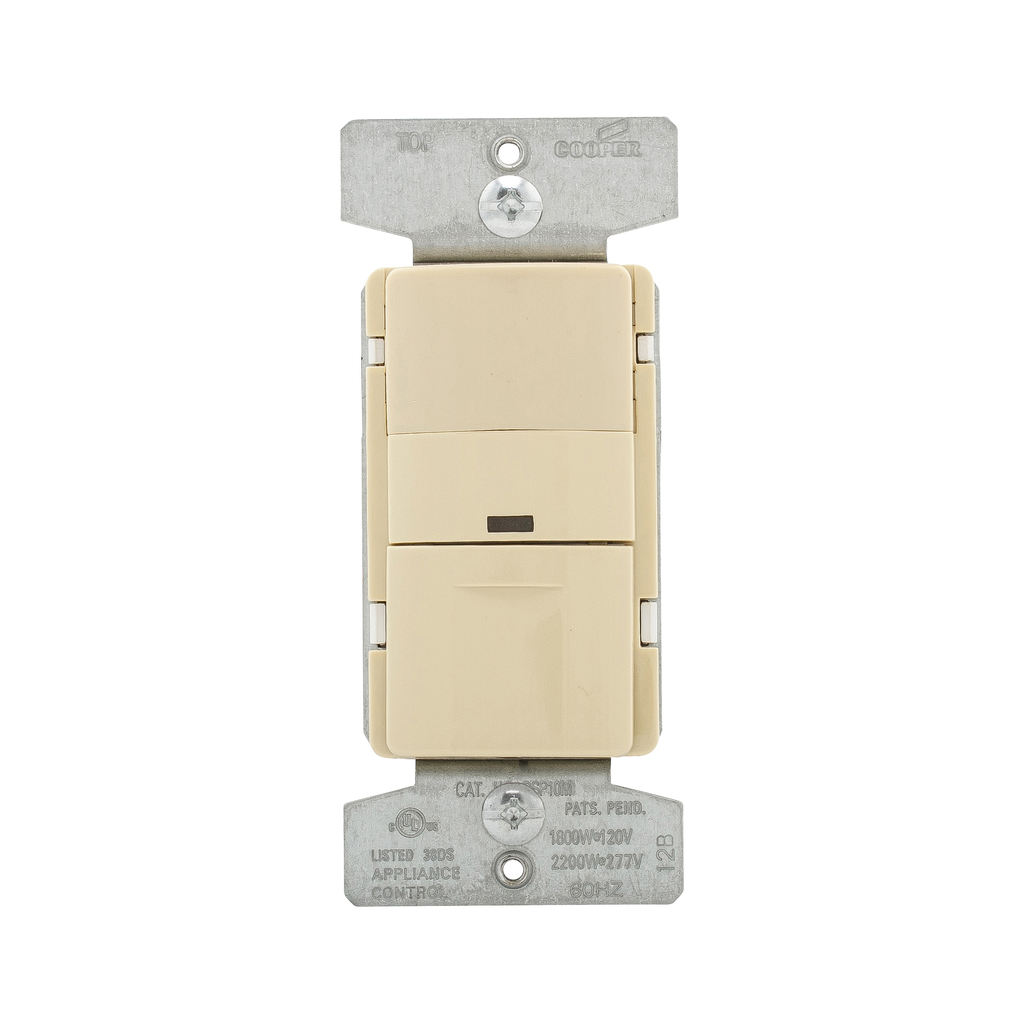

The Eaton occupancy sensor switch (Model OSP10M-V) by Cooper Wiring Devices is a single pole, ivory-colored sensor switch designed for automatic lighting control in electrical distribution and lighting solutions. It is suitable for use in commercial and residential applications to enhance energy savings by automatically turning lights on and off based on occupancy detection. This sensor switch supports incandescent, halogen, fluorescent, LED, and motor loads, making it a versatile component for wire and cable installations and switchgear supplier offerings.
Specifications
- Manufacturer Part #: OSP10M-V
- Color: Ivory
- Number of Poles: 1
- Number of Phases: 1
- Product Weight: 0.3920 lbs
- Voltage Rating: 120/277V AC, 60 Hz
- Maximum Load (Incandescent/Halogen): 15A, 1800W @ 120V AC
- Maximum Load (Magnetic Ballast Fluorescent, MLV): 15A, 1800VA @ 120V AC; 8A, 2200VA @ 277V AC
- Maximum Load (Electronic Ballast Fluorescent, CFL/LED/ELV lighting): 10A, 1200VA @ 120V AC; 8A, 2200VA @ 277V AC
- Maximum Load (Motor): 1/2 HP @ 120V AC
- Coverage Area: 1000 sq. ft. major motion, 300 sq. ft. minor motion
- Sensor Type: 180º Passive Infrared (PIR)
- Listings: cULus Listed
Features
- Selectable automatic ON mode or manual ON mode
- Adjustable built-in light level sensor for daylight sensing to prevent unnecessary lighting
- Selectable time delays: 5 seconds (Test Mode), 5 minutes (factory default), 15 minutes, and 30 minutes
- Manual OFF push button operable in either automatic or manual mode
- Zero-crossing switching technology to maximize relay life and ensure switch longevity
- Reinforced tamper-resistant lens
- Dual voltage rating: 120V and 277V in the same unit
- Single pole or 3-way wiring capable
- Includes a standard size decorator wallplate
- Supports interfacing with external control Switchpacks
- Special modes: Reverse Mode, Vacancy Mode, Override Mode, and Disable Manual Operation for flexible control
- Green LED indicator for load status and motion detection feedback
- Title 24 compliant for energy efficiency standards
