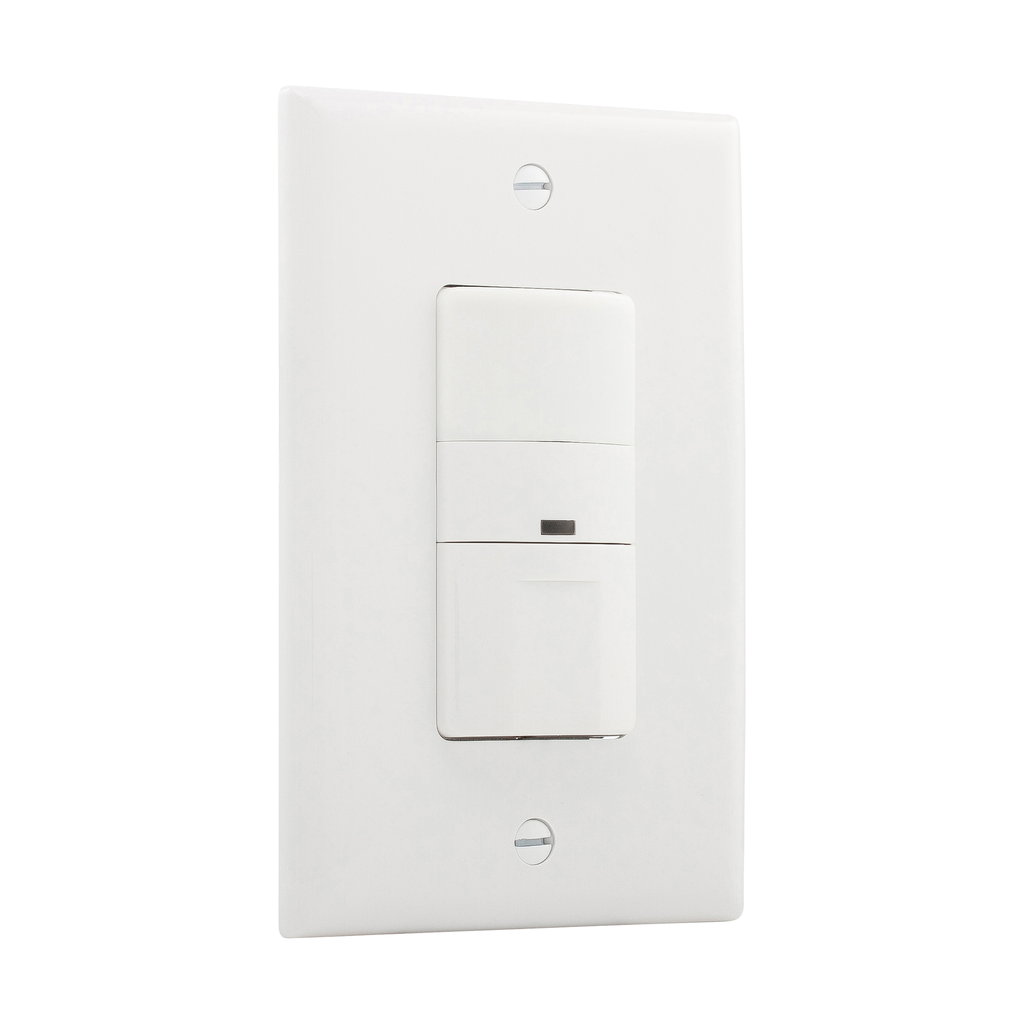

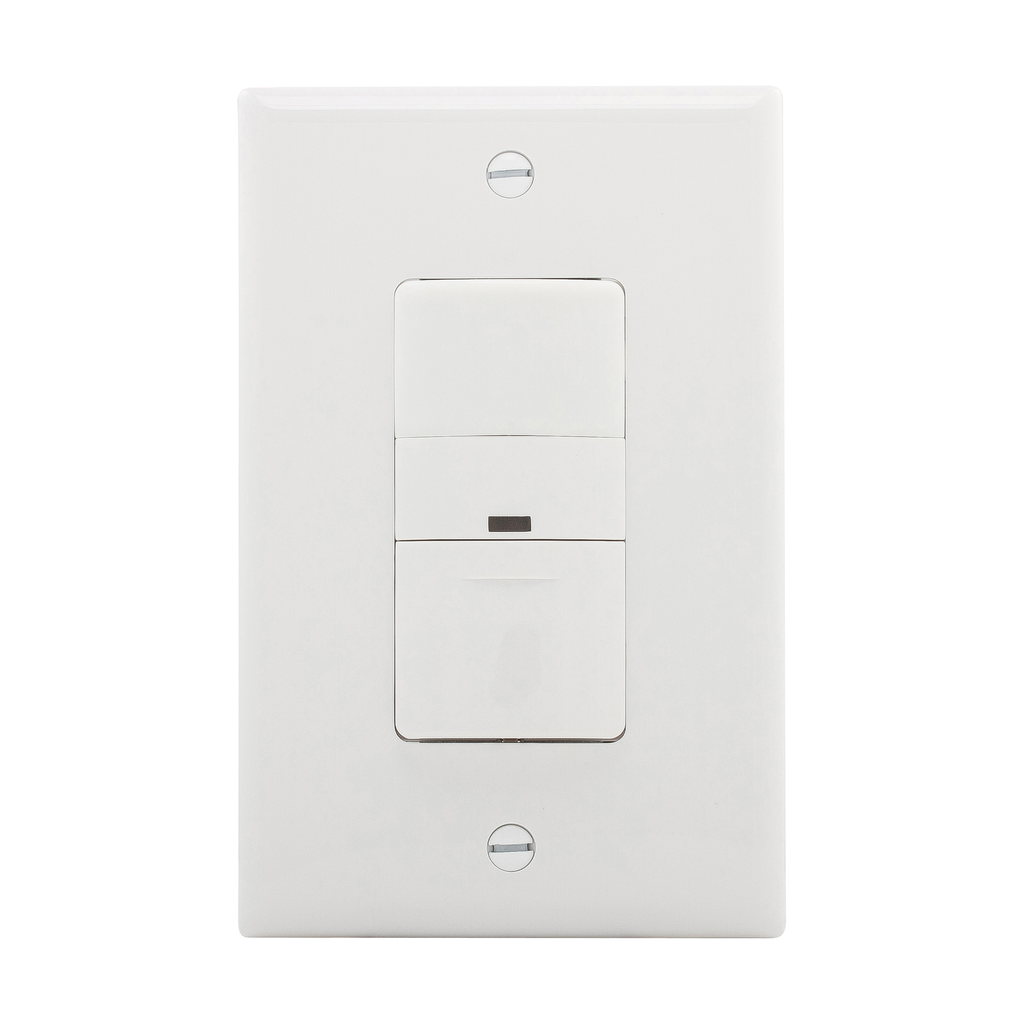

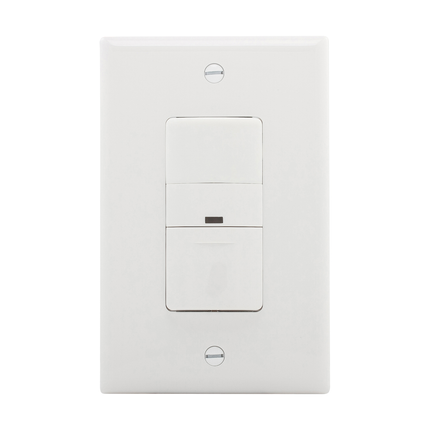

Eaton occupancy sensor switch
SKU: #171423
Part: #OS306U-W
UPC: 032664722233
Eaton occupancy sensor switch
SKU: #171423
Part: #OS306U-W
UPC: 032664722233
Description
Eaton occupancy sensor switch - Motion Sensor Switch
The Eaton occupancy sensor switch (Model OS306U-W) by Cooper Wiring Devices is a motion-activated electrical switch designed for residential lighting control. It automatically turns lights ON when occupancy is detected and OFF after a selectable time delay when no motion is sensed. Ideal for retrofit or new home construction, this sensor switch supports single pole and 3-way wiring configurations. It is compatible with a wide range of lighting loads including LED, CFL, fluorescent, incandescent/halogen, electronic low-voltage (ELV), and magnetic low-voltage (MLV) lamps. This product is suitable for electrical distributors and lighting solutions providers seeking efficient, reliable occupancy sensing for wire and cable installations or switchgear supplier applications.
Specifications
- Voltage: 120V/AC, 60 Hz
- Wattage/VA Rating: 600W Incandescent/Tungsten/Halogen/LED/ELV, 600VA Magnetic Low Voltage
- Fluorescent/Compact Fluorescent Rating: 5.0A/600W
- Motor Load: 1/6 HP
- Number of Poles: 1
- Number of Phases: 1
- Compatible Lamp Loads: LED, CFL, FLR, INC/HAL, ELV, MLV
- Color: White
- Product Weight: 0.3140 lbs
- UPC: 032664722233
- Manufacturer Part Number: OS306U-W
Features
- Utilizes Passive Infrared (PIR) technology with tamper-resistant, color-matched lens
- Selectable time delay from 5 seconds (test mode) up to 30 minutes for automatic OFF
- Integrated daylight sensor prevents lights from turning ON when sufficient natural light is present
- Compatible with single pole and 3-way wiring applications
- No neutral wire required for installation; optional neutral available for new construction
- Compact housing fits standard wall boxes, suitable for multi-gang installations
- Electrostatic discharge protection and no leakage to load in OFF mode
- Replaces standard light or fan switch
- High-gloss finish complements any decor
- Compatible with decorator-style and screwless wallplates
- Title 24 compliant for energy efficiency standards
