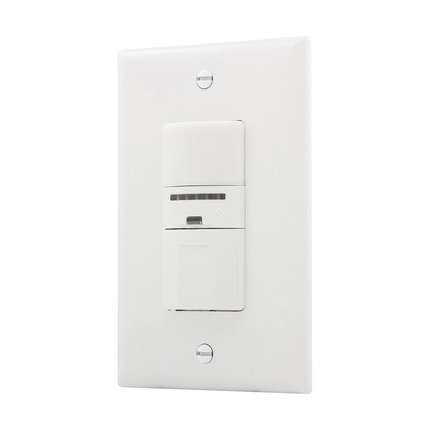

Eaton occupancy sensor and dimmer
SKU: #171366
Part: #OS106D1-W
UPC: 032664711084
Eaton occupancy sensor and dimmer
SKU: #171366
Part: #OS106D1-W
UPC: 032664711084
Next day delivery
Description

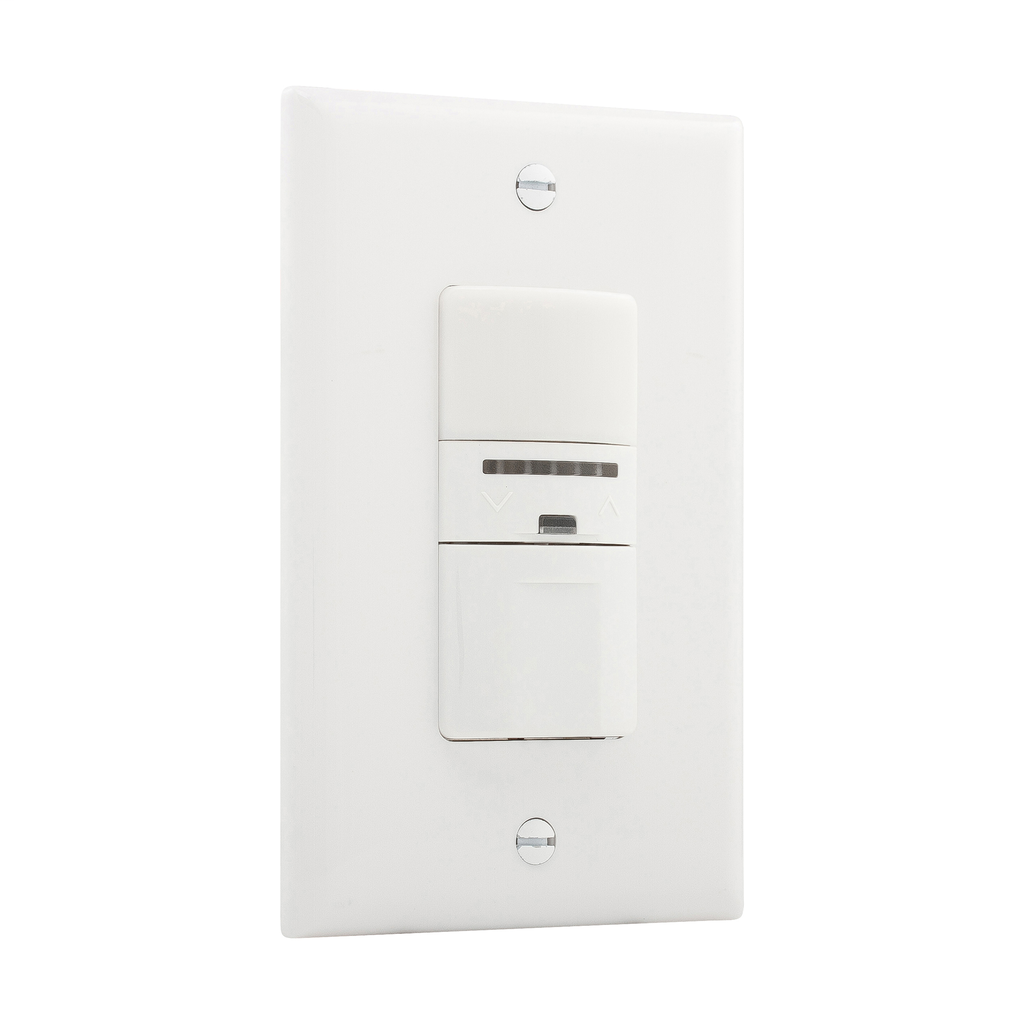

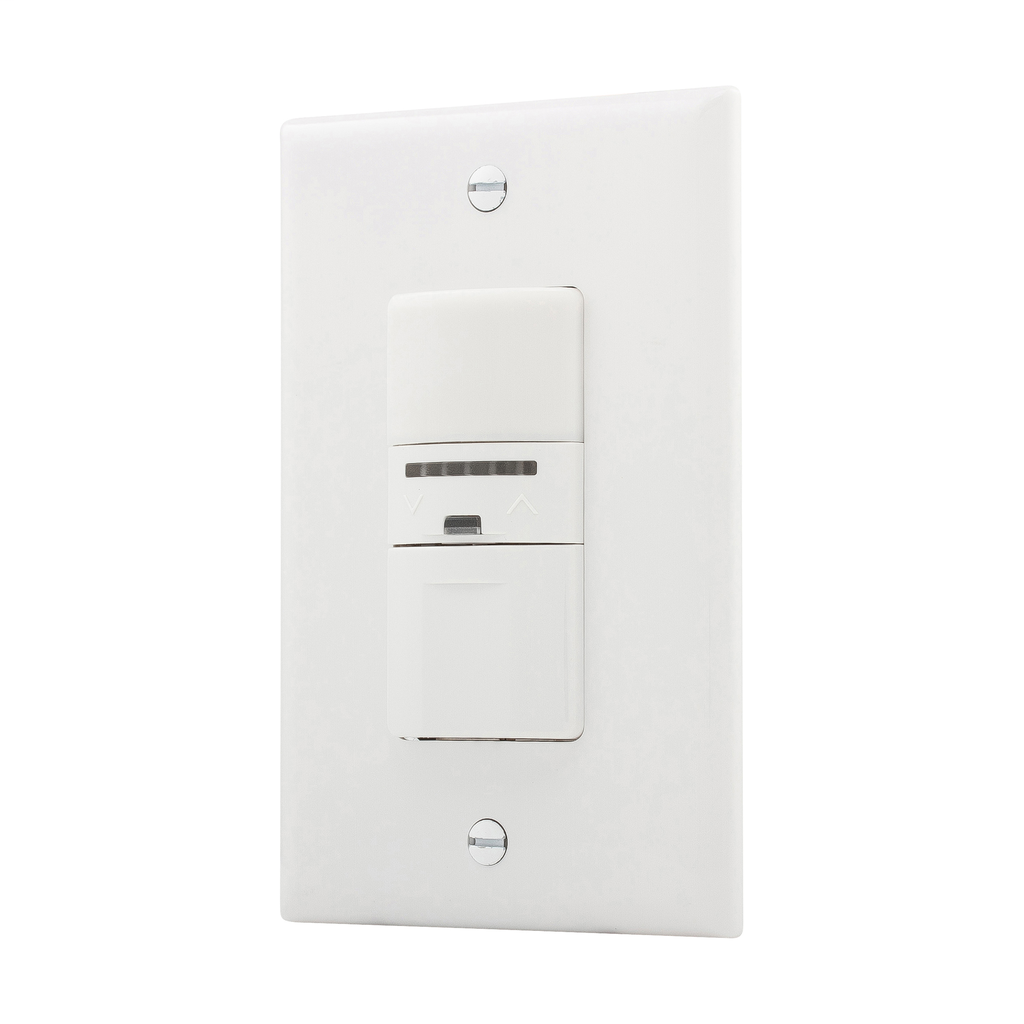

Eaton occupancy sensor and dimmer - Motion Activated Dimmer Sensor
The Eaton occupancy sensor and dimmer (model OS106D1-W) is a single pole, motion-activated dimmer sensor designed for residential lighting control applications. It utilizes advanced Passive Infrared (PIR) technology to detect occupancy and automatically adjust lighting levels, providing energy savings and convenience. Suitable for incandescent, halogen, and magnetic low-voltage (MLV) lighting loads, this device is ideal for retrofit or new home construction projects. It is compatible with common decorator-style wallplates and requires a neutral wire for installation.
Specifications
- Manufacturer Part #: OS106D1-W
- Color: White
- Number of Poles: 1
- Number of Phases: 1
- Voltage Rating: 120V AC, 60 Hz
- Load Types: Incandescent, Halogen, Magnetic Low-Voltage (MLV)
- Wattage Rating: 600W/VA
- Field of View: 180 degrees
- Coverage Area: 1000 sq. ft. of major motion coverage
- Time Delay Settings: Selectable 5 seconds (test), 5, 15, and 30 minutes
- Material: Polycarbonate housing with aluminum strap
- Finish: Gloss
- Dimensions: Approximately 4.2 in (height) x 1.8 in (width) x 1.39 in (depth)
- Weight: 0.3580 lbs
- Certifications: cULus Listed to UL244A & UL1472, NOM Certified, California Title 20 compliant
Features
- Advanced PIR technology with tamper-resistant, color-matched lens
- Integrated daylight sensor prevents lights from turning on when sufficient natural light is present
- Full-range preset dimming control with horizontal DIM/BRIGHT bar and green LED indicators
- Selectable ambient light override for energy efficiency
- Selectable operation modes: Auto ON/Auto OFF or Manual ON/Auto OFF
- Bypass feature allows operation as a traditional manual switch (Manual ON/Manual OFF)
- Soft ON/fade OFF for extended bulb life
- Push pad design for minimal travel and crisp actuation
- Green LED serves as load status indicator, locator light, and motion detection indicator
- Electrostatic discharge protection and no leakage to load in OFF mode
- Compatible with LED and CFL loads (per general sensor compatibility)
- Neutral wire required for installation
- Mid-size decorator wallplate included
- Color change faceplate kits available for in-field customization
