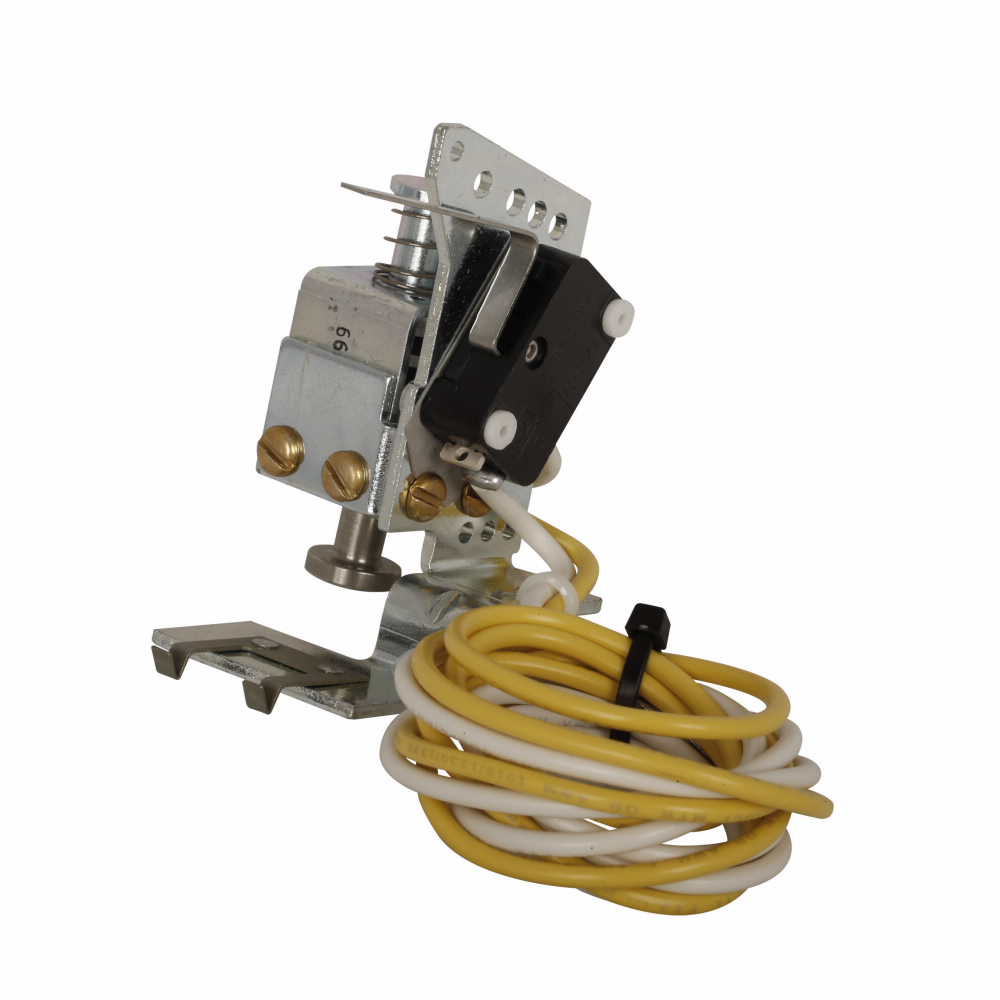

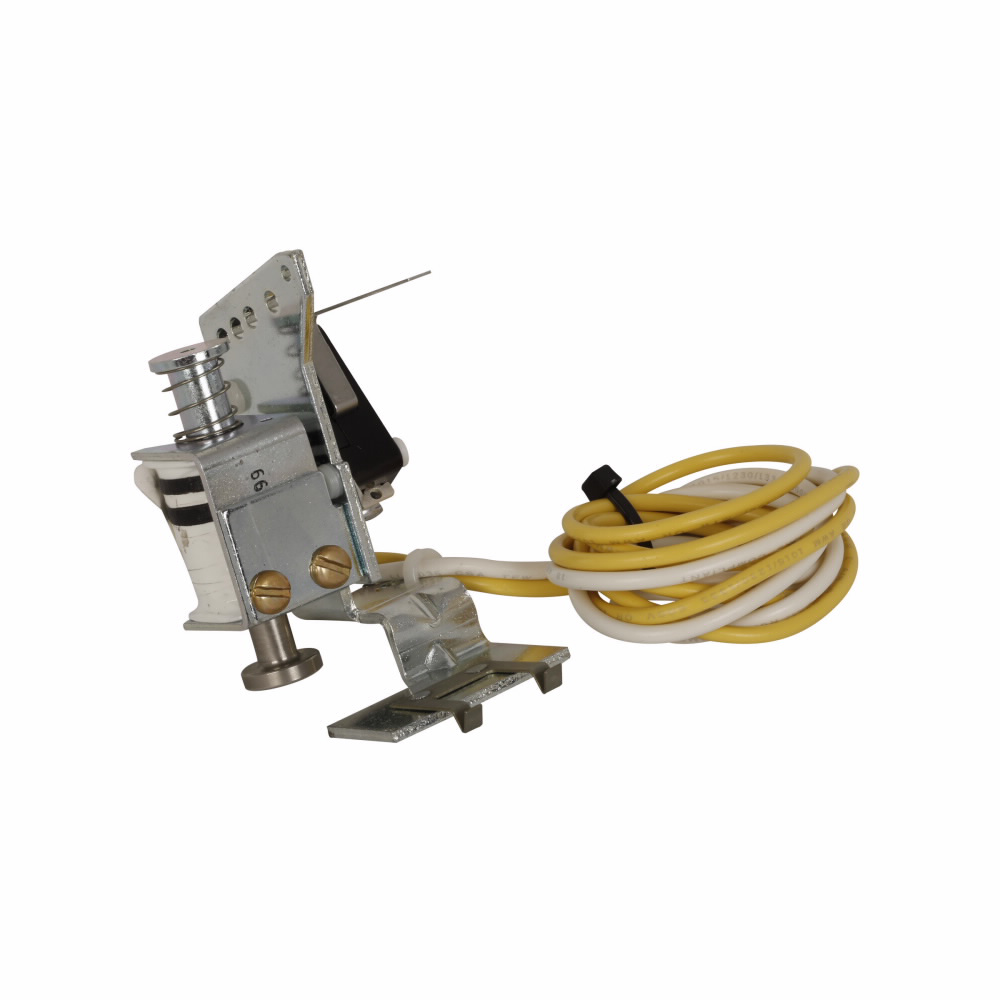

Eaton Molded Case Circuit Breaker Accessory Trip Unit - Shunt Trip 220-250 Vdc or 380-440 V, NG-Frame, Frame J-K

This Eaton molded case circuit breaker accessory trip unit is a shunt trip designed for NG-Frame circuit breakers, specifically Frame J-K. It operates at control voltages of 220-250 Vdc or 380-440 V, providing reliable remote tripping functionality. This accessory is suitable for use by electrical distributors and switchgear suppliers integrating lighting solutions, wire and cable management, and industrial control panel applications requiring enhanced circuit breaker control.

Specifications

• Manufacturer: Eaton
• Manufacturer Part Number: SNT5LP14K
• Frame Compatibility: Frame J-K
• Voltage Range: 220-250 Vdc or 380-440 V
• Dimensions (W x H x L): 1 in x 1 in x 1 in
• Product Weight: 4.0000 lbs
• UPC: 786678262680

Features

• Designed for remote tripping of NG-Frame molded case circuit breakers
• Compact size facilitates easy installation on breaker load-side terminals
• Compatible with Eaton Frame J-K breakers for enhanced operational control
• Supports dual voltage ranges to accommodate various industrial control panel requirements
• Factory accessory that can be mounted to save panel assembly labor
