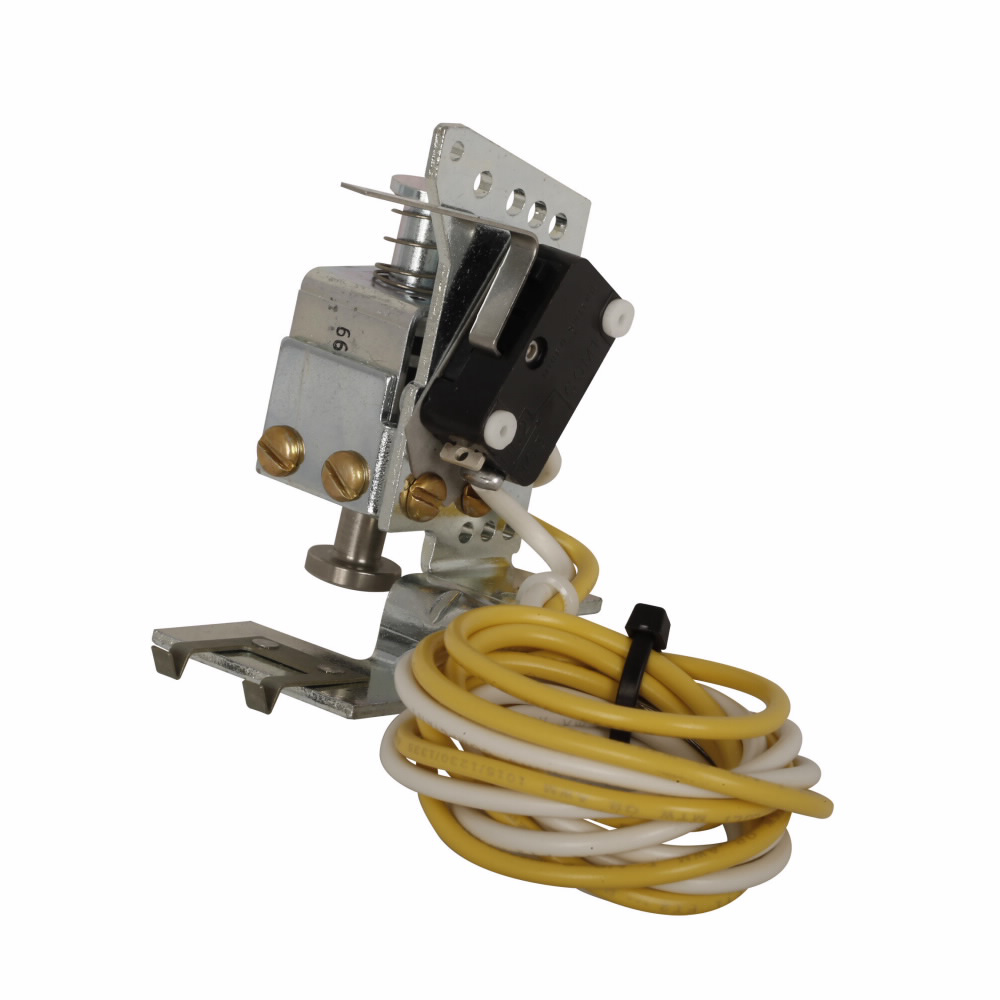

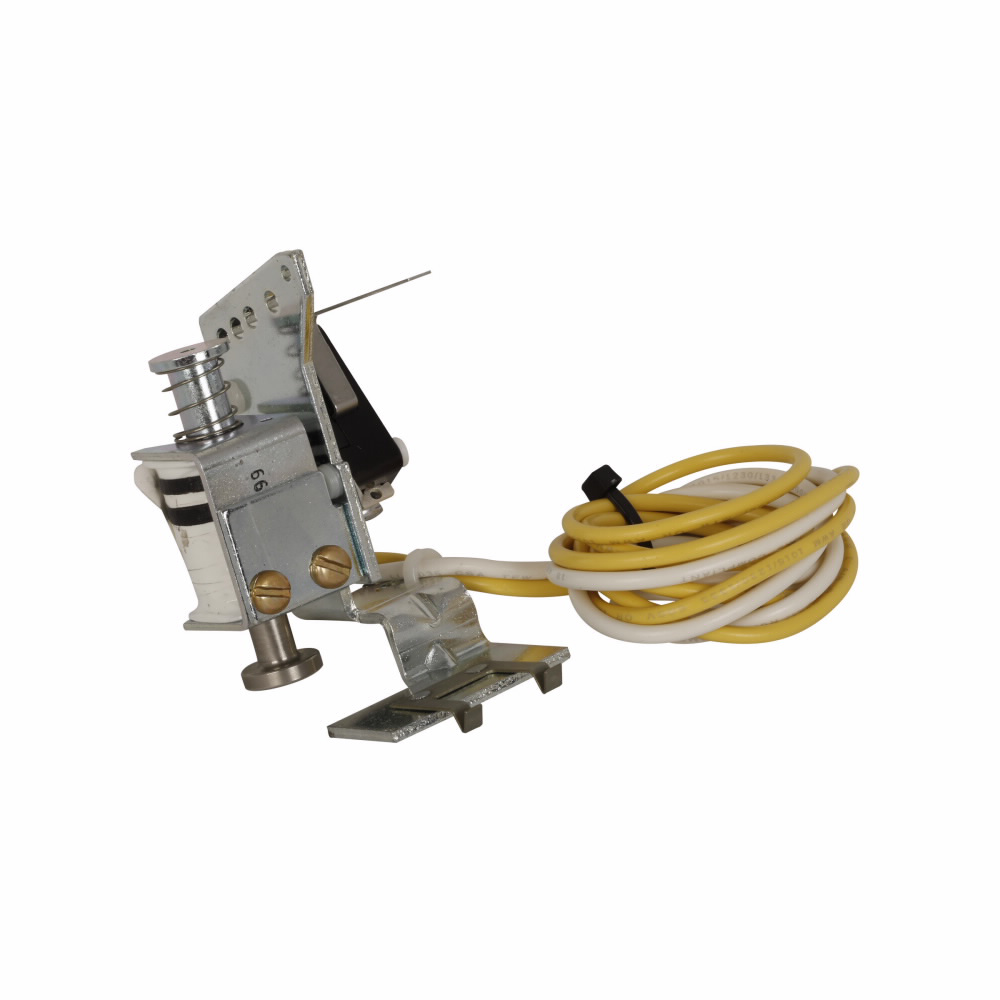

Eaton molded case circuit breaker accessory trip unit, Shunt trip, 110-125 Vdc, NG-Frame, Frame J-K

This Eaton molded case circuit breaker accessory trip unit is designed for use with NG-Frame circuit breakers, specifically Frame J-K. It provides shunt trip functionality with a 110-125 Vdc coil voltage, enabling remote tripping of the breaker. This accessory is suitable for electrical distributors and switchgear suppliers looking to enhance control and safety in electrical distribution and lighting solutions.

Specifications

• Manufacturer: Eaton
• Manufacturer Part #: SNT5LP26K
• Frame: Frame J-K
• Voltage: 110-125 Vdc
• Dimensions (W x H x L): 1 in x 1 in x 1 in
• Product Weight: 4.0000 lbs
• UPC: 786678262666

Features

• Provides remote tripping capability for molded case circuit breakers
• Compact size suitable for NG-Frame J-K breakers
• Designed for reliable operation in electrical control and distribution panels
