Eaton molded case circuit breaker accessory shunt trip – Electrical distributor accessory

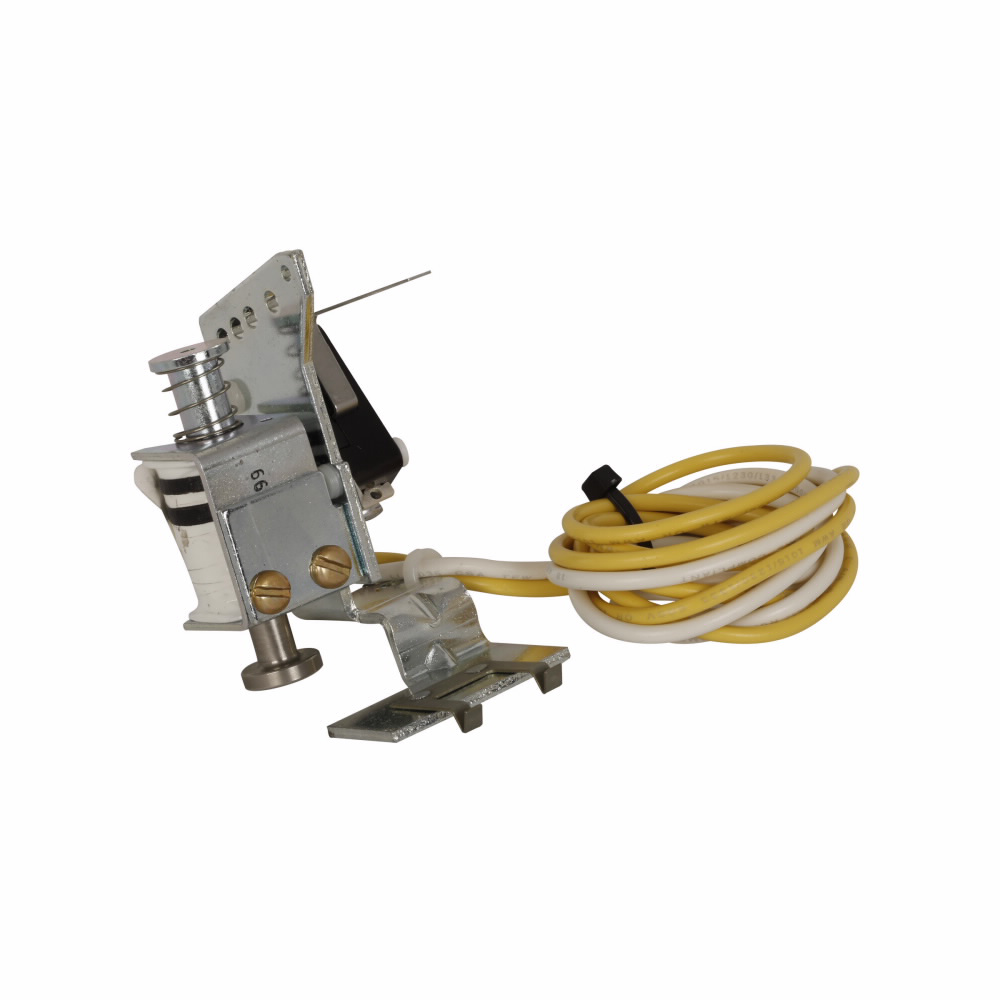

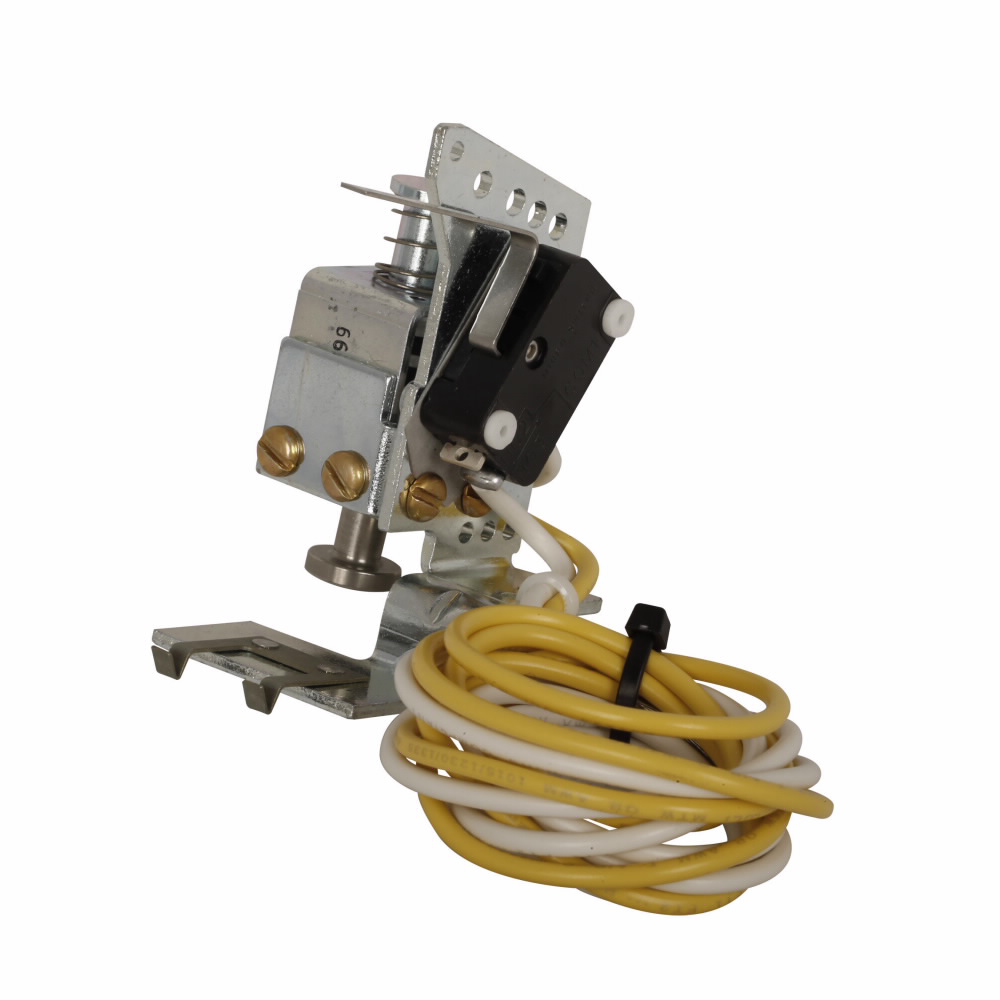

The Eaton molded case circuit breaker accessory shunt trip (Model SNT5LT14K) is designed for use with N-Frame, Series G molded case circuit breakers. It operates on 380-440 V AC or 220-250 V DC control voltages to provide remote tripping functionality. This accessory is suitable for industrial and commercial electrical distribution applications where enhanced control and safety are required. It integrates seamlessly with Eaton circuit breakers, supporting electrical distributors, lighting solutions, wire and cable systems, and switchgear suppliers in delivering reliable circuit protection and control.

Specifications

• Manufacturer: Eaton
• Manufacturer Part #: SNT5LT14K
• Voltage Rating: 380-440 V AC or 220-250 V DC
• Compatible Frame: N-Frame, Series G
• Dimensions (L x W x H): 5.5 in x 3.1 in x 3 in
• Product Weight: 0.5 lbs
• UPC: 786679027370

Features

• Enables remote tripping of molded case circuit breakers
• Designed for N-Frame, Series G circuit breakers
• Dual voltage compatibility with AC and DC control voltages
• Compact design for easy installation and integration
