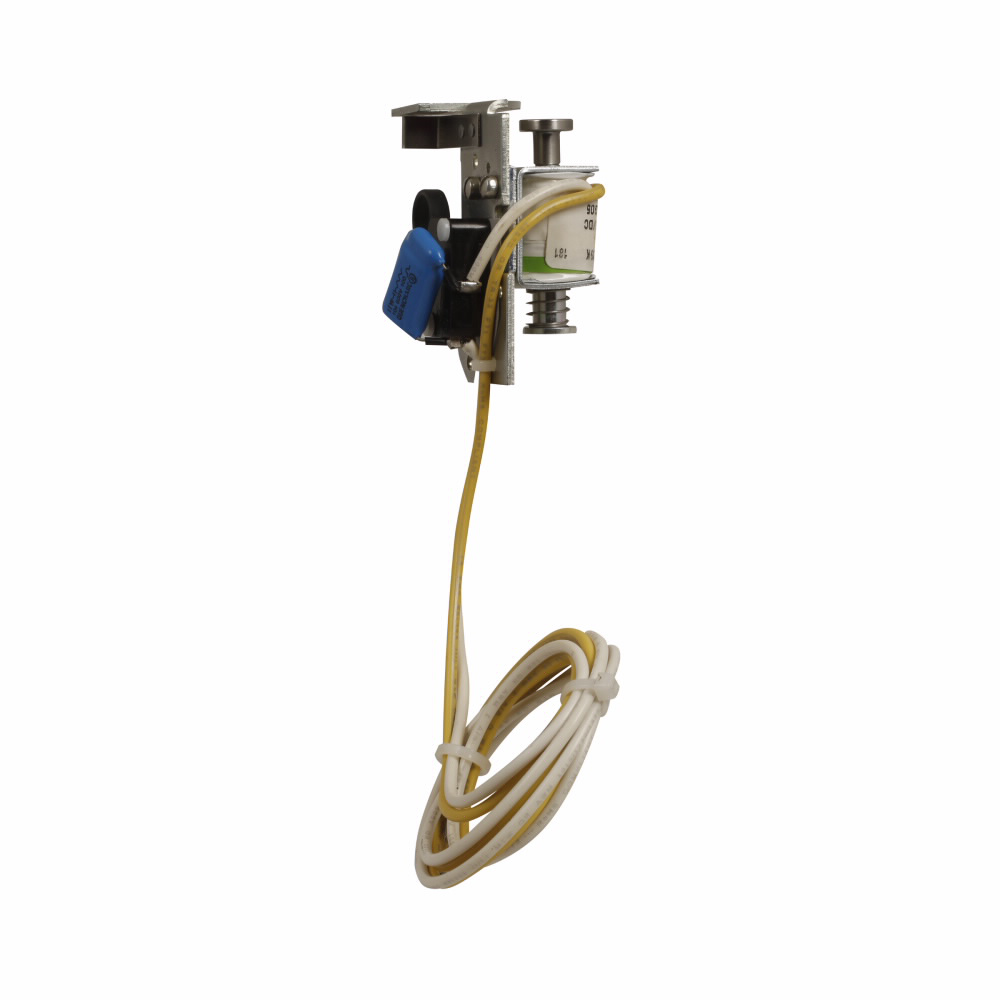

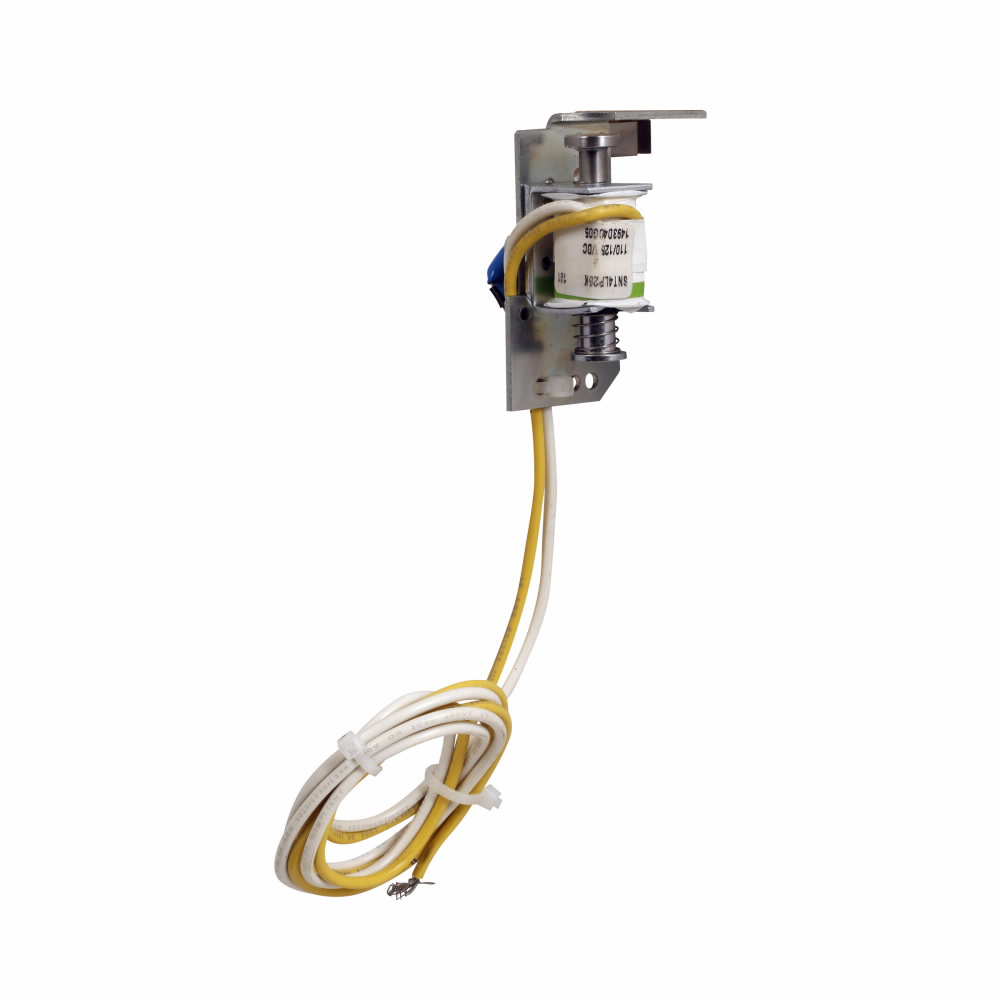

Eaton Molded Case Circuit Breaker Accessory Shunt Trip – Electrical Distributor Component

The Eaton molded case circuit breaker accessory shunt trip is designed for use with Frame L-F circuit breakers, providing a fixed shunt trip function operating at 48-60 V. This accessory is equipped with a terminal block connection type, enabling secure and reliable integration into electrical control and distribution panels. It is suitable for electrical distributors and switchgear suppliers looking to enhance safety and control in their lighting solutions, wire and cable assemblies, and circuit protection systems.

Specifications

• Manufacturer: Eaton
• Manufacturer Part #: SNT4LT05K
• Frame: Frame L-F
• Connection Type: Terminal Block
• Operating Voltage: 48-60 V
• Product Weight: 1.0000 lb
• UPC: 782114621899

Features

• Fixed shunt trip functionality for enhanced circuit breaker control
• Terminal block connection ensures secure electrical connections
• Compatible with Eaton Frame L-F molded case circuit breakers
