Eaton molded case circuit breaker accessory shunt trip - Fixed shunt trip

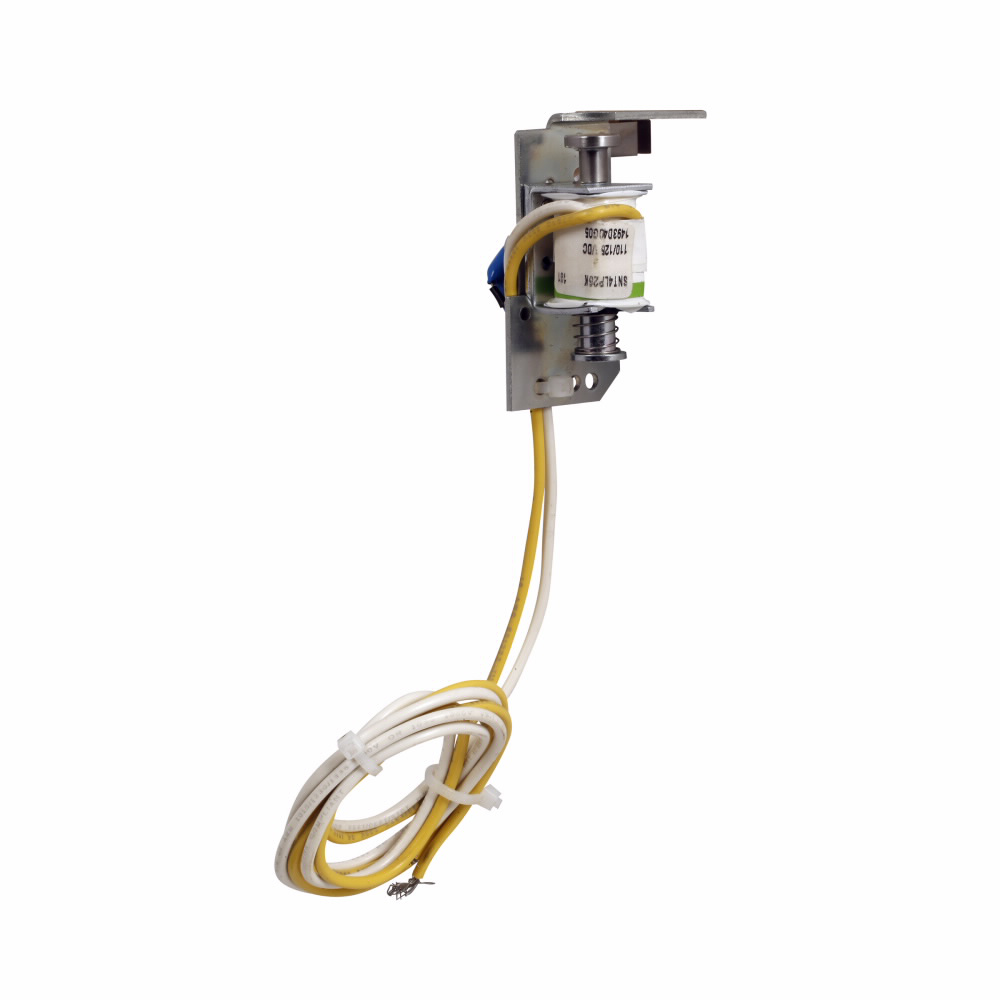

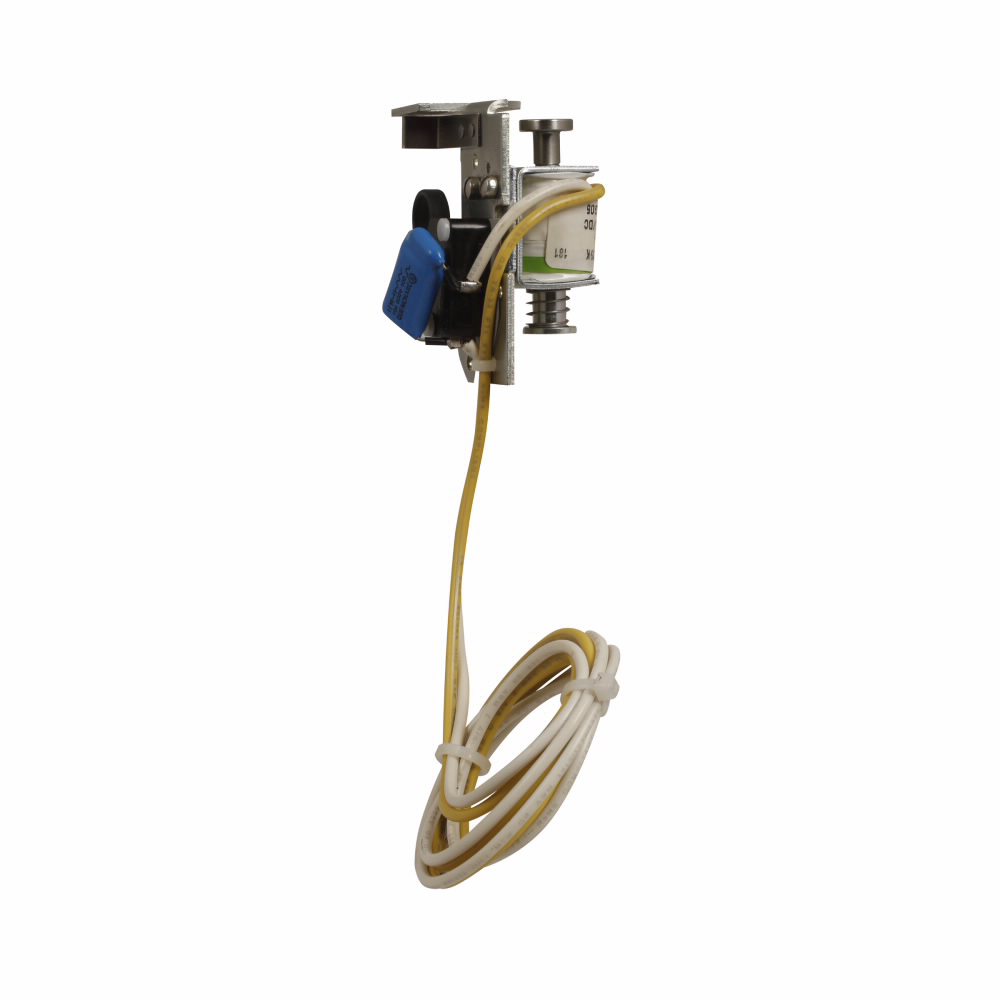

This Eaton molded case circuit breaker accessory shunt trip is designed for use with Frame J-K molded case circuit breakers. It provides a fixed shunt trip function operating at 48-60 V with pigtail lead connections. This accessory is suitable for electrical distributors, lighting solutions, wire and cable applications, and switchgear suppliers requiring reliable circuit breaker trip control.

Specifications

• Manufacturer: Eaton
• Manufacturer Part #: SNT4LP05K
• Frame: Frame J-K
• Connection Type: Pigtail Leads
• Voltage: 48-60 V
• Dimensions: 5.4 in (Length) x 3.2 in (Width) x 3 in (Height)
• Product Weight: 0.45 lb
• UPC: 786679262139

Features

• Fixed shunt trip functionality for precise circuit breaker tripping
• Pigtail leads for straightforward electrical connections
• Compatible with Eaton Frame J-K molded case circuit breakers
• Compact size facilitating integration into existing switchgear assemblies
