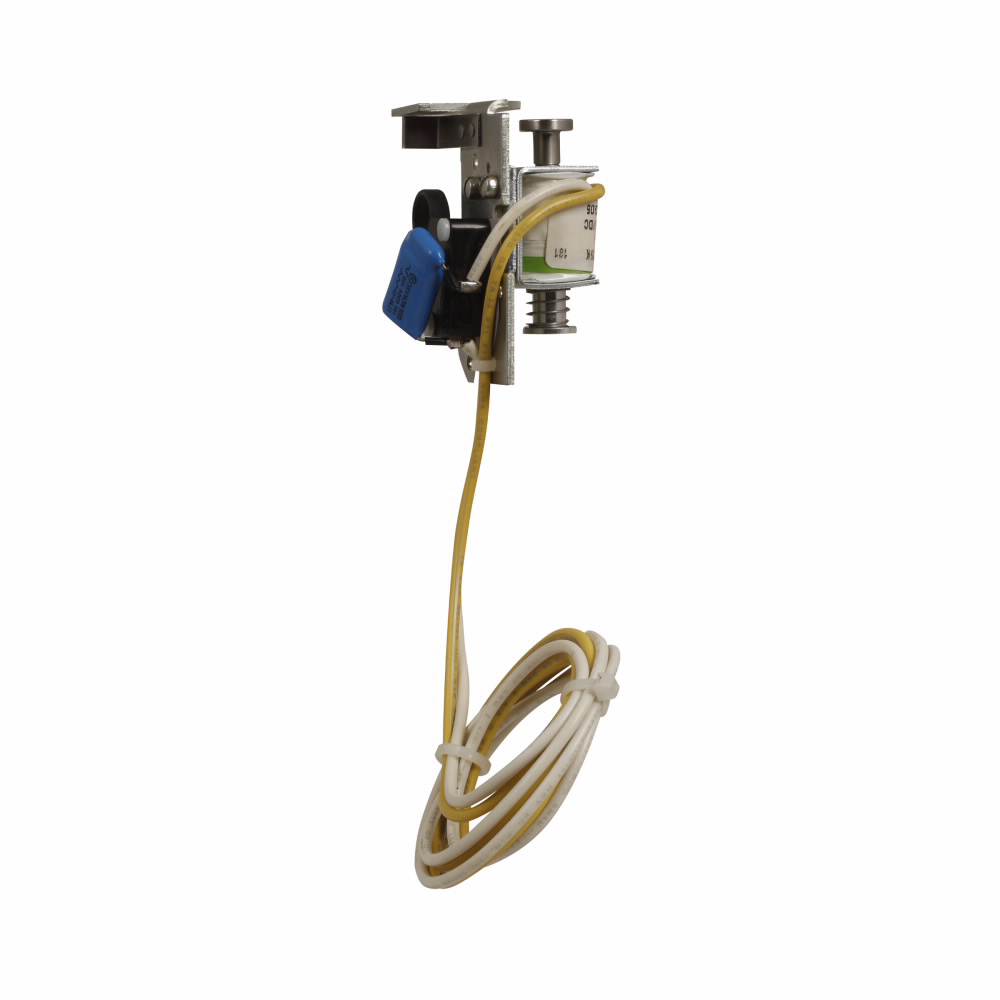

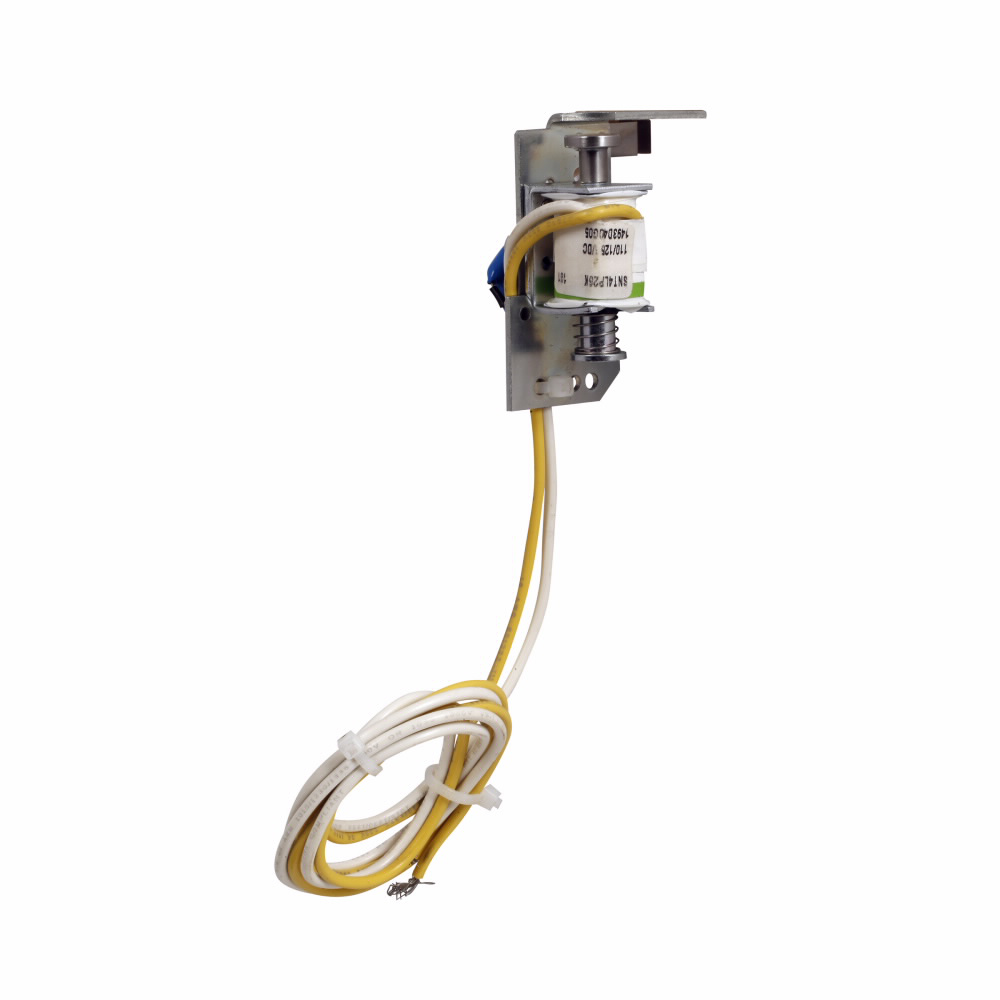

Eaton Molded Case Circuit Breaker Accessory Shunt Trip – Circuit Breaker Control

This Eaton molded case circuit breaker accessory shunt trip enables fixed shunt trip functionality for Frame J-K circuit breakers. Designed for use with 12-24 V or Vdc control voltages, it features pigtail lead connections and left-hand mounting. This accessory is suitable for electrical distributors and switchgear suppliers seeking reliable trip control solutions for circuit breakers in power distribution and motor control applications.

Specifications

• Manufacturer: Eaton
• Manufacturer Part #: SNT4LP03K
• Frame: Frame J-K
• Connection Type: Pigtail Leads
• Voltage: 12-24 V or Vdc
• Dimensions: 5.5 in (Length) x 3 in (Width) x 3 in (Height)
• Product Weight: 0.7 lbs
• UPC: 786679554920

Features

• Fixed shunt trip for remote or automatic circuit breaker tripping
• Compatible with Eaton Frame J-K series molded case circuit breakers
• Pigtail lead connections for straightforward wiring integration
• Left-hand mounting for flexible installation options
