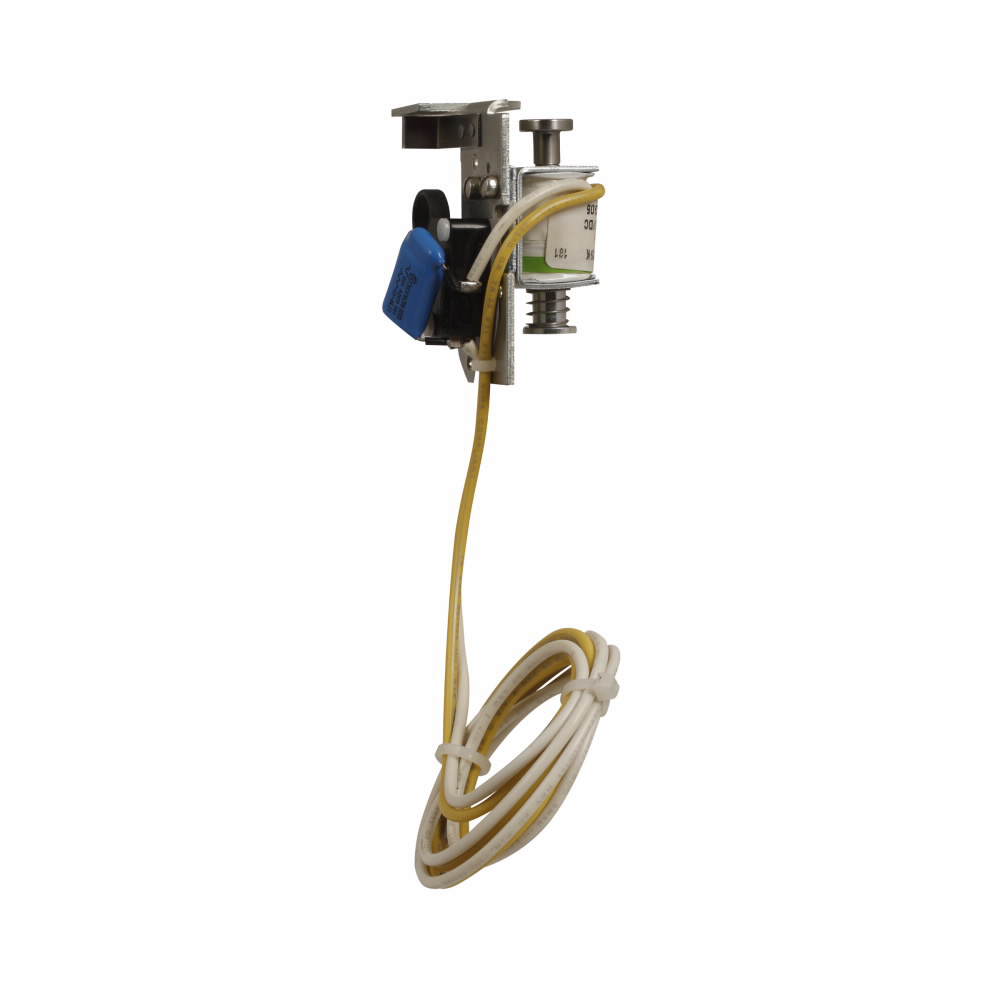

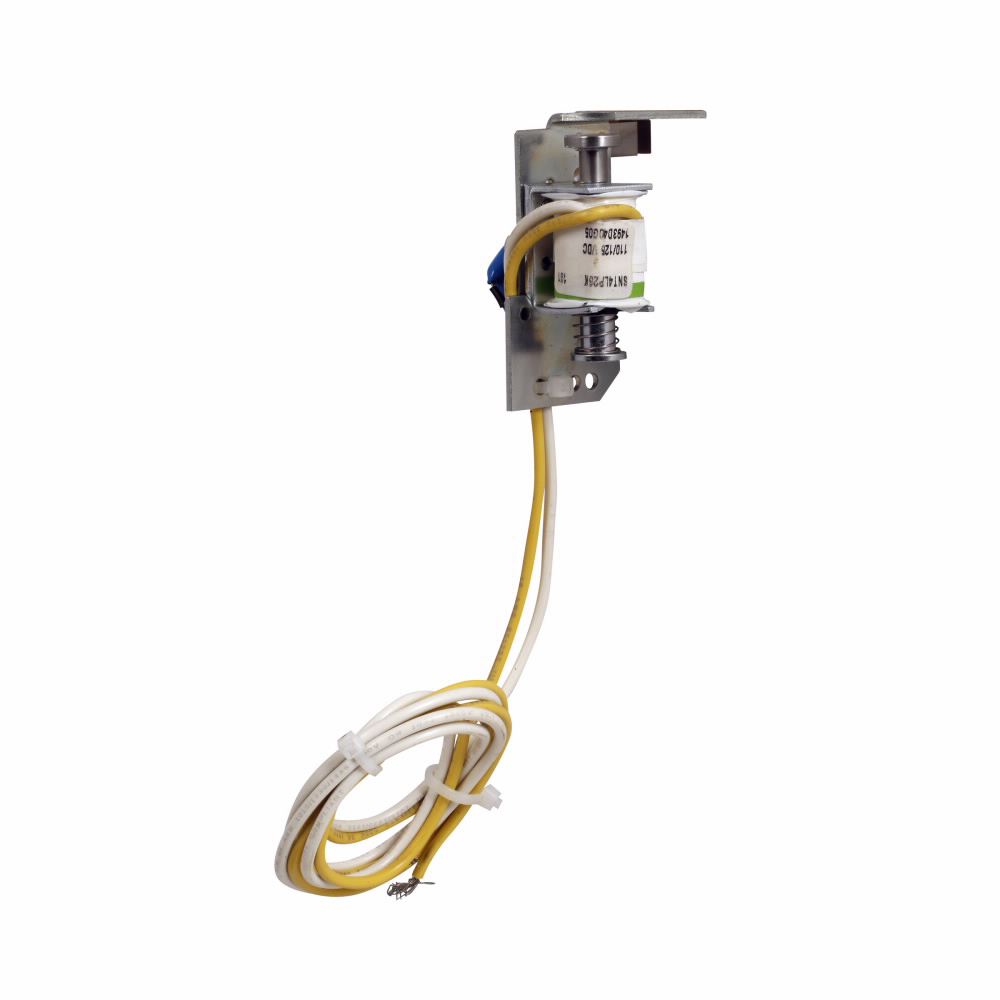

Eaton molded case circuit breaker accessory shunt trip - Fixed shunt trip, 110-240 V

This Eaton molded case circuit breaker accessory shunt trip is designed for use with Frame J-K circuit breakers. It provides a fixed shunt trip function with pigtail leads for electrical connection, operating at 110-240 V. This accessory is suitable for electrical distributors and switchgear suppliers requiring reliable trip activation solutions in lighting and wire and cable applications.

Specifications

• Manufacturer: Eaton
• Manufacturer Part #: SNT4LP11K
• Frame: Frame J-K
• Connection Type: Pigtail Leads
• Voltage Rating: 110-240 V
• Dimensions (W x H x L): 3.2 in x 2.9 in x 5.5 in
• Product Weight: 0.45 lbs
• UPC: 786679575062

Features

• Fixed shunt trip for secure remote tripping of molded case circuit breakers
• Pigtail leads simplify wiring and installation
• Compact design suitable for Frame J-K breakers
• Compatible with Eaton series C circuit breakers
