Eaton Main Terminal Box 600A Copper NEMA 3R - Electrical Distributor Switchgear Solution

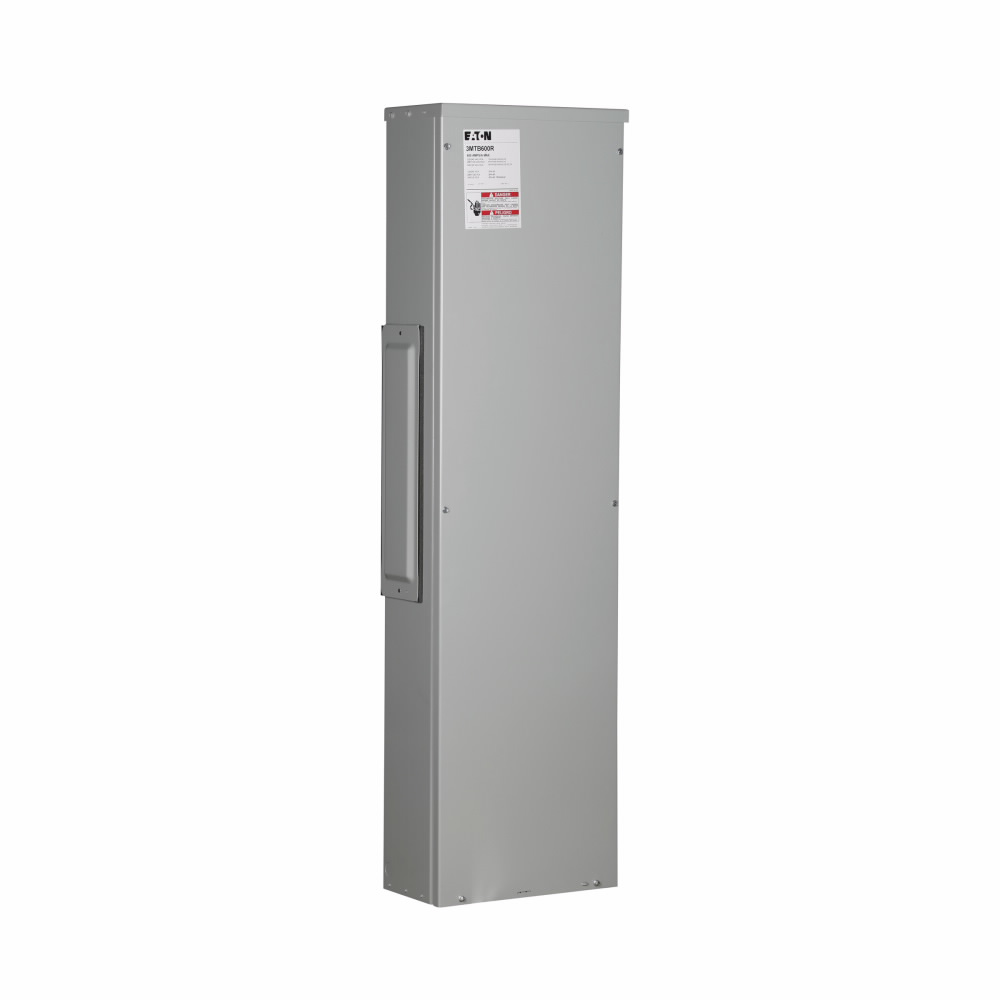

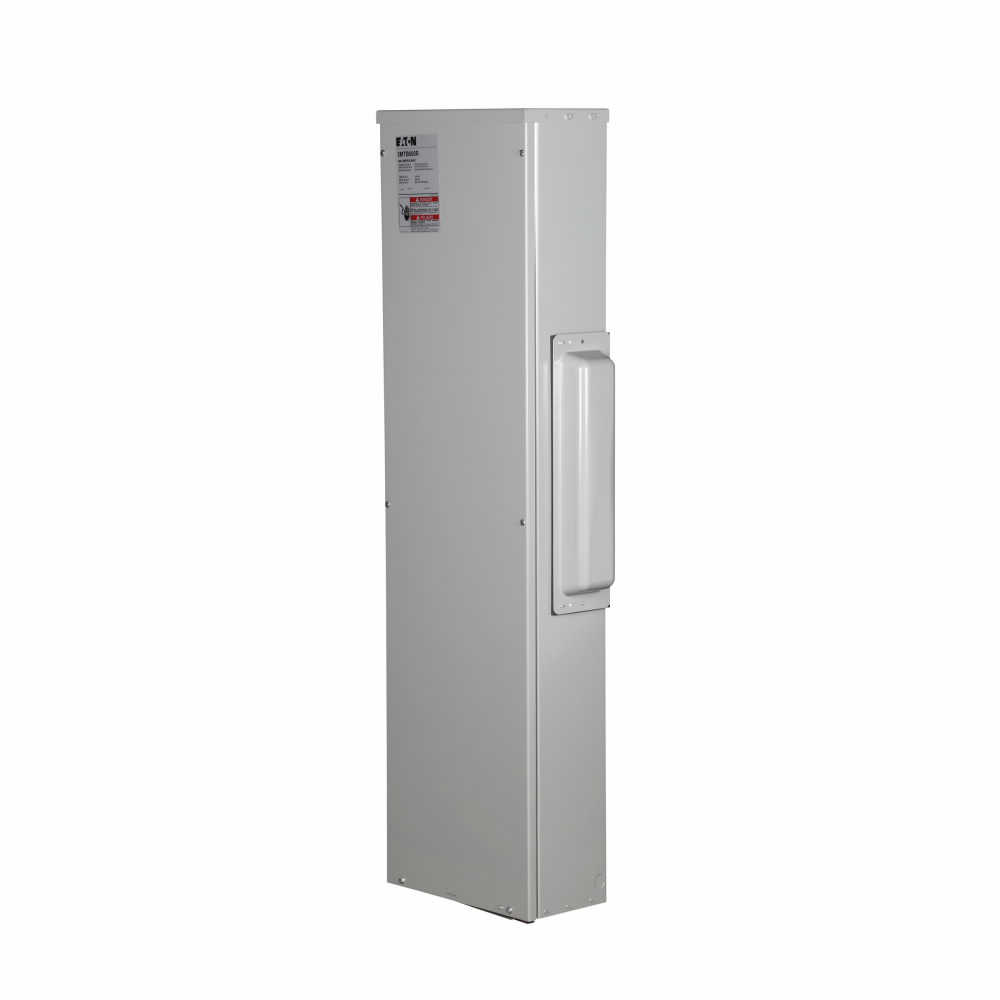

The Eaton Main Terminal Box, model 3MTB600RC, is a robust electrical distribution component designed for overhead or underground use in three-phase, four-wire systems. Rated for 600 amperes and compatible with 120/208V applications, this NEMA 3R enclosure provides reliable protection for wire and cable connections in demanding environments. Its copper bus material ensures superior conductivity and durability, making it suitable for power distribution in commercial and industrial electrical systems.

Specifications

• Manufacturer: Eaton
• Amperage: 600 amperes
• Voltage: 120/208V
• Number of Phases: 3
• Wire Configuration: Four-wire
• Bus Material: Copper
• Enclosure Rating: NEMA 3R (Raintight)
• Feed Type: Bottom
• Dimensions (W x H x L): 13.5 in x 8 in x 6.5 in
• Product Weight: 59 lbs

Features

• Heavy-duty copper bus bars for enhanced electrical conductivity and corrosion resistance
• Raintight NEMA 3R enclosure suitable for outdoor overhead and underground installations
• Bottom feed design facilitates straightforward wiring and installation
• Compact dimensions optimize space in electrical distribution setups
• Designed for use in three-phase, four-wire power distribution systems at 600A capacity
