Eaton main fusible switch, 600A, Aluminum, NEMA 3R, Overhead, Class T, 100 kAIC, Four-wire, Three-phase, Barrier kits: 400A-800A fusible switches: Bottom feed-3MFSBBK, Top feed-3MFSTB, 120/208V, (2) #4 AWG-600 kcmil
SKU: #157845
Part: #3MFS600RT
UPC: 782116007967
Eaton main fusible switch, 600A, Aluminum, NEMA 3R, Overhead, Class T, 100 kAIC, Four-wire, Three-phase, Barrier kits: 400A-800A fusible switches: Bottom feed-3MFSBBK, Top feed-3MFSTB, 120/208V, (2) #4 AWG-600 kcmil
SKU: #157845
Part: #3MFS600RT
UPC: 782116007967
Description
Eaton main fusible switch 600A - Electrical switchgear supplier

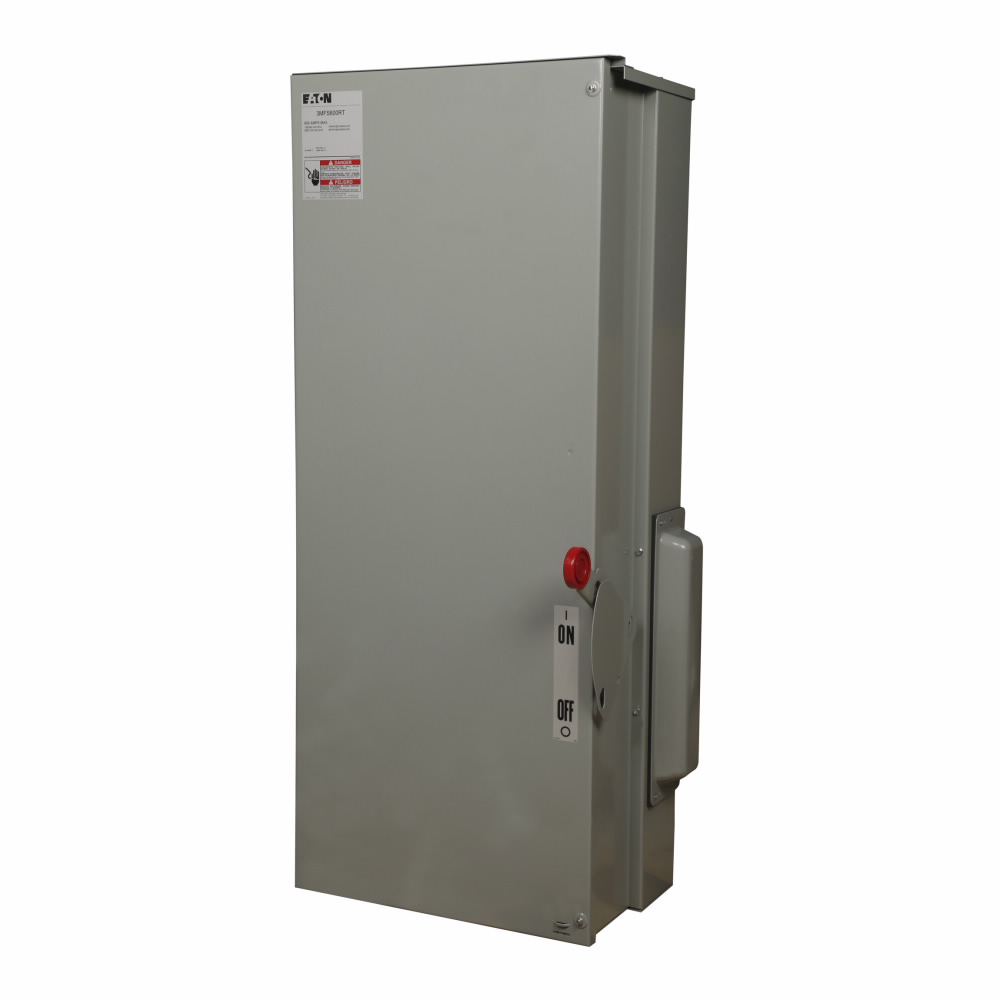

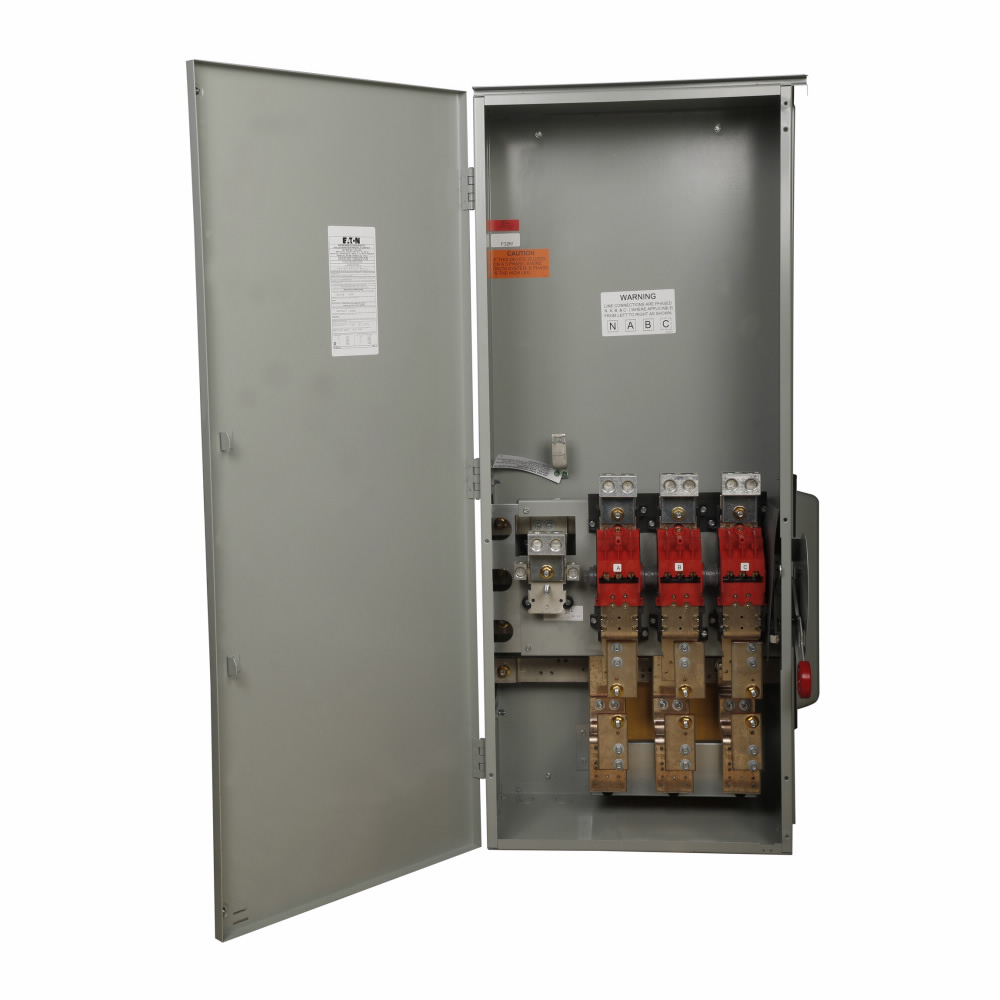

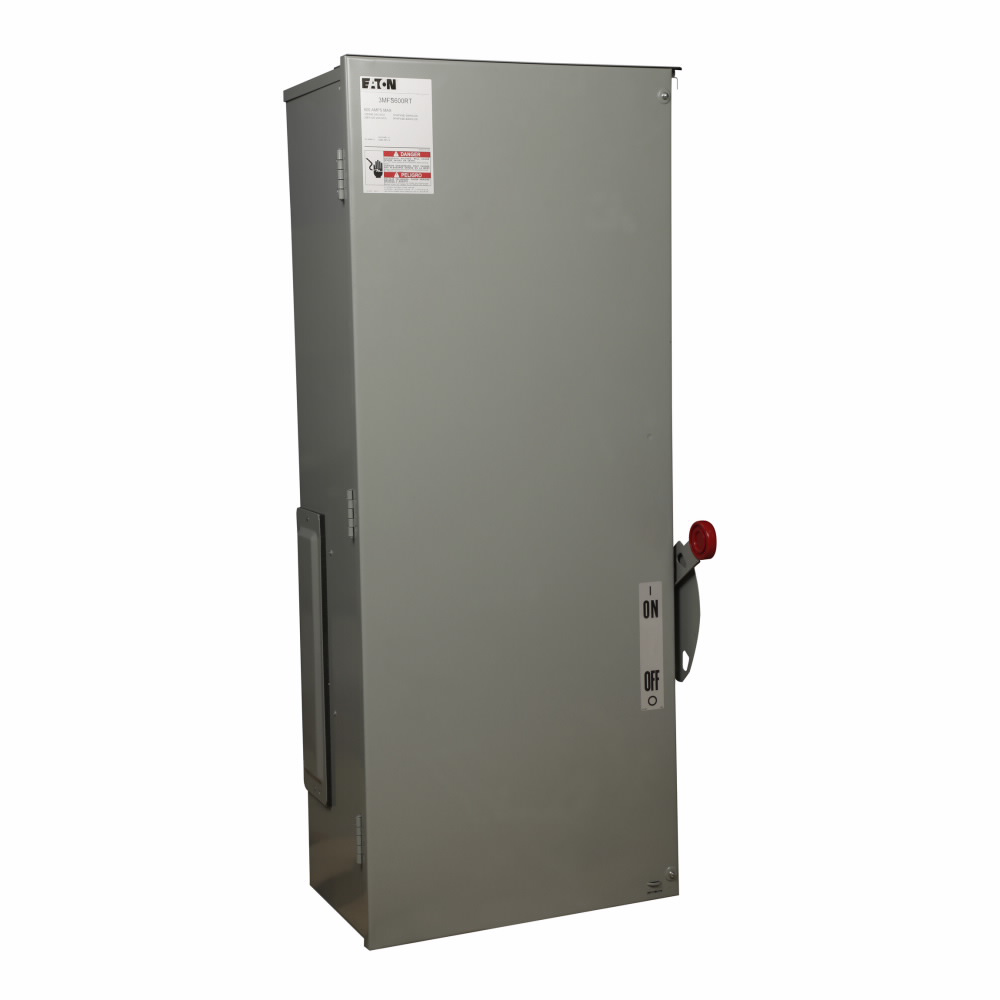

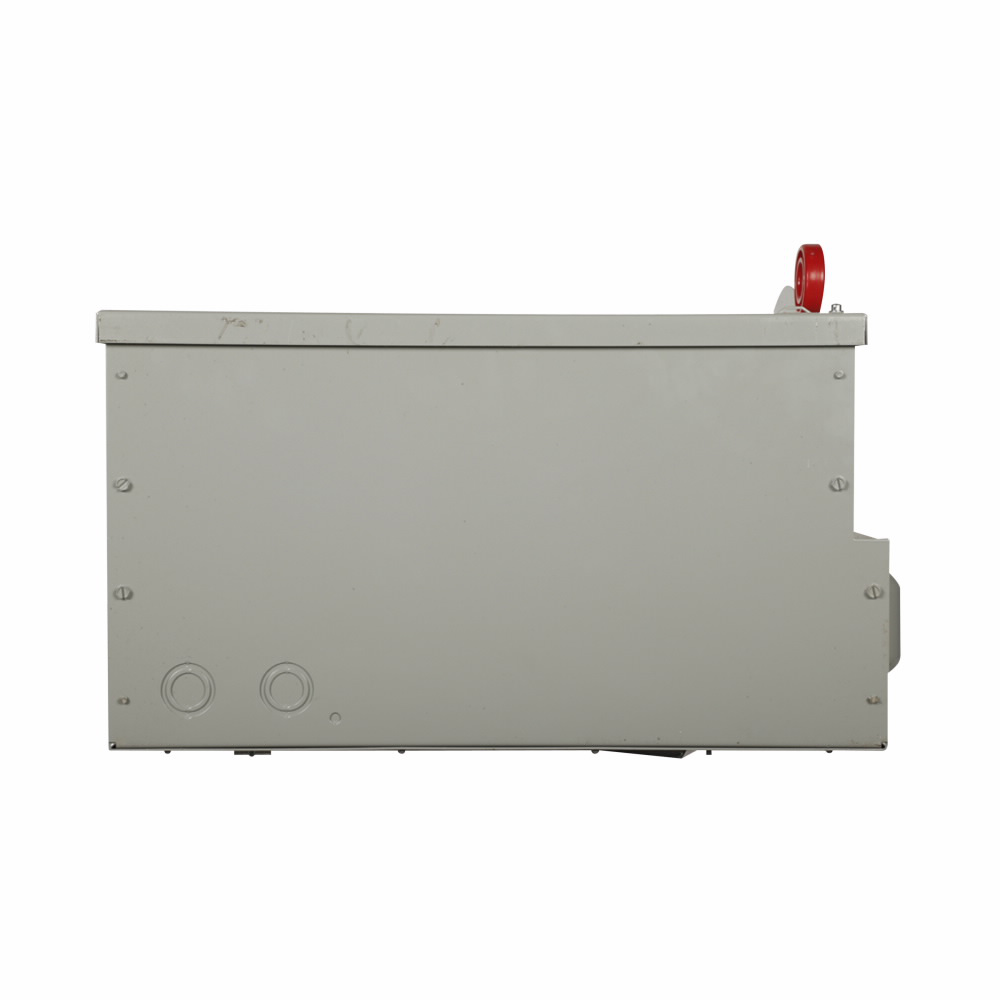

The Eaton main fusible switch, model 3MFS600RT, is a 600 ampere, three-phase, four-wire switch designed for overhead feed applications. It features a NEMA 3R rated enclosure suitable for outdoor environments, providing protection against rain and dust. Constructed with an aluminum bus material, this switch supports Class T fuses and a 100 kAIC interrupting rating, ensuring reliable circuit protection in industrial and commercial electrical distribution systems. Eaton, a trusted electrical distributor, offers this switch as part of its comprehensive lighting solutions and wire and cable product range.
Specifications
- Amperage: 600 amperes
- Number of Phases: 3
- Enclosure: 3R (NEMA 3R)
- Feed Type: Overhead
- Bus Material: Aluminum
- Dimensions (W x H x L): 16.64 in x 16 in x 22.54 in
- Interrupting Rating: 100 kAIC
- Voltage Rating: 120/208V
- Manufacturer Part #: 3MFS600RT
- UPC: 782116007967
Features
- Class T fuse compatible for effective overcurrent protection
- Four-wire, three-phase configuration for balanced power distribution
- Barrier kits available for 400A-800A fusible switches (bottom feed: 3MFSBBK, top feed: 3MFSTB)
- Durable aluminum bus material for corrosion resistance and conductivity
- Weather-resistant NEMA 3R enclosure designed for overhead installation
- Supports wire sizes from (2) #4 AWG to 600 kcmil
