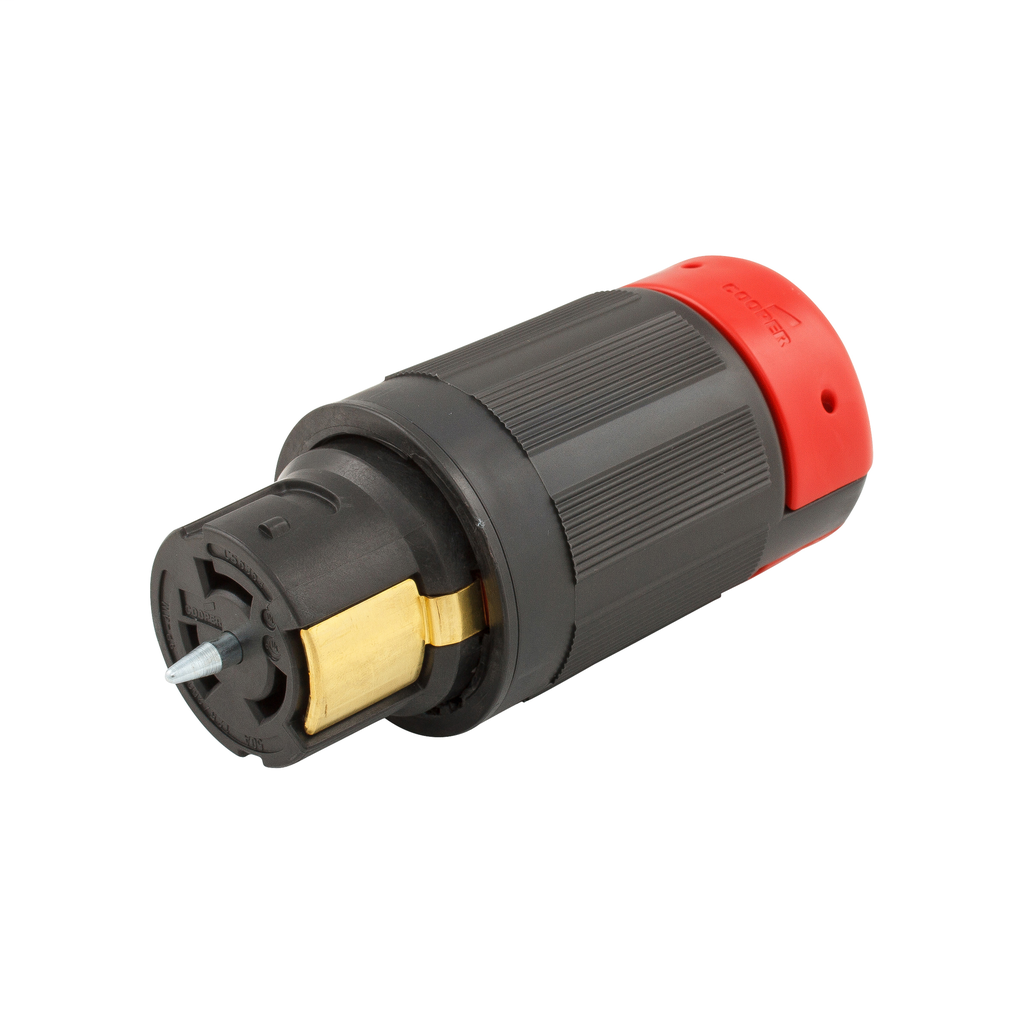

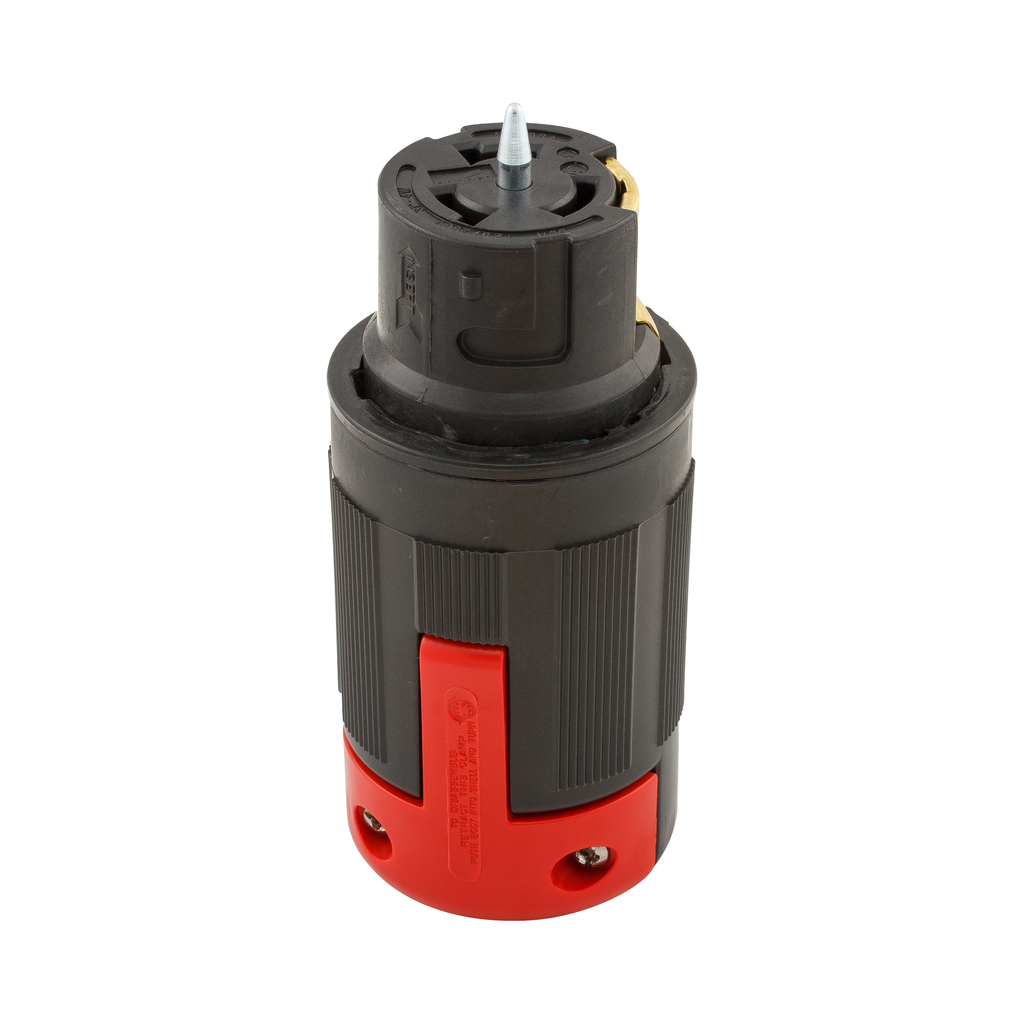

Eaton Locking Connector 50 Amperes

The Eaton locking connector is a 3-pole, 4-wire grounding device designed for industrial and commercial electrical applications. Manufactured by Cooper Wiring Devices, it supports 50 amperes at 125/250V AC and complies with California standard locking device requirements. This connector is suitable for use in temporary power setups, generators, and heavy equipment, making it an essential component for electrical distributors and switchgear suppliers requiring reliable wire and cable connections.

Specifications

• Amperage: 50 amperes
• Number of Poles: 3
• Number of Wires: 4
• Material: Nylon
• Color: Black
• Product Weight: 1.05 lbs
• Manufacturer Part #: CS6364EX

Features

• Pro grip lock for visual confirmation of proper assembly
• Deep tapered wire wells accommodate up to #4 AWG UL wire, ideal for long cable runs
• Glass-filled nylon body for superior strength and heat resistance
• Unique 3-step assembly process for pro grip plugs and connectors
• Single-piece heavy-duty plated mounting strap for durability
• Stainless steel tri-combo assembly screws
• Receptacles use rugged, single-piece plated mounting strap for corrosion resistance
• Meets UL94 V0 flammability rating and temperature range -40ºC to 105ºC (-40ºF to 221ºF)
• cULus Listed to UL498 and CSA certified to C22.2 No. 42
