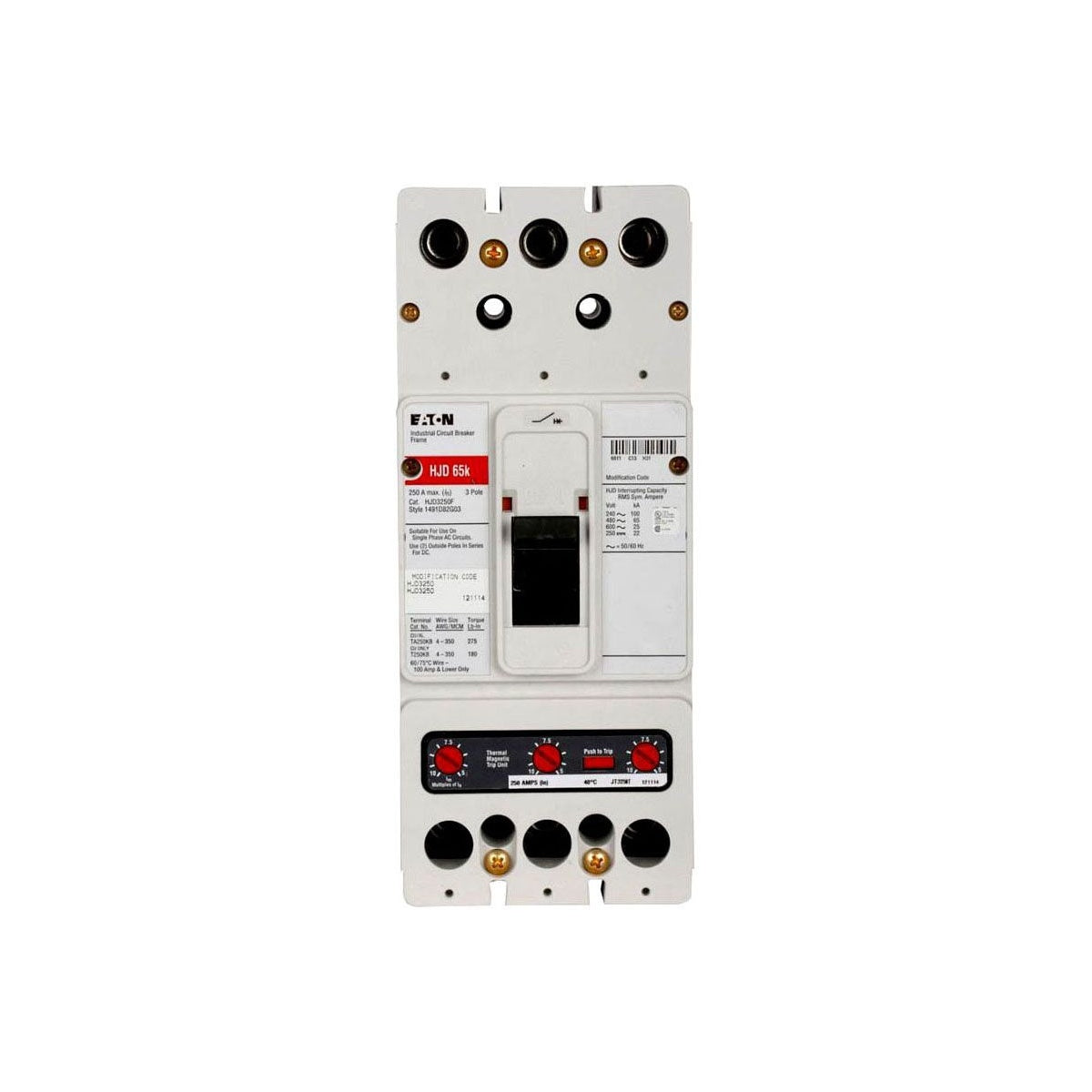

EATON JD3175 EATON SERIES C COMPLETE MOLDED CASE CIRCUIT BREAKER - Molded Case Circuit Breaker

The EATON JD3175 is a Series C complete molded case circuit breaker designed for reliable circuit protection in commercial and industrial electrical systems. This J-Frame breaker is rated for 175 amperes and is suitable for use in applications requiring HACR-rated circuit breakers. It is factory assembled as a complete breaker, including frame, trip unit, and terminals, ensuring consistent performance and ease of installation. The JD3175 is ideal for electrical distributors, lighting solutions providers, wire and cable suppliers, and switchgear suppliers seeking robust circuit protection devices.

Specifications

• Manufacturer: Eaton
• Manufacturer Part Number: JD3175
• Frame Type: J-Frame
• Amperage Rating: 175 Amperes
• Number of Poles: 3 (Three-Pole)
• Interrupting Capacity: 65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600 VAC
• UL 489 Current Limiting: 42.6 kA at 240 V, 40 kA at 480 V, 31.9 kA at 600 V
• Dimensions (WxHxD): 4.13 in x 10.00 in x 4.06 in (105 mm x 254 mm x 104 mm)
• Weight: Approximately 9.55 lbs (4.33 kg)
• Trip Unit Type: Thermal-Magnetic, Adjustable Magnetic Trip (5‚Äì10 times continuous ampere rating)
• HACR Rated: Yes

Features

• Available as factory assembled complete breaker with frame, trip unit, and terminals
• Non-interchangeable trip units suitable for reverse feed use
• Thermal-magnetic trip unit with adjustable magnetic trip settings
• UL 489 recognized with high interrupting capacity ratings for enhanced safety
• Compact J-Frame design suitable for a variety of electrical distribution applications
• Supports three-pole configurations for three-phase electrical systems
