Eaton Heavy duty single-throw non-fused safety switch, Single-throw, 60A, NEMA 4X, Stainless steel, Non-fusible, Three-pole, Three-wire, 10 at 240 Vac TD 1 Ph, 20 at 480 Vac TD 1 Ph, 20 at 240 Vac TD 3 Ph, 50 at 480 Vac TD 3 Ph
SKU: #163617
Part: #DH362UWK
UPC: 782113206172
Eaton Heavy duty single-throw non-fused safety switch, Single-throw, 60A, NEMA 4X, Stainless steel, Non-fusible, Three-pole, Three-wire, 10 at 240 Vac TD 1 Ph, 20 at 480 Vac TD 1 Ph, 20 at 240 Vac TD 3 Ph, 50 at 480 Vac TD 3 Ph
SKU: #163617
Part: #DH362UWK
UPC: 782113206172
Description

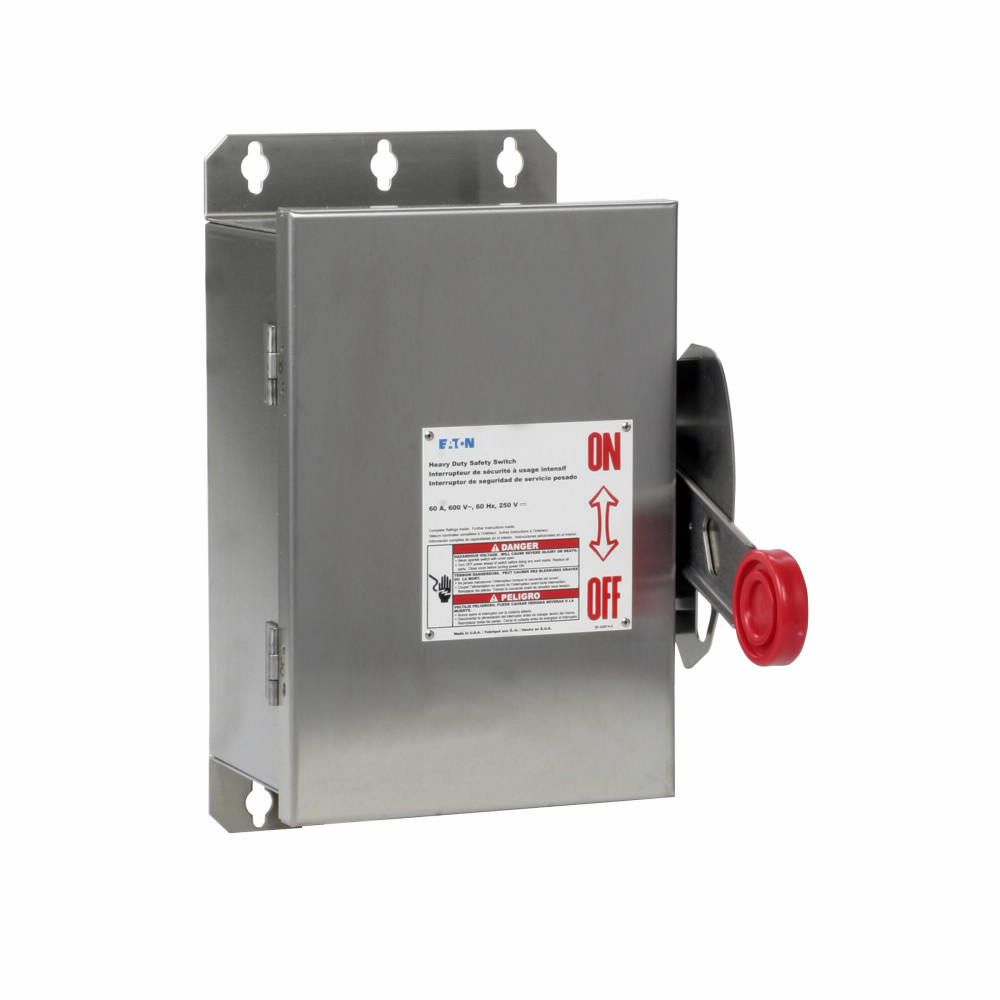

Eaton Heavy Duty Single-Throw Non-Fused Safety Switch – Electrical Distributor
The Eaton Heavy Duty Single-Throw Non-Fused Safety Switch is designed for industrial and commercial power distribution applications. This switch provides reliable manual disconnect functionality for electrical circuits, suitable for use in demanding environments requiring robust lighting solutions, wire and cable management, and switchgear supply. It features a stainless steel enclosure rated NEMA 4X for corrosion resistance and durability, making it ideal for harsh or wet locations.
Specifications
- Manufacturer: Eaton
- Manufacturer Part #: DH362UWK
- Amperage: 60 amperes
- Poles: Three-pole
- Wires: Three-wire
- Voltage Ratings: 10A at 240 Vac TD 1 Phase, 20A at 480 Vac TD 1 Phase, 20A at 240 Vac TD 3 Phase, 50A at 480 Vac TD 3 Phase
- Enclosure Material: Stainless Steel
- NEMA Rating: 4X
- Weight: 14 lbs
- Dimensions (WxHxD): 7.73 in x 19.08 in x 10.22 in
- Type: Non-fusible, single-throw safety switch
Features
- Heavy-duty design for industrial and commercial electrical distribution
- Non-fusible switch type provides manual circuit disconnect without fusing
- Corrosion-resistant stainless steel enclosure suitable for outdoor or wet locations
- Three-pole, three-wire configuration supports 240 and 480 Vac applications
- NEMA 4X enclosure rating ensures protection against dust, water, and corrosion
- Compact dimensions facilitate installation in tight spaces
- Compatible with Eaton’s range of electrical distribution and switchgear products
