Eaton Heavy duty single-throw non-fused safety switch, Single-throw, 60A, NEMA 3R, Painted galvanized steel, Non-fusible, Three-wire, 10 at 240 Vac TD 1 Ph, 20 at 480 Vac TD 1 Ph, 25 at 600 Vac TD 1 Ph, 20 at 240 Vac TD 3 Ph
SKU: #163603
Part: #DH362URK
UPC: 782113206028
Eaton Heavy duty single-throw non-fused safety switch, Single-throw, 60A, NEMA 3R, Painted galvanized steel, Non-fusible, Three-wire, 10 at 240 Vac TD 1 Ph, 20 at 480 Vac TD 1 Ph, 25 at 600 Vac TD 1 Ph, 20 at 240 Vac TD 3 Ph
SKU: #163603
Part: #DH362URK
UPC: 782113206028
Description

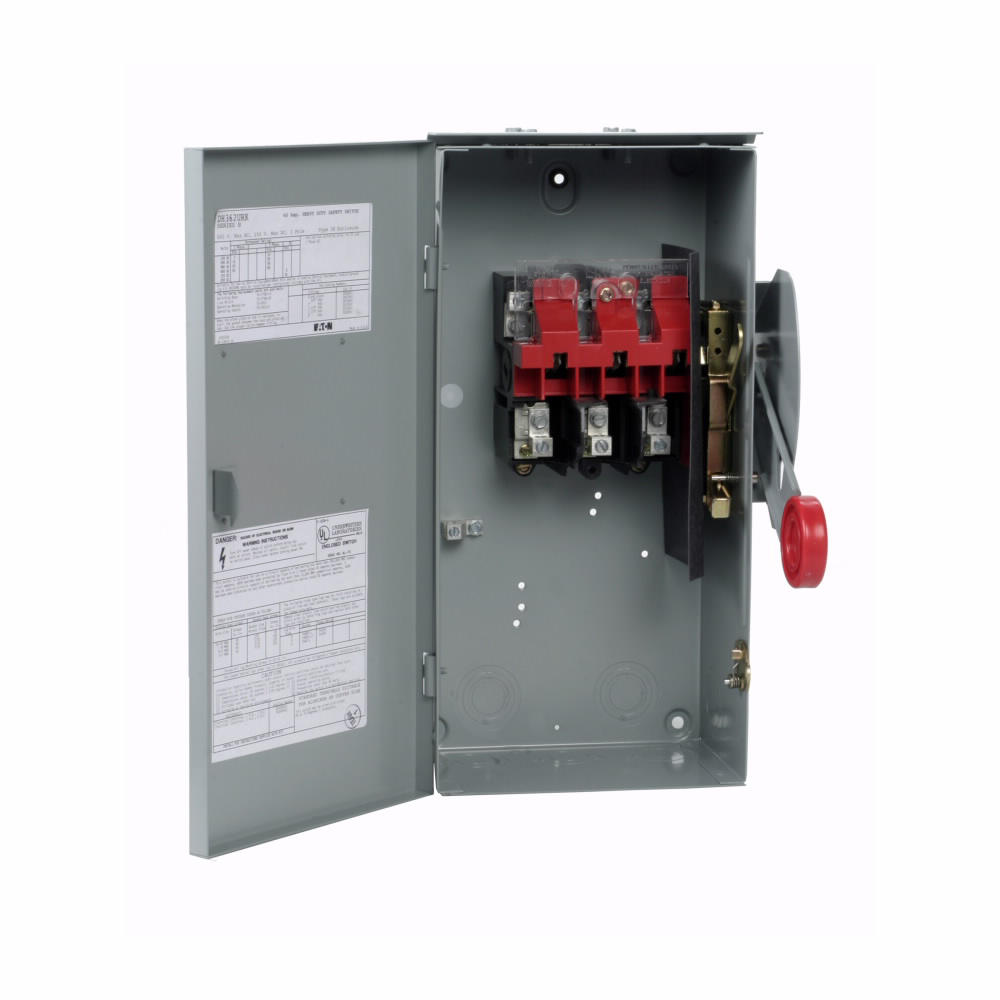

Eaton Heavy Duty Single-Throw Non-Fused Safety Switch 60A NEMA 3R
The Eaton Heavy Duty Single-Throw Non-Fused Safety Switch is designed for robust industrial and commercial electrical distribution applications. This switch provides reliable manual disconnect functionality for circuits up to 60 amperes and is suitable for use in wire and cable systems requiring durable and safe switching solutions. With a NEMA 3R enclosure rating, the switch is suitable for outdoor and indoor use, protecting against rain, sleet, and external ice formation. Eaton’s safety switch is constructed from painted galvanized steel, ensuring corrosion resistance and mechanical strength. It is a non-fusible, three-wire switch capable of handling various voltage ratings, making it an essential component for electrical distributors and switchgear suppliers seeking dependable lighting solutions and power control equipment.
Specifications
- Amperage: 60 amperes
- Enclosure: NEMA 3R
- Enclosure Material: Painted Galvanized Steel
- Dimensions (HxWxL): 8.5 in x 9.5 in x 16.5 in
- Weight: 16 lbs
- Voltage Ratings: 10A at 240 Vac TD 1 Ph, 20A at 480 Vac TD 1 Ph, 25A at 600 Vac TD 1 Ph, 20A at 240 Vac TD 3 Ph
- Manufacturer Part Number: DH362URK
- Switch Type: Single-Throw, Non-Fusible
- Wiring: Three-wire
Features
- Heavy-duty construction for industrial applications
- Non-fusible design providing manual disconnect capability without fuse protection
- Painted galvanized steel enclosure for enhanced durability and corrosion resistance
- NEMA 3R rated enclosure suitable for outdoor use and protection against environmental elements
- Versatile voltage and phase compatibility for various power distribution needs
- Compact dimensions facilitating installation in confined spaces
