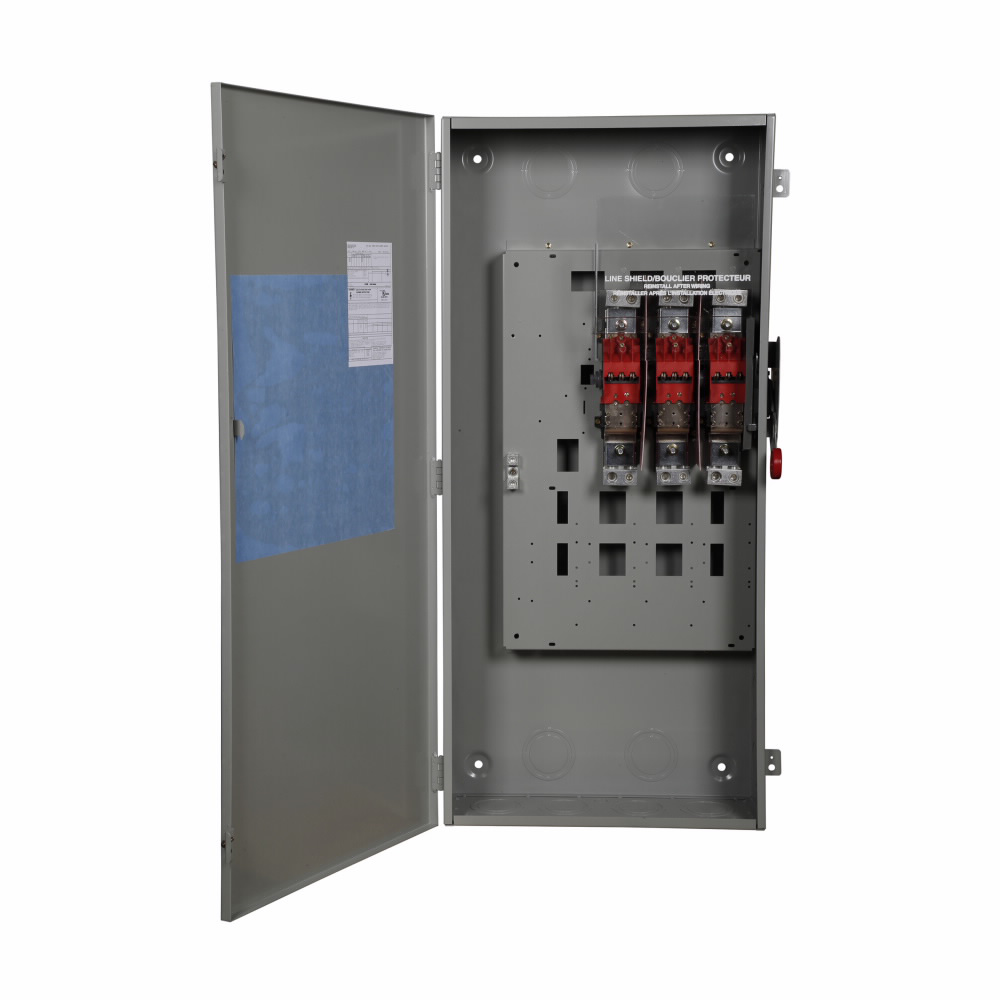

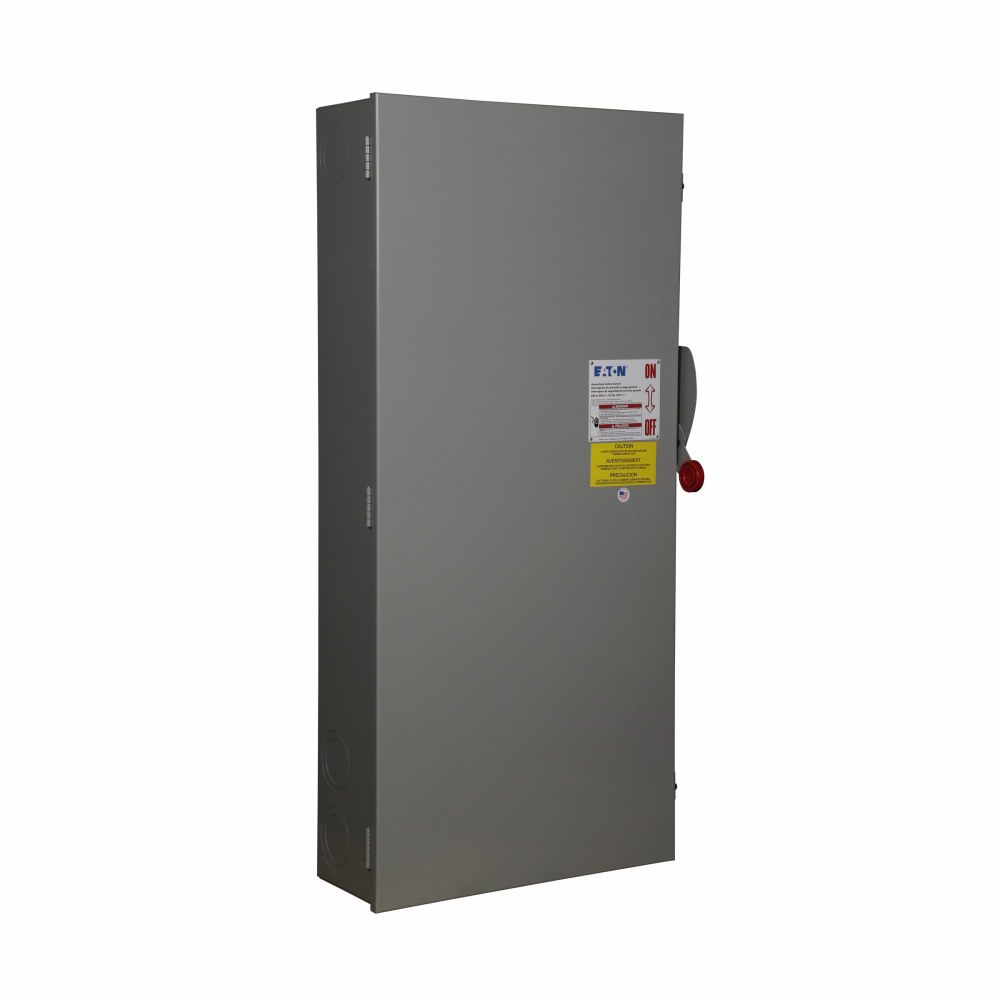

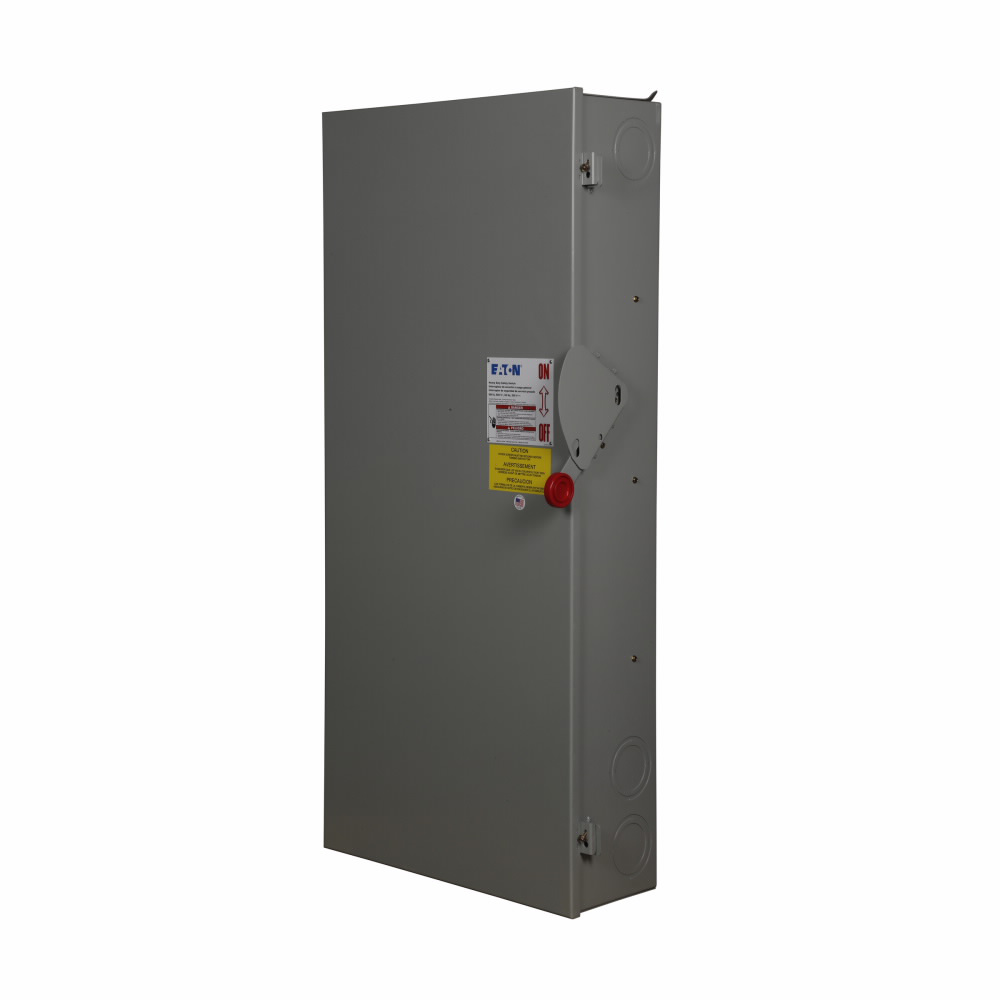

Eaton Heavy duty single-throw non-fused safety switch, Single-throw, 600A, NEMA 1, Painted steel, , Non-fusible, Three-pole, Three-wire, 200 at 240 Vac TD 3 Ph, 400 at 480 Vac TD 3 Ph, 500 at 600 Vac TD 3 Ph
SKU: #163898
Part: #DH366UGK
UPC: 782113207575
Eaton Heavy duty single-throw non-fused safety switch, Single-throw, 600A, NEMA 1, Painted steel, , Non-fusible, Three-pole, Three-wire, 200 at 240 Vac TD 3 Ph, 400 at 480 Vac TD 3 Ph, 500 at 600 Vac TD 3 Ph
SKU: #163898
Part: #DH366UGK
UPC: 782113207575
Next day delivery
Description
Eaton Heavy Duty Single-Throw Non-Fused Safety Switch - 600A Electrical Distributor
The Eaton Heavy Duty single-throw non-fused safety switch is designed for reliable power distribution and control in commercial and industrial applications. This switch is suitable for use in lighting solutions, wire and cable management, and as a component in switchgear assemblies. It features a robust painted steel enclosure rated for NEMA 1 environments, providing durability and protection for internal components. The switch supports three-pole, three-wire configurations and is rated for 600 amperes, accommodating voltages of 200 at 240 Vac TD 3 phase, 400 at 480 Vac TD 3 phase, and 500 at 600 Vac TD 3 phase.
Specifications
- Manufacturer: Eaton
- Manufacturer Part #: DH366UGK
- Amperage: 600 amperes
- Enclosure Material: Painted Steel
- Enclosure Rating: NEMA 1
- Switch Type: Single-throw, Non-fusible
- Poles: Three-pole
- Wires: Three-wire
- Voltage Ratings: 200 at 240 Vac TD 3 Phase, 400 at 480 Vac TD 3 Phase, 500 at 600 Vac TD 3 Phase
- Dimensions (W x H x D): 23 in x 63 in x 12.75 in
- Product Weight: 140 lbs
- UPC: 782113207575
Features
- Heavy-duty construction suitable for demanding electrical distribution applications
- Painted steel enclosure for corrosion resistance and durability in indoor environments
- Non-fusible design for use in applications requiring external overcurrent protection
- Three-pole, three-wire configuration supports common commercial power distribution needs
- Compatible with Eaton’s extensive line of accessories and modifications via the Flex Center
- Designed for easy integration into switchgear and lighting control systems
- Compliant with NEMA 1 standards ensuring protection against dust and light contact
