Eaton Heavy duty single-throw non-fused safety switch, Single-throw, 30A, NEMA 3R, Painted galvanized steel, , Non-fusible, Two-pole, Two-wire, 3 at 240 Vac TD 1 Ph, 7.5 at 480 Vac TD 1 Ph, 10 at 600 Vac TD 1 Ph, 15 at 600 Vdc
SKU: #163053
Part: #DH261URK
UPC: 786685176635
Eaton Heavy duty single-throw non-fused safety switch, Single-throw, 30A, NEMA 3R, Painted galvanized steel, , Non-fusible, Two-pole, Two-wire, 3 at 240 Vac TD 1 Ph, 7.5 at 480 Vac TD 1 Ph, 10 at 600 Vac TD 1 Ph, 15 at 600 Vdc
SKU: #163053
Part: #DH261URK
UPC: 786685176635
Total Price: $343.55 per each Sold in increments of 1 each
Next day delivery
Description

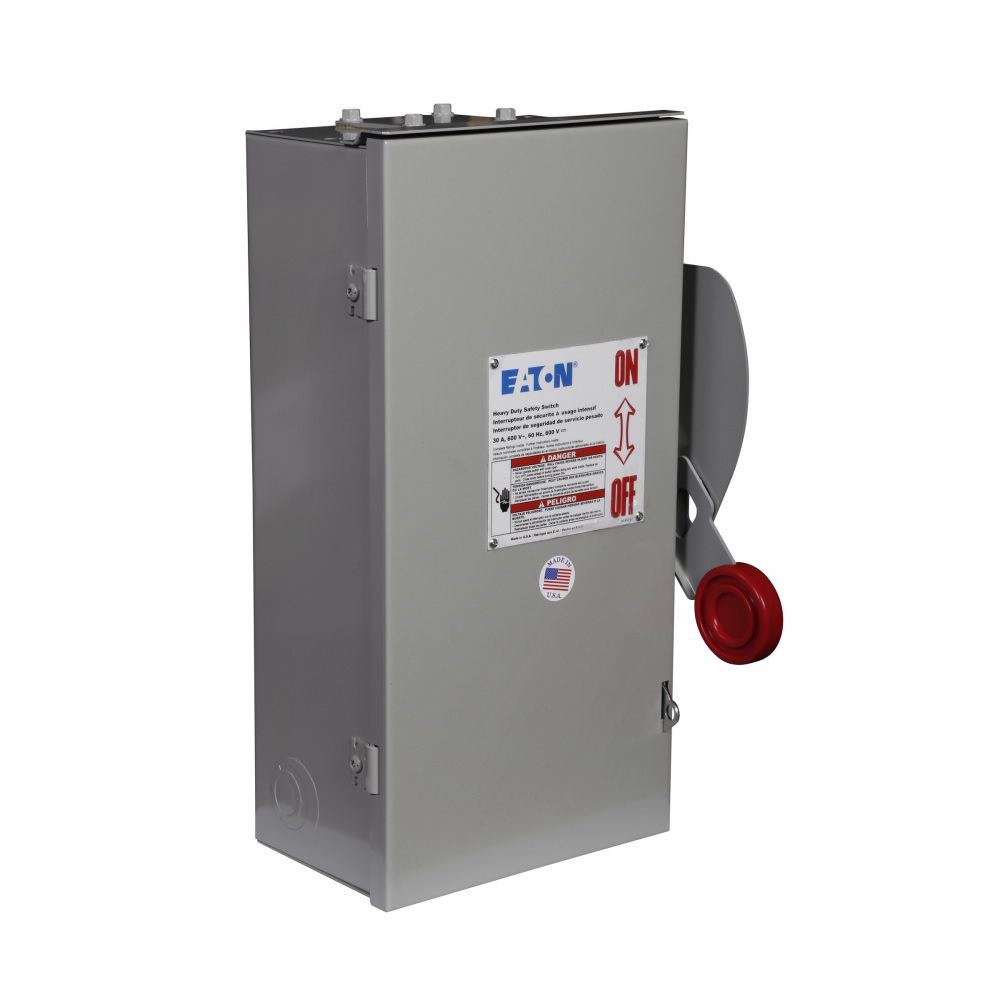

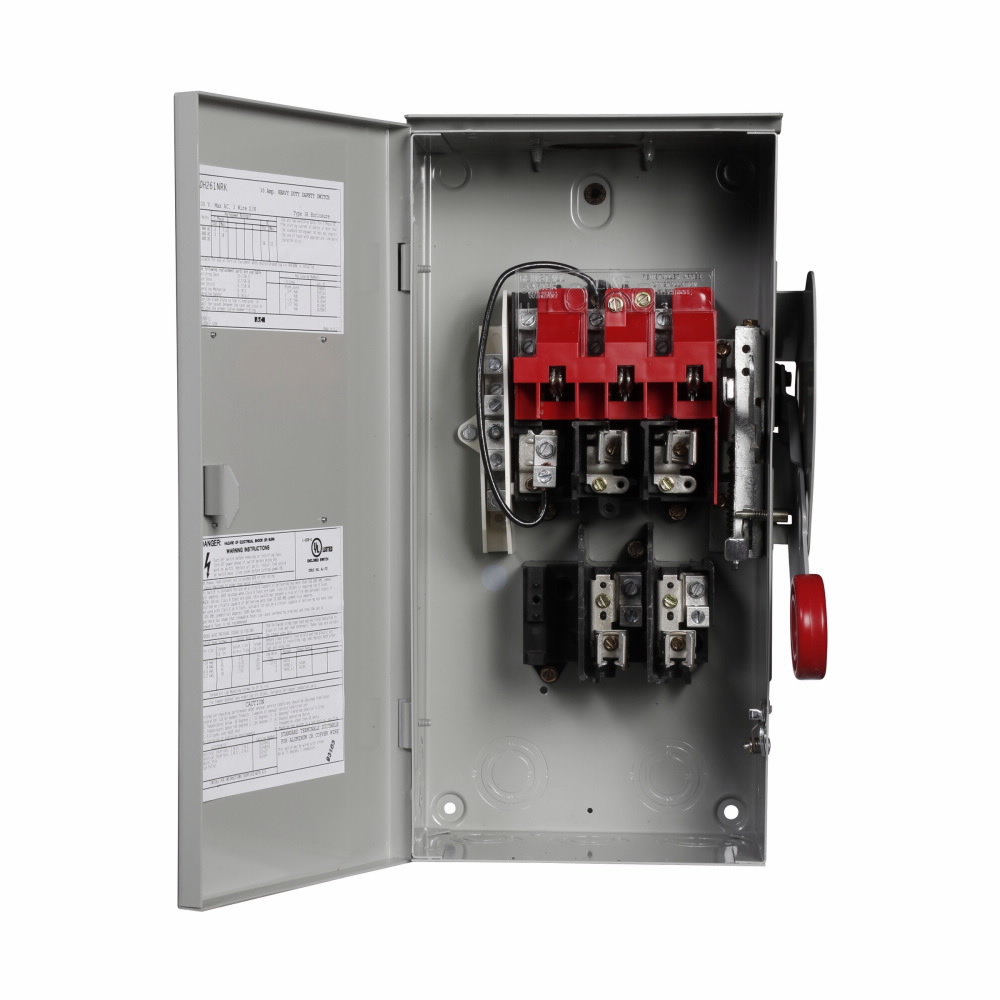

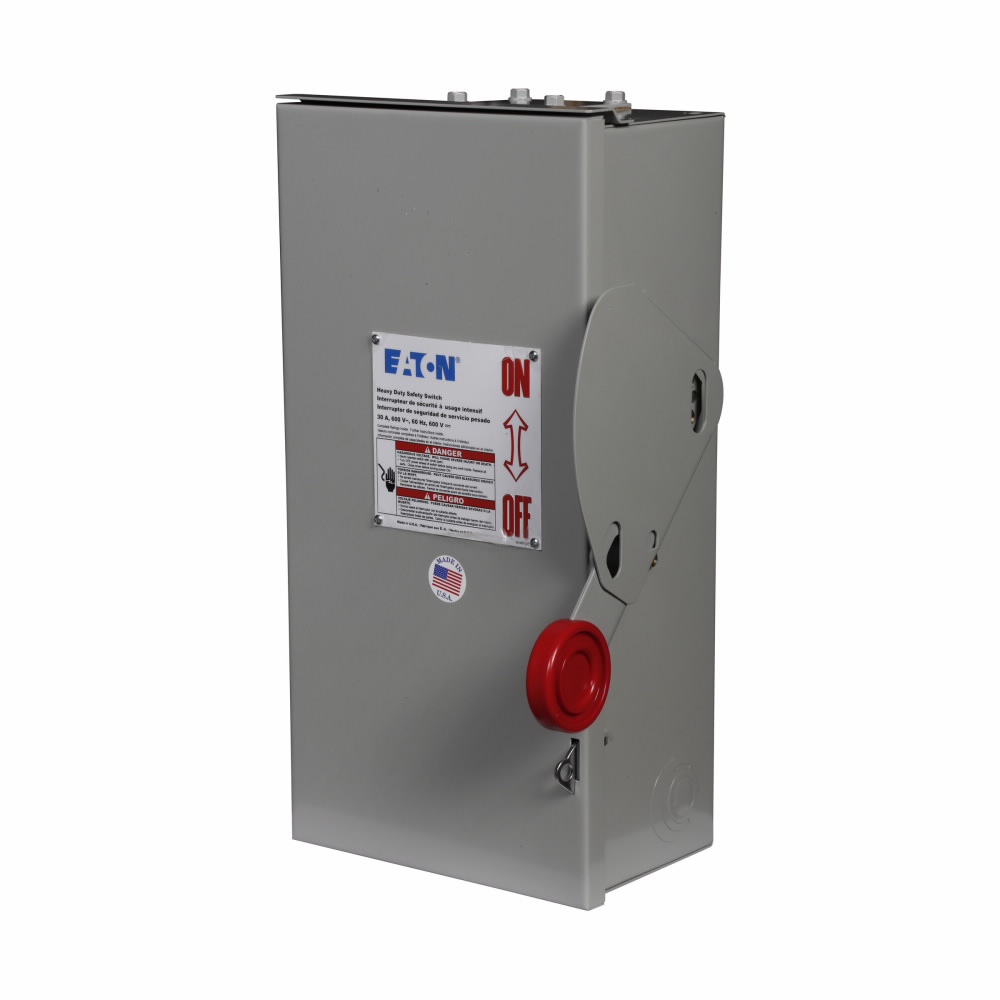

Eaton Heavy Duty Single-Throw Non-Fused Safety Switch – Electrical Distributor Lighting Solutions
This Eaton Heavy Duty single-throw non-fused safety switch is designed for reliable power distribution and control in commercial and industrial applications. It features a two-pole, two-wire configuration suitable for 3-phase, 240 Vac systems, providing robust switching capabilities for electrical distributors, lighting solutions, and wire and cable installations. The switch enclosure is rated NEMA 3R, making it suitable for outdoor or wet environments, and is constructed from painted galvanized steel for durability and corrosion resistance.
Specifications
- Amperage: 30 amperes
- Number of Poles: 2
- Enclosure: NEMA 3R
- Enclosure Material: Painted Galvanized Steel
- Voltage Ratings: 3 at 240 Vac TD 1 Ph, 7.5 at 480 Vac TD 1 Ph, 10 at 600 Vac TD 1 Ph, 15 at 600 Vdc
- Dimensions (W x H x L): 8.76 in x 14.14 in x 10.22 in
- Product Weight: 17 lbs
- Manufacturer Part #: DH261URK
Features
- Heavy-duty single-throw, non-fusible design for reliable circuit control
- Two-pole, two-wire configuration optimized for 240 Vac single-phase applications
- Painted galvanized steel enclosure for enhanced corrosion resistance
- NEMA 3R rating for outdoor and wet location suitability
- Robust operating handle with clear ON/OFF visual indicators
- Compatible with Eaton’s range of accessories and modifications from the Flex Center for customized applications
