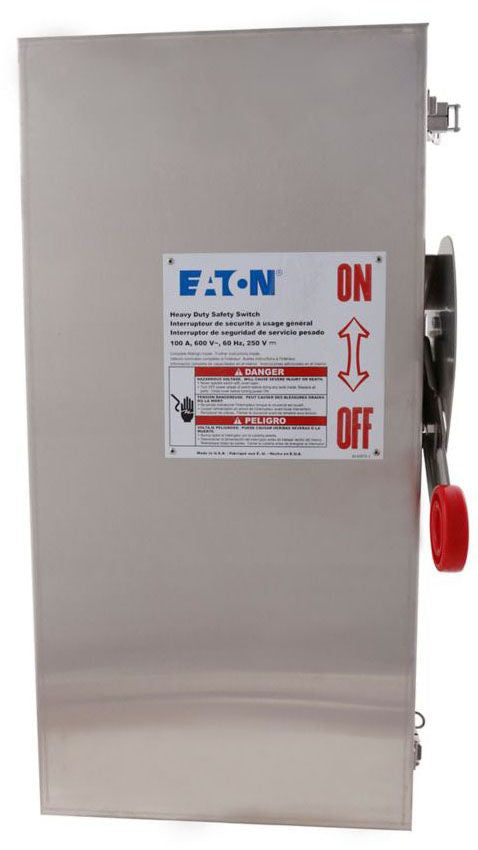

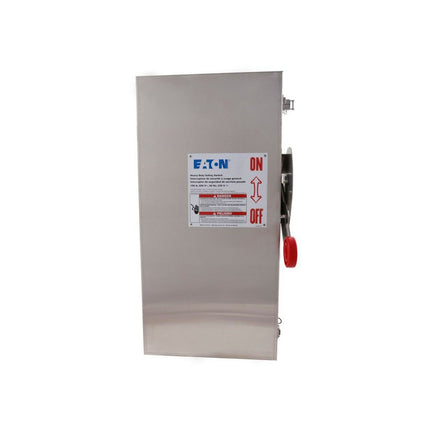

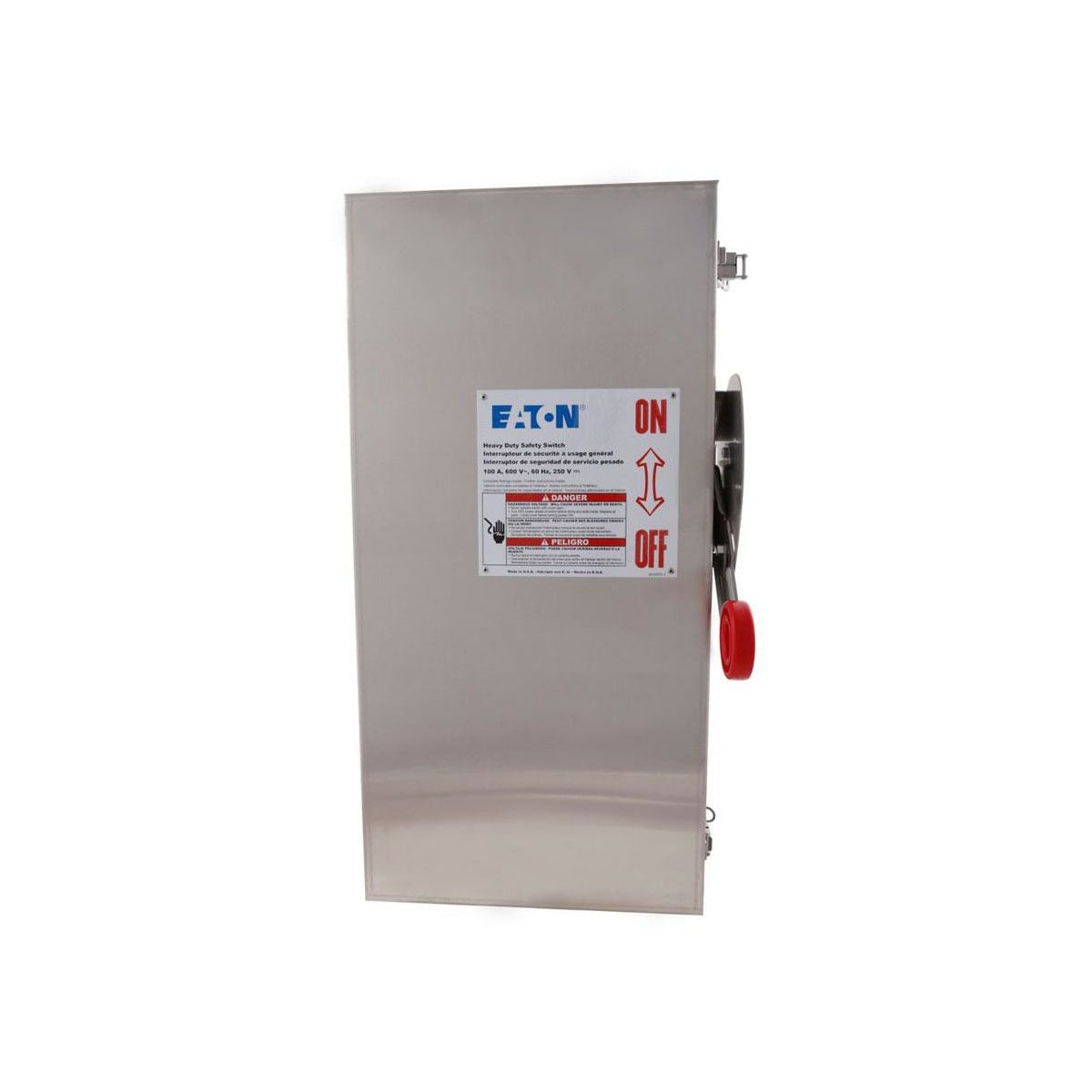

Eaton heavy duty single-throw non-fused safety switch

Name: Eaton heavy duty single-throw non-fused safety switch
Brand: Cutler-Hammer
SKU: 163516
Price: 2991.49 USD
Availability: OutOfStock

SKU: #163516

Part: #DH361UWK

UPC: 782113205724

Cutler-Hammer

Eaton heavy duty single-throw non-fused safety switch

SKU: #163516

Part: #DH361UWK

UPC: 782113205724

Product form

Out of stock, Call 1-866-853-4768 for availability and price. IIn Stock
Monday to Friday we ship in stock items within 1 business day. Same day shipping cut off is 1pm ET.

Out of Stock
Out of stock items are generally available to ship within 2-3 business days unless specified. Contact us for specific availability.

Special Order
Special order items will ship in about 7 business days.

Free pickup available

Next day delivery

Description

Specifications

Height: 13.39 IN
Length: 10.22 IN
Width: 7.73 IN
Weight: 17 LB
Type: Single-throw
Amperage Rating: 30A
Enclosure: NEMA 4X
Enclosure Material: Stainless steel
Fuse Configuration: Non-fusible
Number Of Poles: Three-pole
Number Of Wires: Three-wire
Product Category: Heavy Duty, Non-Fusible
Voltage Rating: 600V
Max Hp Rating: 7.5 at 480 Vac TD 1 Ph, 10 at 600 Vac TD 1 Ph, 10 at 240 Vac TD 3 Ph, 20 at 480 Vac TD 3 Ph, 30 at 600 Vac TD 3 Ph, 5 at 250 Vdc
Notes: Suitable for service entrance use with a neutral or ground lug kit installed
