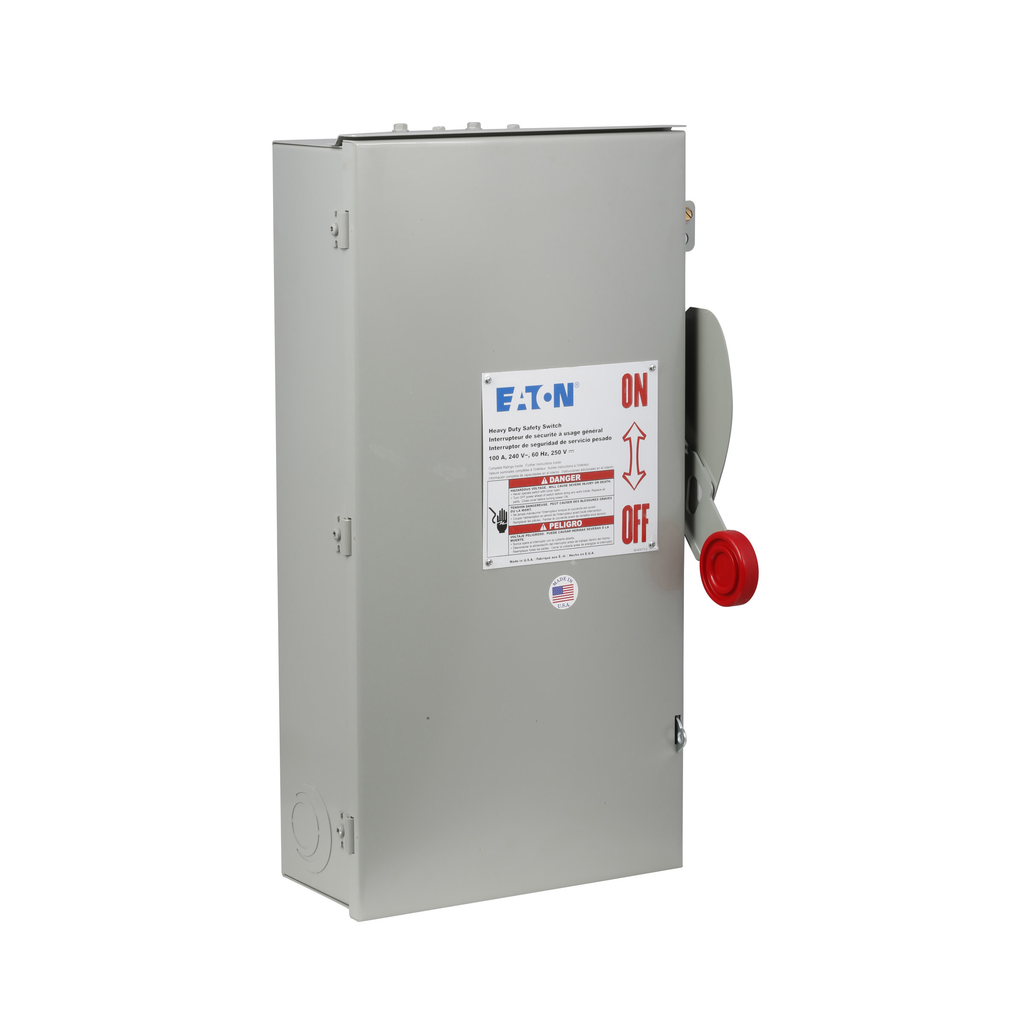

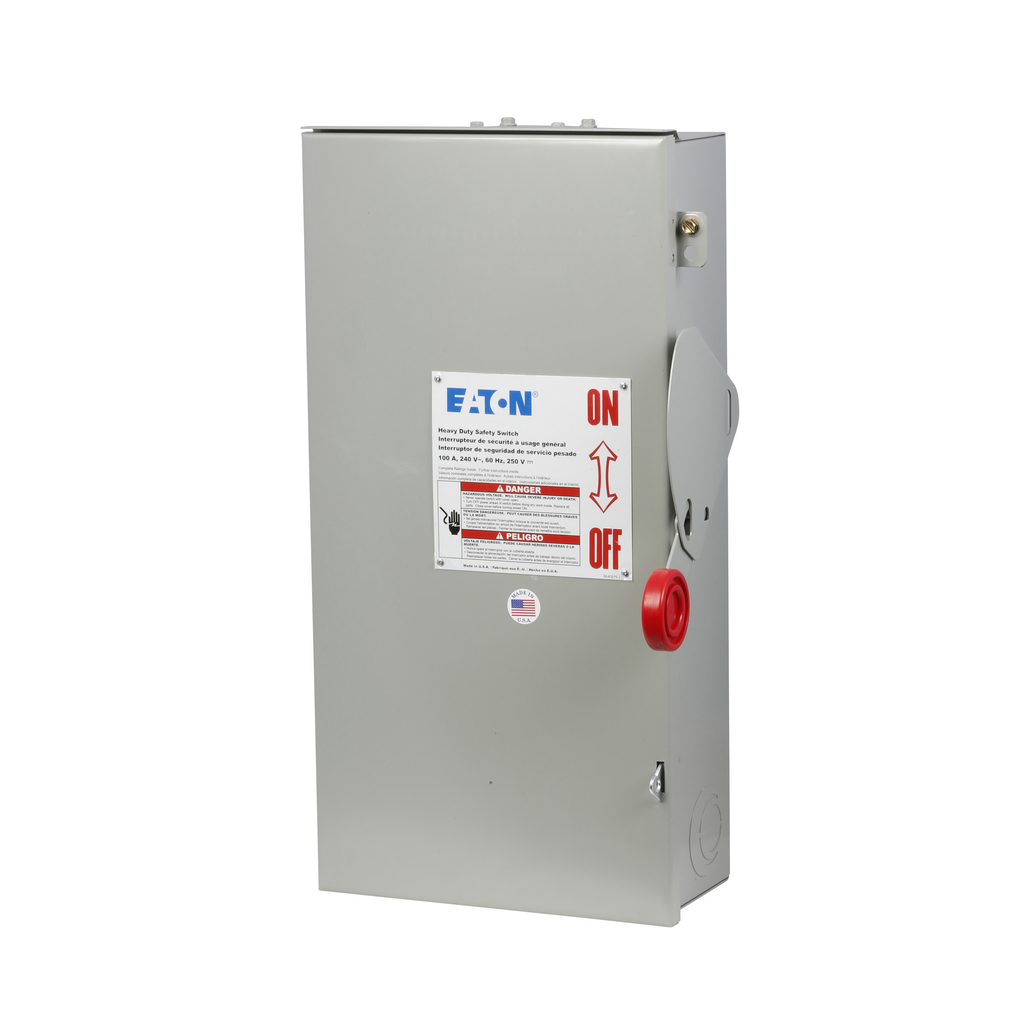

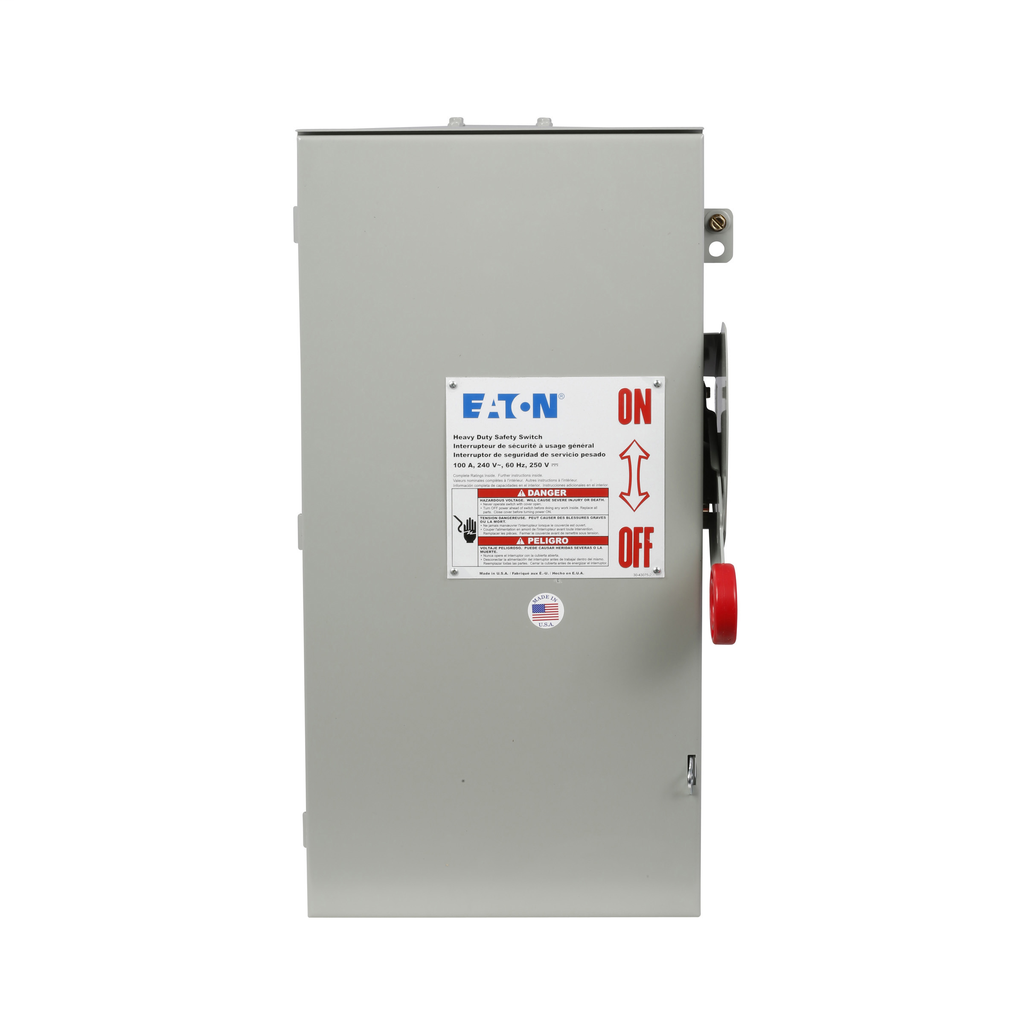

Eaton heavy duty single-throw non-fused safety switch

Name: Eaton heavy duty single-throw non-fused safety switch
Brand: Cutler-Hammer
SKU: 163711
Price: 541.35 USD
Availability: OutOfStock

SKU: #163711

Part: #DH363URK

UPC: 782113206479

Cutler-Hammer

Eaton heavy duty single-throw non-fused safety switch

SKU: #163711

Part: #DH363URK

UPC: 782113206479

Product form

Out of stock, Call 1-866-853-4768 for availability and price. Most out of stock items can be ordered and are usually available to ship in 1-3 business days.

Free pickup available

Next day delivery

Description

Specifications

Height: 8.5 IN
Length: 22.5 IN
Width: 12.5 IN
Weight: 22 LB
Type: Single-throw
Amperage Rating: 100A
Enclosure: NEMA 3R
Enclosure Material: Painted galvanized steel
Fuse Configuration: Non-fusible
Number Of Poles: Three-pole
Number Of Wires: Three-wire
Product Category: Heavy Duty, Non-Fusible
Voltage Rating: 600V
Max Hp Rating: 20 at 240 Vac TD 1 Ph, 40 at 480 Vac TD 1 Ph, 50 at 600 Vac TD 1 Ph, 40 at 240 Vac TD 3 Ph, 75 at 480 Vac TD 3 Ph, 100 at 600 Vac TD 3 Ph, 20 at 250 Vdc
Notes: Suitable for service entrance use with a neutral or ground lug kit installed
