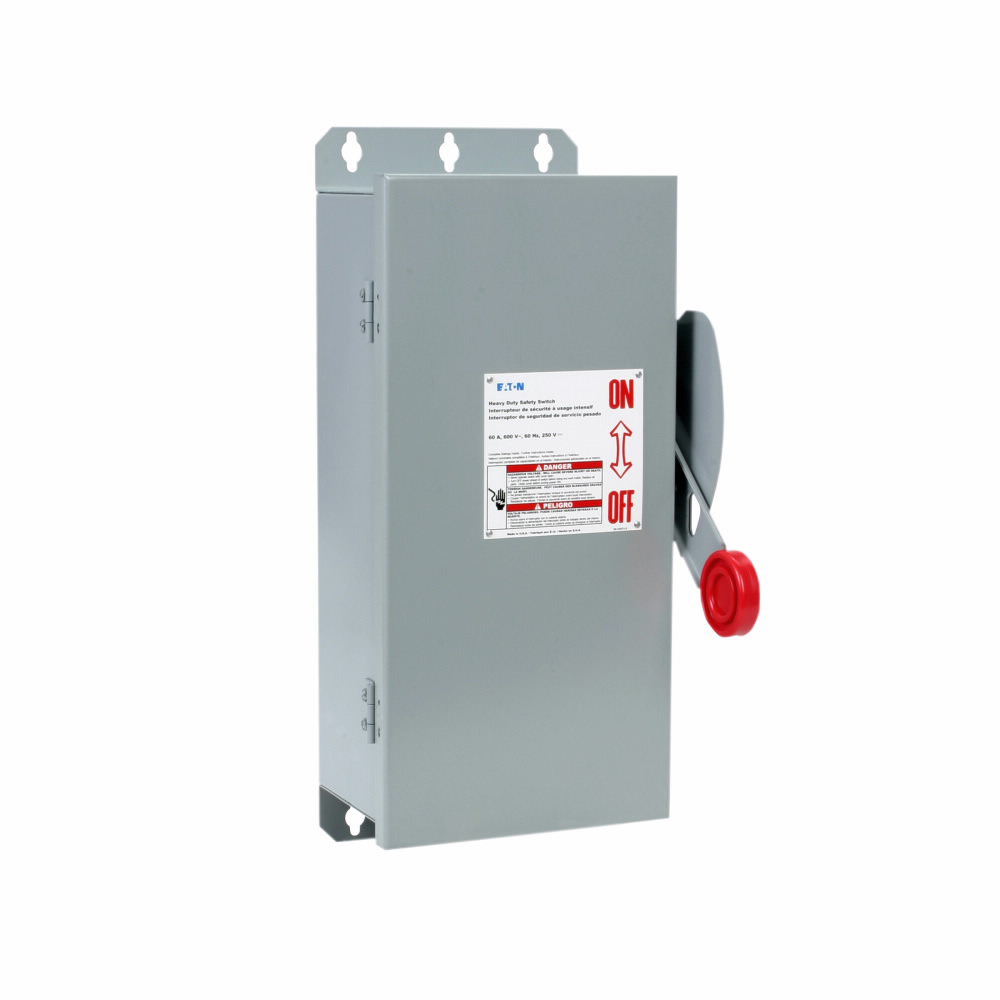

Eaton Heavy duty single-throw fused safety switch, Mill-duty, 30 A, NEMA 12/3R, Painted galvanized steel, Class H, Fusible without neutral, Two-pole, Two-wire, 600 V, Max Hp: 7.5, 10 hp/15 hp (1PH @480,600 V TD/600 Vdc), #14-#2 Cu/Al
SKU: #163013
Part: #DH261FDK
UPC: 782113205564
Eaton Heavy duty single-throw fused safety switch, Mill-duty, 30 A, NEMA 12/3R, Painted galvanized steel, Class H, Fusible without neutral, Two-pole, Two-wire, 600 V, Max Hp: 7.5, 10 hp/15 hp (1PH @480,600 V TD/600 Vdc), #14-#2 Cu/Al
SKU: #163013
Part: #DH261FDK
UPC: 782113205564
Description
Eaton Heavy Duty Single-Throw Fused Safety Switch - Mill-Duty Electrical Distributor Solution
The Eaton Heavy Duty single-throw fused safety switch is designed for industrial electrical distribution and control applications. It is a mill-duty rated, two-pole, two-wire switch suitable for 600 V systems, providing reliable disconnecting means with fusible protection. This switch is ideal for use in commercial and industrial environments requiring robust safety switching solutions from a trusted switchgear supplier.
Specifications
- Manufacturer: Eaton
- Manufacturer Part #: DH261FDK
- Amperage: 30 amperes
- Number of Poles: 2
- Voltage Rating: 600 V
- Max Horsepower: 7.5 hp, 10 hp/15 hp (1PH @ 480, 600 V TD / 600 Vdc)
- Enclosure Material: Painted galvanized steel
- Dimensions (H x W x D): 24.95 in x 10.76 in x 10.22 in
- Product Weight: 19.0 lbs
- Wire Range: #14 - #2 Copper/Aluminum
- UPC: 782113205564
- NEMA Rating: 12/3R
- Fusible without neutral
Features
- Heavy-duty mill-duty rating for industrial applications
- Fusible safety switch providing reliable circuit protection
- Painted galvanized steel enclosure for durability and corrosion resistance
- Two-pole, two-wire design suitable for 600 V electrical systems
- Accepts #14 to #2 copper or aluminum wire
- Compact dimensions with a manageable weight of 19 lbs
- Max horsepower ratings suitable for motor control applications
