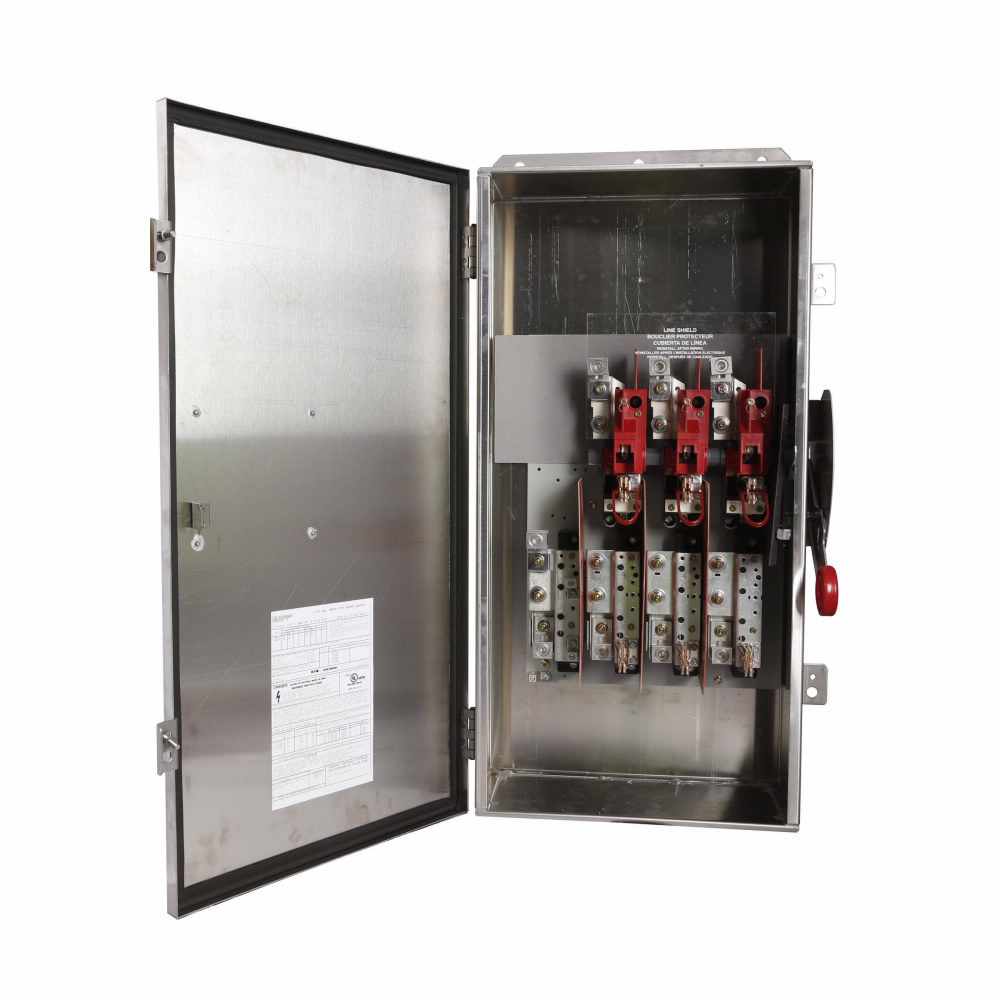

Eaton Heavy duty single-throw fused safety switch, Corrosion resistant, 200 A, NEMA 4X, Grade 316 stainless steel, Class H, Neutral, Three-pole, Four-wire, 240 V, Max Hp: 25, 60 hp (3PH @Std, TD), #6-300 kcmil Cu/Al
SKU: #163299
Part: #DH324NWK316
UPC: 782116489923
Eaton Heavy duty single-throw fused safety switch, Corrosion resistant, 200 A, NEMA 4X, Grade 316 stainless steel, Class H, Neutral, Three-pole, Four-wire, 240 V, Max Hp: 25, 60 hp (3PH @Std, TD), #6-300 kcmil Cu/Al
SKU: #163299
Part: #DH324NWK316
UPC: 782116489923
Description
Eaton Heavy duty single-throw fused safety switch - Corrosion resistant switch
The Eaton Heavy duty single-throw fused safety switch is designed for industrial and commercial electrical distribution applications requiring reliable power control and protection. This switch is suitable for use in harsh environments as a heavy-duty electrical distributor component, providing safe disconnection and fused protection for wire and cable circuits. Its corrosion-resistant 316 grade stainless steel enclosure ensures durability and longevity in demanding conditions, making it ideal for use in lighting solutions, switchgear supplier systems, and other power distribution setups.
Specifications
- Amperage: 200 amperes
- Voltage: 240 V
- Maximum Horsepower: 25 HP, 60 HP (3-phase at standard, time delay)
- Poles: Three-pole
- Wires: Four-wire
- Enclosure Material: 316 Stainless Steel (Grade 316)
- Enclosure Rating: NEMA 4X
- Class: Class H
- Neutral: Included
- Wire Size Capacity: #6-300 kcmil Copper/Aluminum
- Dimensions (W x H x D): 16 in x 34.38 in x 11.5 in
- Product Weight: 61 lbs
- Manufacturer: Eaton
- Manufacturer Part Number: DH324NWK316
Features
- Heavy-duty single-throw fused safety switch for industrial power control
- Corrosion-resistant 316 grade stainless steel enclosure for enhanced durability
- NEMA 4X rated enclosure suitable for wet or harsh environments
- Class H fuse compatible for reliable circuit protection
- Includes neutral for four-wire systems
- Accommodates a wide range of conductor sizes (#6 to 300 kcmil Cu/Al)
- Three-pole design with 200 ampere capacity
- Compact dimensions optimized for commercial electrical installations
