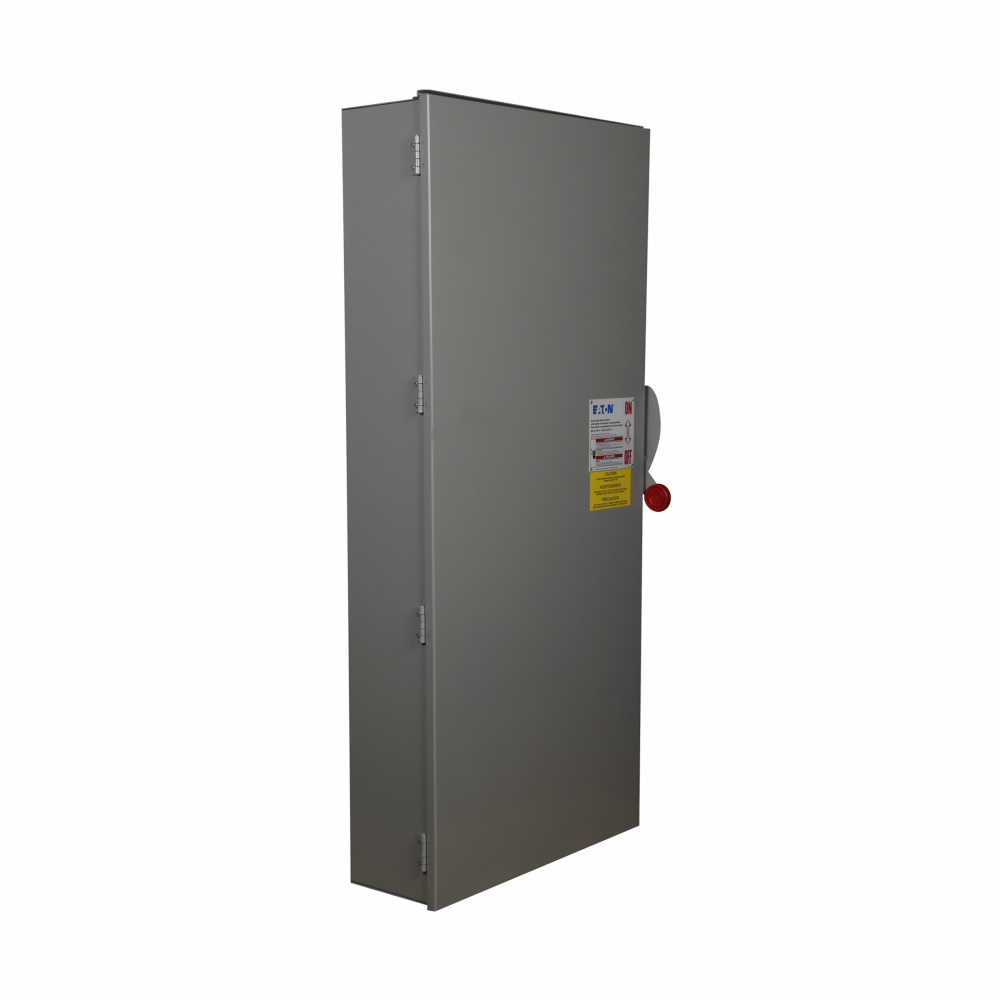

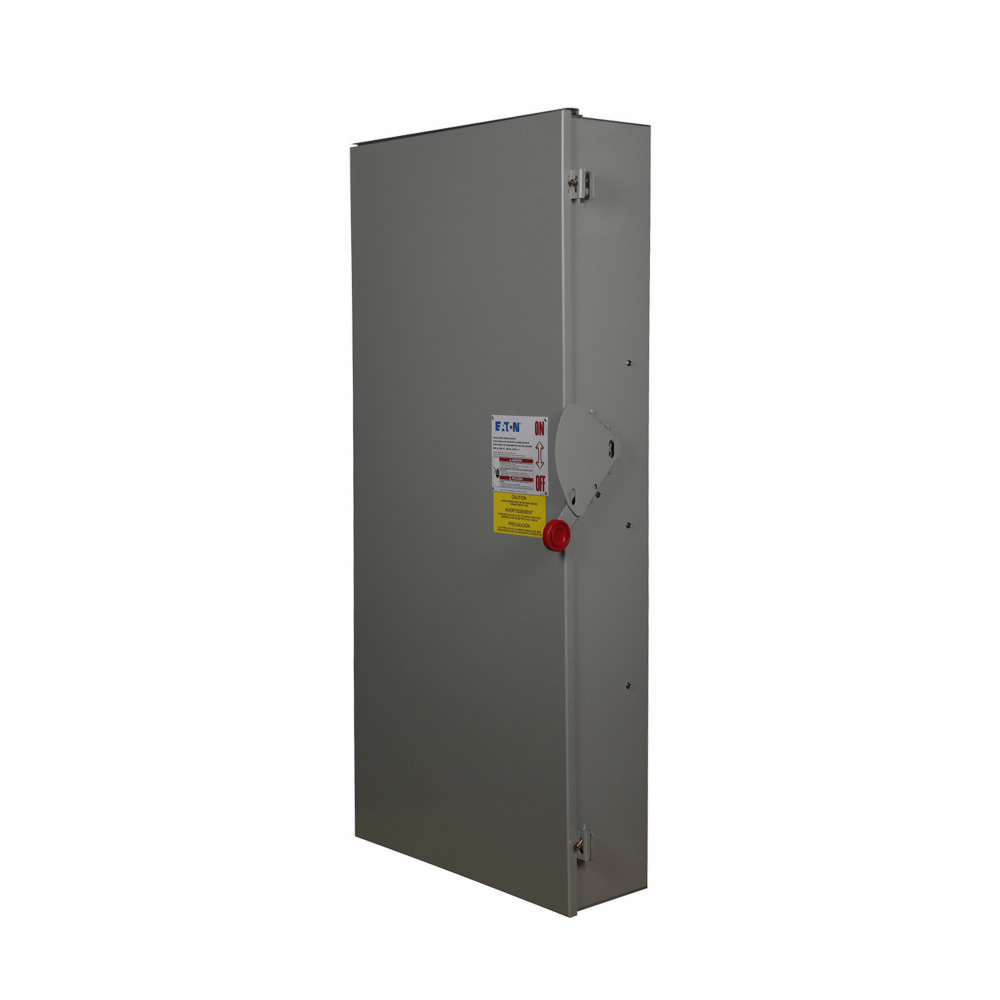

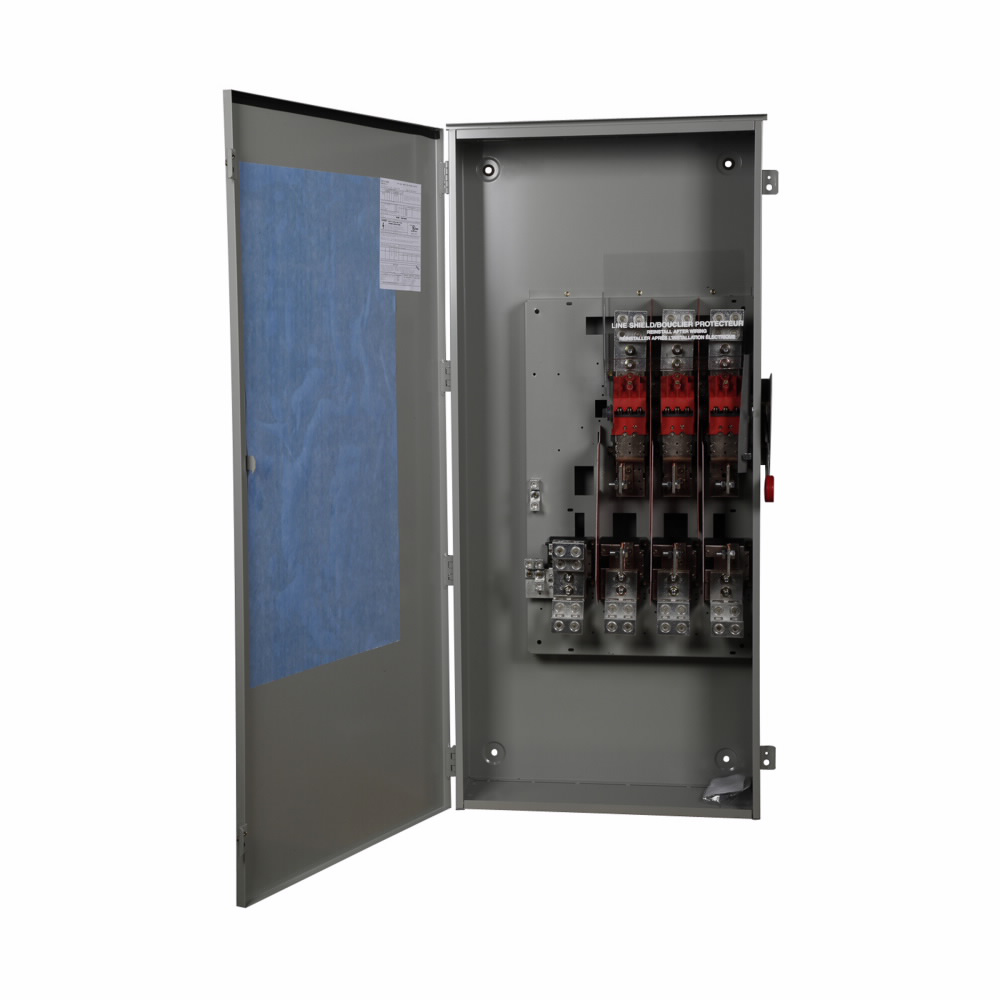

Eaton Heavy duty single-throw fused safety switch, 800 A, NEMA 3R, Painted galvanized steel, Class L, Fusible with neutral, Three-pole, Four-wire, 600 V, Max Hp: 500, 500 hp (3PH @480/600 V), (4)#1/0-(4)750 kcmil Al
SKU: #163943
Part: #DH367NRK
UPC: 782113639277
Eaton Heavy duty single-throw fused safety switch, 800 A, NEMA 3R, Painted galvanized steel, Class L, Fusible with neutral, Three-pole, Four-wire, 600 V, Max Hp: 500, 500 hp (3PH @480/600 V), (4)#1/0-(4)750 kcmil Al
SKU: #163943
Part: #DH367NRK
UPC: 782113639277
Description
Eaton Heavy Duty Single-Throw Fused Safety Switch – 800 A
The Eaton Heavy Duty single-throw fused safety switch is designed for reliable power distribution and protection in commercial and industrial electrical systems. This switch, rated at 800 amperes and 600 volts, is suitable for use in harsh environments requiring NEMA 3R enclosure protection. It features a painted galvanized steel enclosure and Class L fusible protection with neutral, supporting three-pole, four-wire configurations. The switch supports a maximum horsepower rating of 500 hp at 480/600 V, making it ideal for heavy-duty electrical applications. Eaton’s safety switch is a trusted component for electrical distributors, lighting solutions, wire and cable systems, and switchgear suppliers seeking durable and compliant power control devices.
Specifications
- Amperage: 800 amperes
- Voltage Rating: 600 V
- Poles: Three-pole
- Wires: Four-wire
- Maximum Horsepower: 500 hp (3-phase @ 480/600 V)
- Enclosure Rating: NEMA 3R
- Enclosure Material: Painted Galvanized Steel
- Product Weight: 210 lbs
- Dimensions (W x H x L): 27.5 in x 12.38 in x 57.5 in
- Manufacturer: Eaton
- Manufacturer Part Number: DH367NRK
- Wire Range: (4)#1/0-(4)750 kcmil Aluminum
Features
- Heavy-duty single-throw fused safety switch with neutral
- Painted galvanized steel enclosure for corrosion resistance
- NEMA 3R rated for outdoor and indoor use with rainproof protection
- Class L fusing for reliable circuit protection
- Supports high horsepower motor applications up to 500 hp
- Three-pole, four-wire configuration for versatile electrical system integration
- Compliant with industry standards for commercial distribution and power control
