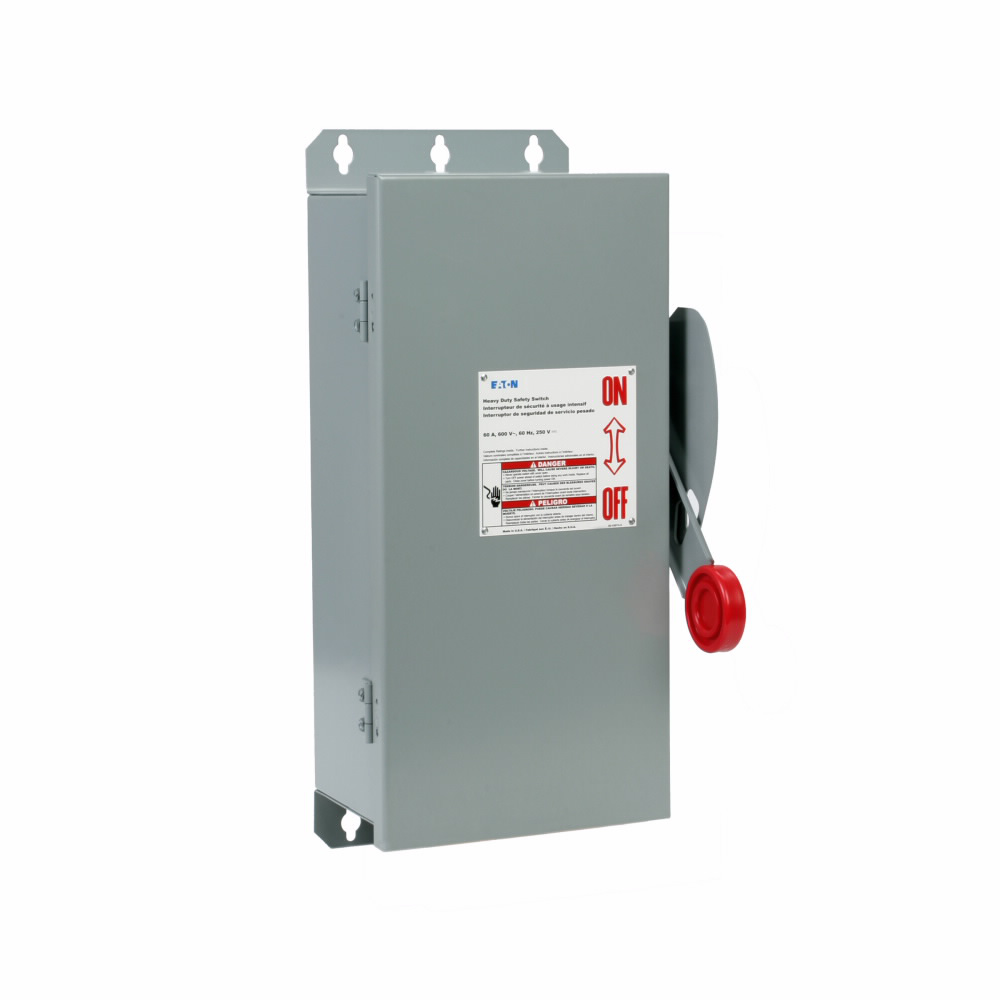

Eaton Heavy duty single-throw fused safety switch, 30 A, NEMA 12/3R, Painted galvanized steel, Class H, Fusible with neutral, Three-pole, Four-wire, 600 V, Max Hp: 7.5, 10/ 15, 20 hp (1/3PH @480, 600 V), #14-#2 Cu/Al
SKU: #163447
Part: #DH361NDK
UPC: 782113205731
Eaton Heavy duty single-throw fused safety switch, 30 A, NEMA 12/3R, Painted galvanized steel, Class H, Fusible with neutral, Three-pole, Four-wire, 600 V, Max Hp: 7.5, 10/ 15, 20 hp (1/3PH @480, 600 V), #14-#2 Cu/Al
SKU: #163447
Part: #DH361NDK
UPC: 782113205731
Next day delivery
Description
Eaton Heavy duty single-throw fused safety switch – Electrical Distributor Safety Switch
The Eaton Heavy duty single-throw fused safety switch is designed for reliable power distribution and circuit protection applications. This switch is suitable for industrial and commercial electrical systems requiring robust safety disconnects. Available in NEMA 12/3R enclosures and constructed with painted galvanized steel, it is engineered to withstand demanding environments. The switch is fusible with neutral and supports three-pole, four-wire configurations at up to 600 V. It is compatible with wire sizes #14 to #2 Cu/Al, making it suitable for a range of wire and cable installations. This product is ideal for electrical distributors and switchgear suppliers focusing on lighting solutions and power control.
Specifications
- Manufacturer: Eaton
- Amperage: 30 amperes
- Enclosure Material: Painted Galvanized Steel
- Dimensions (H x W x L): 19.08 in x 7.73 in x 10.22 in
- Voltage Rating: 600 V
- Poles: Three-pole
- Wires: Four-wire
- Max Horsepower: 7.5 hp (10/15/20 hp at 1/3PH @480, 600 V)
- Wire Size Range: #14-#2 Cu/Al
- Manufacturer Part #: DH361NDK
- Product Weight: 22 lbs
- UPC: 782113205731
Features
- Heavy-duty single-throw fused safety switch
- Fusible with neutral for enhanced circuit protection
- Painted galvanized steel enclosure for durability
- Suitable for three-pole, four-wire systems
- Compatible with 600 V systems and rated for motor loads up to 7.5 hp
- Compact dimensions for flexible installation
- Meets UL 98 and UL 50 standards for enclosed deadfront switches and enclosures
- Provides safe disconnect with visible blade mechanism and mechanical interlock
- Available with options for viewing windows and enhanced visible blade (per Eaton Flex Center customization)
