Eaton Heavy duty single-throw fused safety switch, 200 A, NEMA 1, Painted steel, Class H, Neutral, Three-pole, Four-wire, 240 V, Max Hp: 15, 25/ 15, 60/ 40 hp (1,3PH @Std/TD/250 Vdc), #6-250 kcmil Cu/Al
SKU: #163285
Part: #DH324NGK
UPC: 782113206684
Eaton Heavy duty single-throw fused safety switch, 200 A, NEMA 1, Painted steel, Class H, Neutral, Three-pole, Four-wire, 240 V, Max Hp: 15, 25/ 15, 60/ 40 hp (1,3PH @Std/TD/250 Vdc), #6-250 kcmil Cu/Al
SKU: #163285
Part: #DH324NGK
UPC: 782113206684
Description

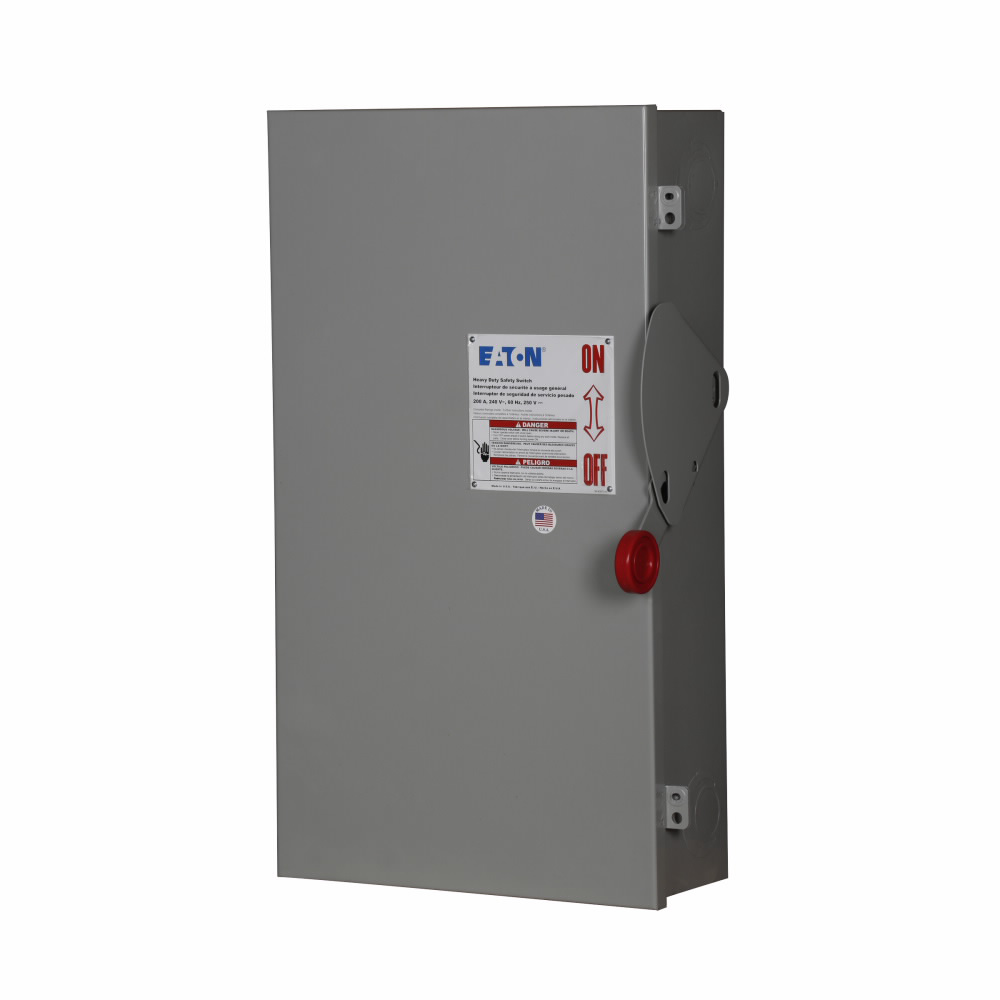

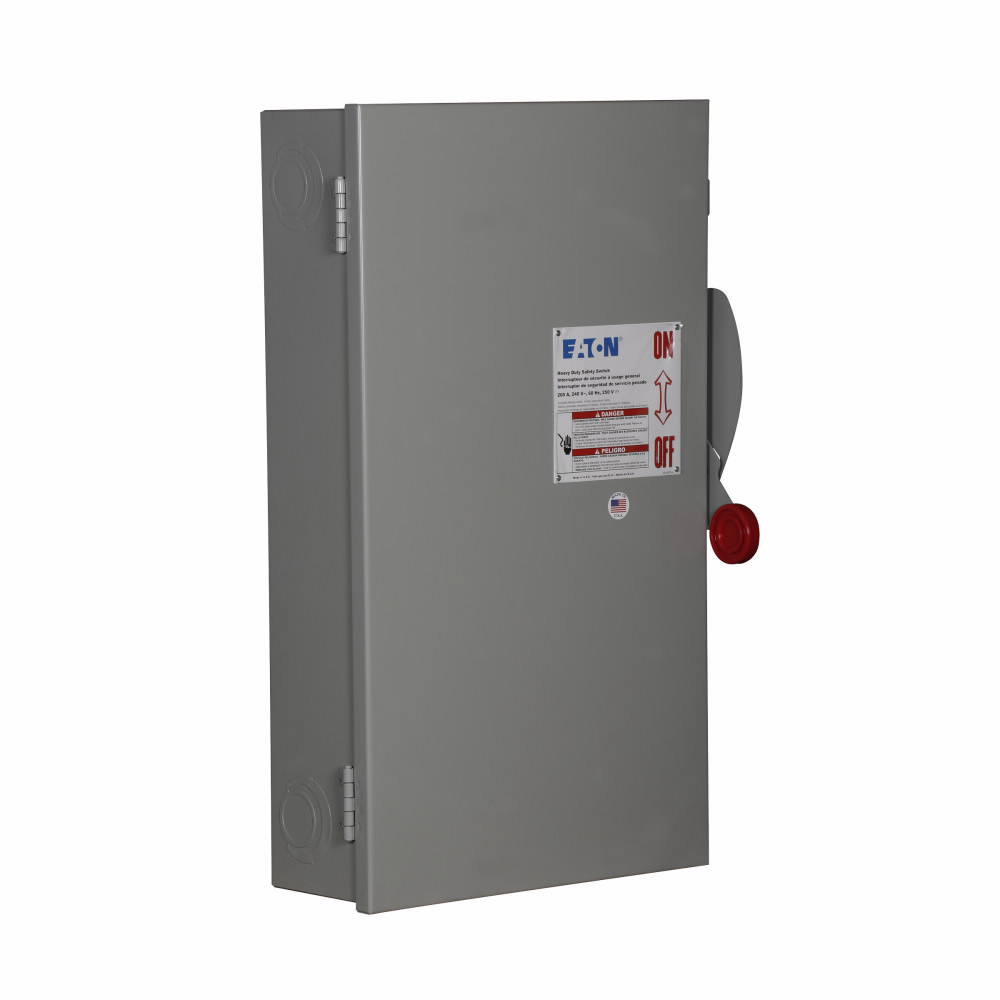

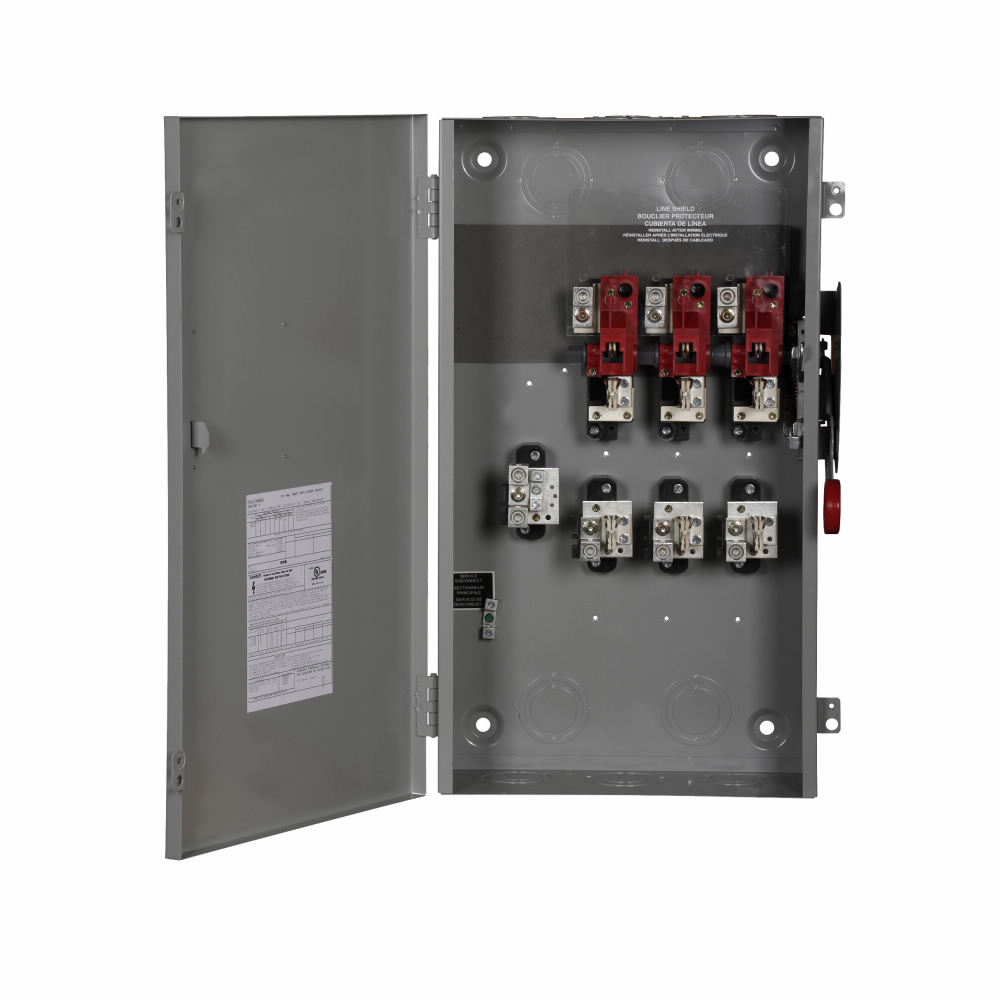

Eaton Heavy duty single-throw fused safety switch 200 A
The Eaton Heavy duty single-throw fused safety switch is designed for reliable power distribution and protection in commercial and industrial electrical systems. This three-pole, four-wire switch is rated for 200 amperes and 240 volts, suitable for heavy-duty applications requiring safe disconnecting means. The switch features a painted steel enclosure rated NEMA 1, providing durable protection in indoor environments. It supports Class H fusing and accommodates copper or aluminum wire sizes from #6 to 250 kcmil. The switch is ideal for use by electrical distributors, lighting solutions providers, wire and cable suppliers, and switchgear suppliers seeking robust safety switch solutions.
Specifications
- Manufacturer: Eaton
- Manufacturer Part #: DH324NGK
- Amperage: 200 amperes
- Voltage: 240 V
- Number of Poles: Three-pole
- Number of Wires: Four-wire
- Enclosure Material: Painted Steel
- Enclosure Rating: NEMA 1
- Class: Class H
- Maximum Horsepower: 15 HP
- Wire Size Capacity: #6-250 kcmil Cu/Al
- Dimensions (W x H x L): 18 in x 9.5 in x 30 in
- Product Weight: 40 lbs
- UPC: 782113206684
Features
- Heavy-duty single-throw fused safety switch for secure disconnecting
- Painted steel enclosure for durability and protection in NEMA 1 environments
- Supports Class H fusing for reliable circuit protection
- Compatible with copper and aluminum conductors up to 250 kcmil
- Three-pole, four-wire configuration for common commercial power distribution needs
- Compact dimensions suitable for various electrical installations
- Factory-installed ground lug for enhanced safety
