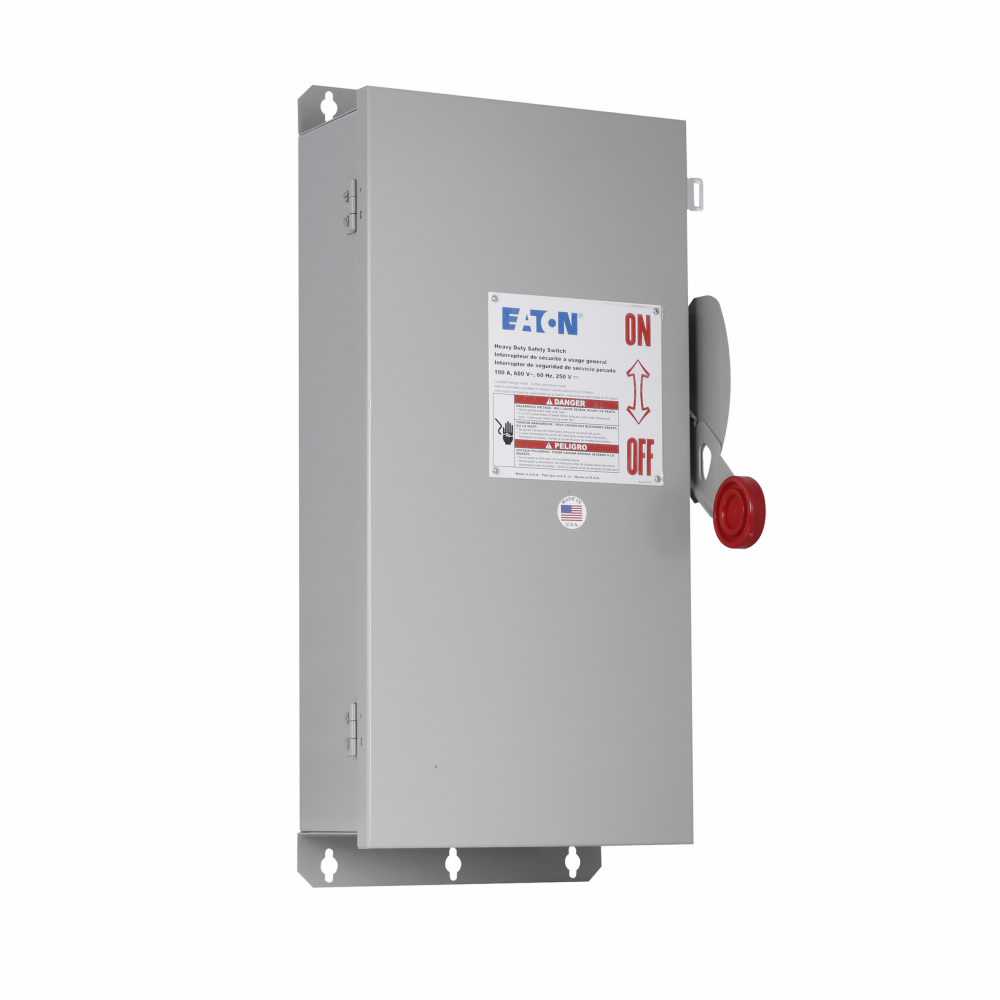

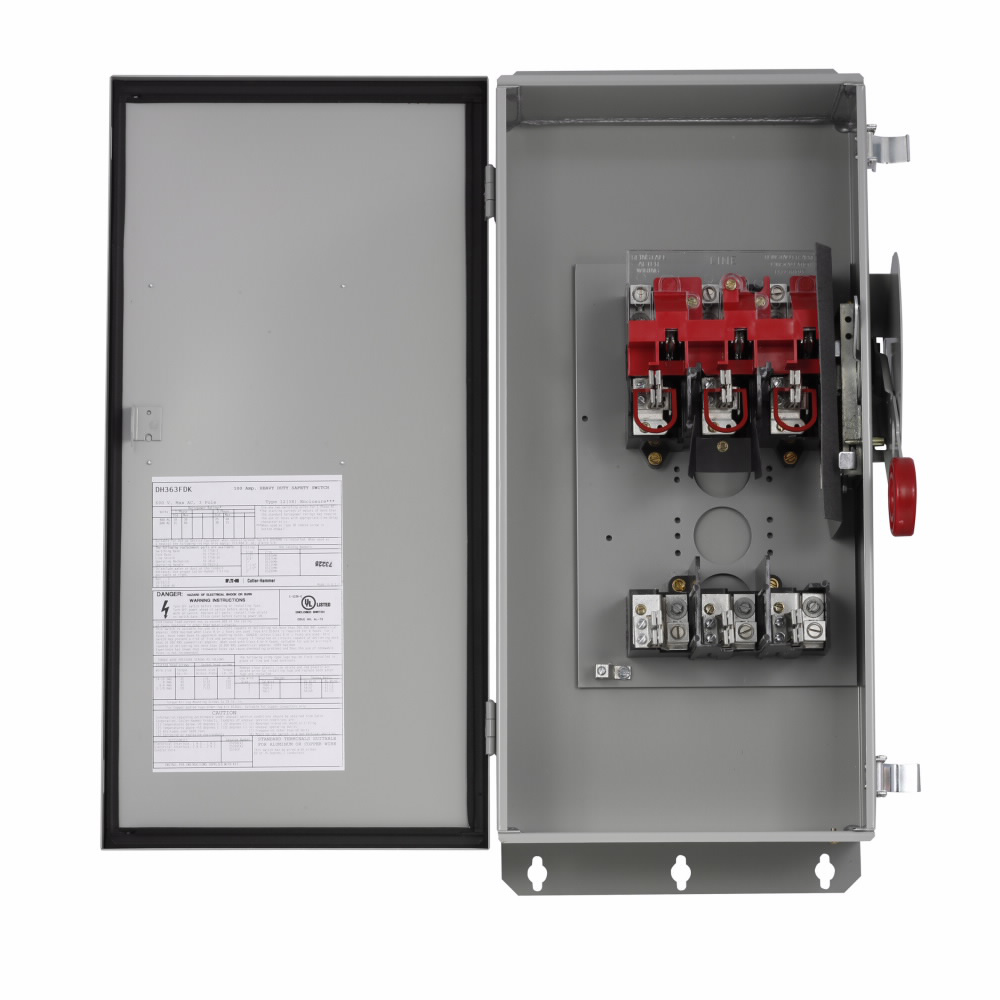

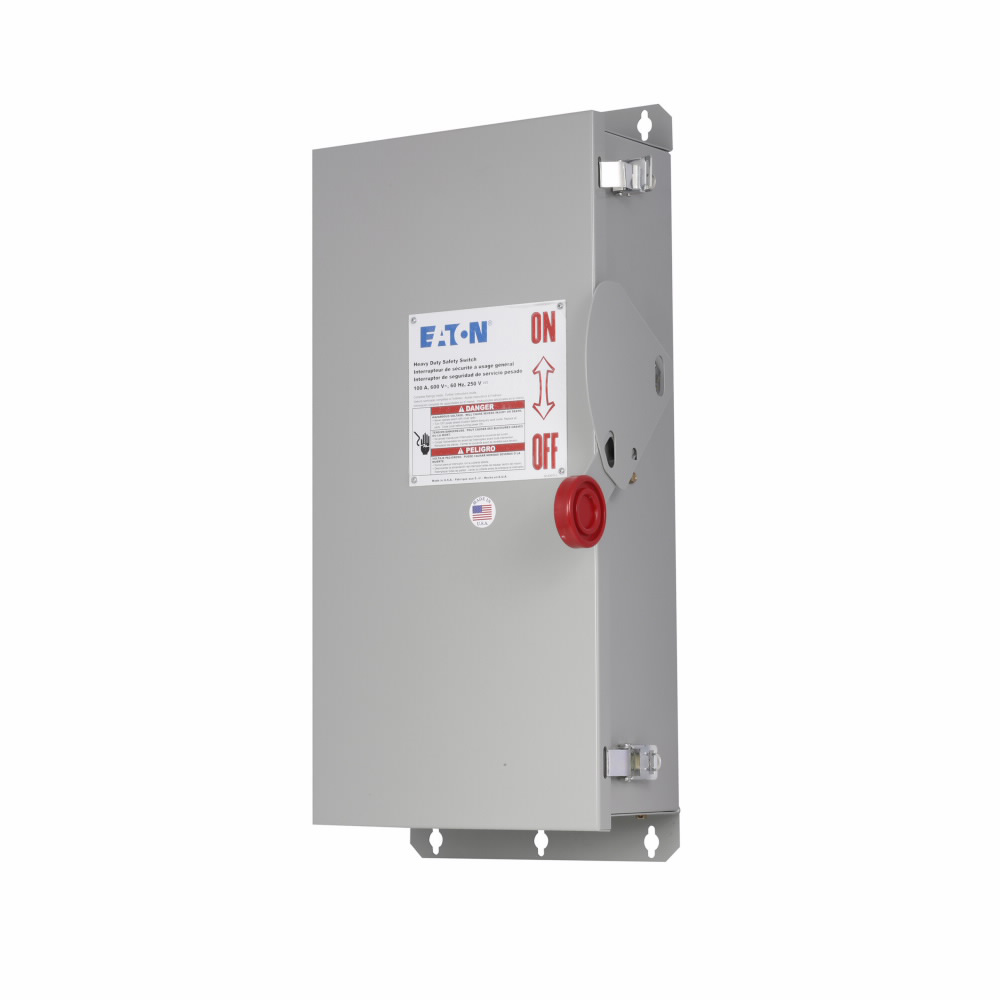

Eaton Heavy duty single-throw fused safety switch, 100 A, NEMA 12, Painted galvanized steel, Class H, Fusible without neutral, Two-pole, Two-wire, 600 V, Max Hp: 30, 40 hp/25 hp (1PH @480,600 V TD/600 Vdc), #14-#1/0 Cu/Al
SKU: #163095
Part: #DH263FDK
UPC: 782113206523
Eaton Heavy duty single-throw fused safety switch, 100 A, NEMA 12, Painted galvanized steel, Class H, Fusible without neutral, Two-pole, Two-wire, 600 V, Max Hp: 30, 40 hp/25 hp (1PH @480,600 V TD/600 Vdc), #14-#1/0 Cu/Al
SKU: #163095
Part: #DH263FDK
UPC: 782113206523
Description
Eaton Heavy Duty Single-Throw Fused Safety Switch - Electrical Distributor Switchgear Supplier
The Eaton Heavy Duty single-throw fused safety switch is designed for reliable electrical distribution and safety in commercial and industrial applications. It is suitable for use in lighting solutions, wire and cable systems, and as part of switchgear assemblies. This switch provides fusible protection without a neutral and is rated for 100 amperes at 600 volts, supporting up to 40 hp at 480/600 V and 600 Vdc motor loads. Its NEMA 12 enclosure made of painted galvanized steel ensures durability and protection in industrial environments.
Specifications
- Manufacturer: Eaton
- Manufacturer Part #: DH263FDK
- Amperage: 100 amperes
- Number of Poles: 2
- Enclosure: NEMA 12
- Enclosure Material: Painted Galvanized Steel
- Voltage Rating: 600 V
- Max Horsepower: 30 hp, 40 hp/25 hp (1PH @ 480,600 V TD/600 Vdc)
- Wire Range: #14 - #1/0 Copper/Aluminum
- Dimensions (W x H x L): 13.25 in x 9 in x 25.5 in
- Product Weight: 27 lbs
Features
- Heavy duty single-throw design with fusible protection
- Fusible without neutral for safety and reliability
- Two-pole, two-wire configuration
- Painted galvanized steel enclosure providing NEMA 12 protection for indoor industrial environments
- Suitable for motor loads up to 40 hp at 480/600 V and 600 Vdc
- Accepts copper and aluminum conductors (#14 to #1/0)
- Compact dimensions suitable for commercial distribution panels and switchgear assemblies
