Eaton Heavy duty double-throw non-fused safety switch, 60 A, NEMA 1, Painted steel, Non-fusible, Two-pole, Two-wire, 240 Vac, 250 Vdc
SKU: #164121
Part: #DT222UGK
UPC: 782113440002
Eaton Heavy duty double-throw non-fused safety switch, 60 A, NEMA 1, Painted steel, Non-fusible, Two-pole, Two-wire, 240 Vac, 250 Vdc
SKU: #164121
Part: #DT222UGK
UPC: 782113440002
Description

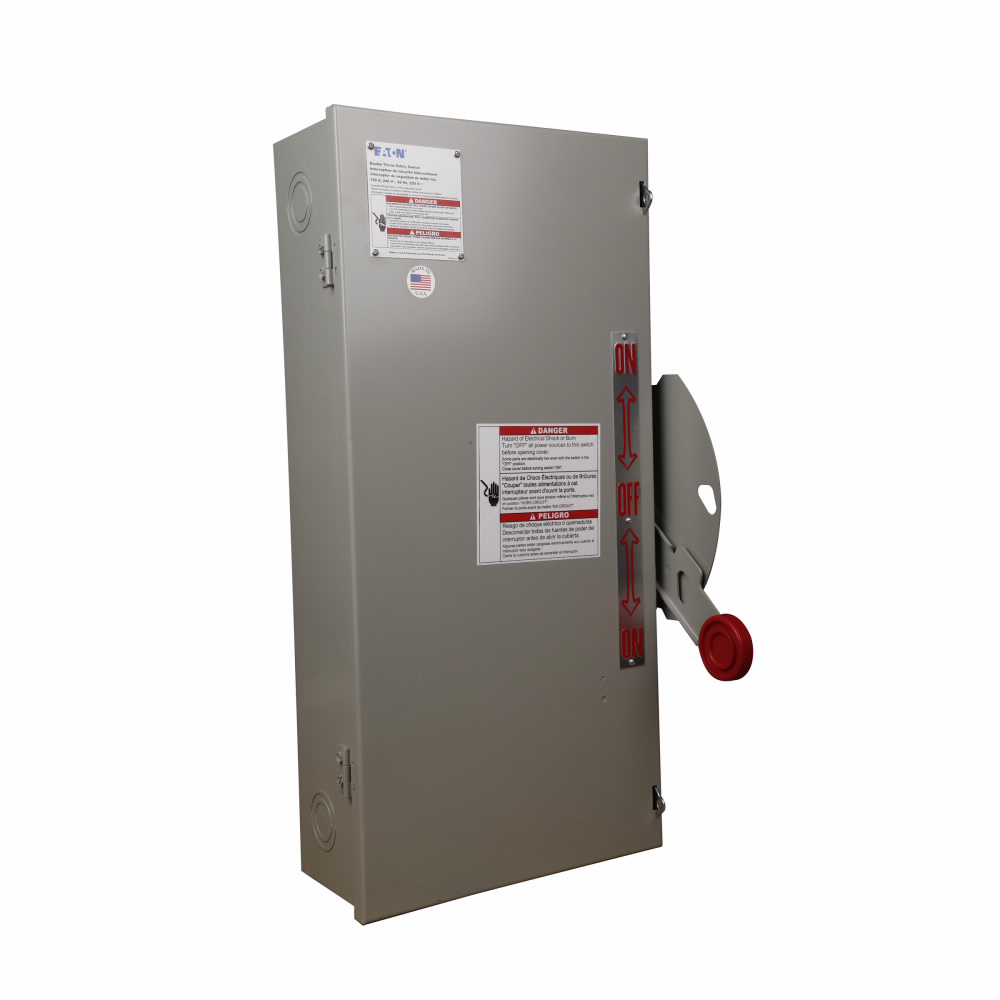

Eaton Heavy Duty Double-Throw Non-Fused Safety Switch, 60 A
The Eaton Heavy Duty Double-Throw Non-Fused Safety Switch is designed for reliable power switching and safety in industrial and commercial electrical applications. Suitable for use in backup power, HVAC, petrochemical, chemical processing, and water treatment systems, this switch offers a compact, stacked design that reduces enclosure size and handling complexity. It is ideal for electrical distributors and switchgear suppliers seeking robust solutions for wire and cable management and lighting solutions requiring dependable disconnect capabilities.
Specifications
- Manufacturer: Eaton
- Amperage: 60 amperes
- Voltage Rating: 240 Vac, 250 Vdc
- Number of Poles: 2 (Two-pole)
- Duty Rating: Heavy Duty
- Enclosure Material: Painted Steel
- Dimensions (HxWxD): 25.02 in x 11.95 in x 11.19 in
- Product Weight: 33 lbs
- Manufacturer Part #: DT222UGK
Features
- Non-fusible, double-throw design enabling switching between two power sources
- Heavy-duty construction with painted steel enclosure for durability
- Compact stacked switch base design reduces size and weight
- Suitable for service entrance applications
- Standard robust fast-acting switch mechanism for reliable operation
- Common load-side mechanical lugs simplify wiring
- Visual switch position indicator for clear ON/OFF status
- Compatible with Eaton’s Flex Center for customized accessory options and modifications
- Z bracket included for simplified permanent wall mounting
