Eaton Heavy duty double-throw non-fused safety switch, 100 A, NEMA 1, Painted steel, Non-fusible, Three-pole, Three-wire, 240 Vac, 250 Vdc
SKU: #164163
Part: #DT323UGK
UPC: 782113440040
Eaton Heavy duty double-throw non-fused safety switch, 100 A, NEMA 1, Painted steel, Non-fusible, Three-pole, Three-wire, 240 Vac, 250 Vdc
SKU: #164163
Part: #DT323UGK
UPC: 782113440040
Next day delivery
Description

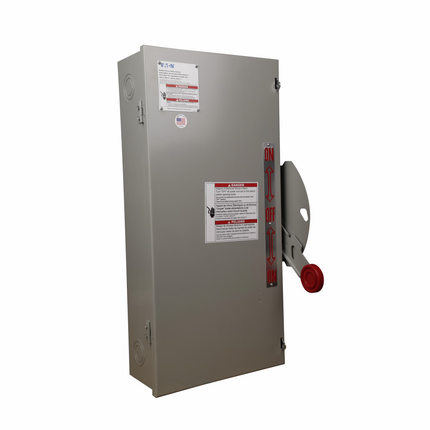

Eaton Heavy duty double-throw non-fused safety switch, 100 A, NEMA 1, Painted steel, Non-fusible, Three-pole, Three-wire, 240 Vac, 250 Vdc - Heavy Duty Safety Switch
This Eaton heavy-duty double-throw safety switch is designed for reliable electrical distribution and control in commercial and industrial applications. Ideal for use by electrical distributors, lighting solutions providers, wire and cable suppliers, and switchgear suppliers, this switch provides secure power isolation and transfer capabilities. Featuring a non-fusible design, it supports three-pole, three-wire configurations at 240 Vac and 250 Vdc, suitable for robust power management and safety compliance.
Specifications
- Amperage: 100 amperes
- Duty Rating: Heavy Duty
- Enclosure Material: Painted Steel
- Dimensions: 25.02 in (Height) x 11.95 in (Width) x 11.19 in (Length)
- Weight: 34.0 lbs
- Poles: Three-pole
- Wires: Three-wire
- Voltage: 240 Vac, 250 Vdc
- Manufacturer: Eaton
- Manufacturer Part #: DT323UGK
- NEMA Rating: NEMA 1
Features
- Heavy-duty construction for demanding electrical environments
- Double-throw mechanism for safe and reliable power transfer
- Non-fusible design reduces maintenance and simplifies installation
- Painted steel enclosure provides durability and corrosion resistance
- Compact dimensions optimize space utilization in electrical panels
- Factory-installed ground lug for enhanced safety
