Eaton General purpose ventilated transformer, Fungus proof, CU wndngs, DOE 2016, NEMA 2, FR944, 220°C, 150 kVA, E-S shield, Fl/wall mt uprt, 3-ph, PV: 480V delta, SV: 208Y/120, NEMA ST-20, 2 at +2.5%, 4 at -2.5%, 80°C, 150 kVA, WS61, 283B
SKU: #169301
Part: #V48M28B4916CUES
UPC: 786680191763
Eaton General purpose ventilated transformer, Fungus proof, CU wndngs, DOE 2016, NEMA 2, FR944, 220°C, 150 kVA, E-S shield, Fl/wall mt uprt, 3-ph, PV: 480V delta, SV: 208Y/120, NEMA ST-20, 2 at +2.5%, 4 at -2.5%, 80°C, 150 kVA, WS61, 283B
SKU: #169301
Part: #V48M28B4916CUES
UPC: 786680191763
Description

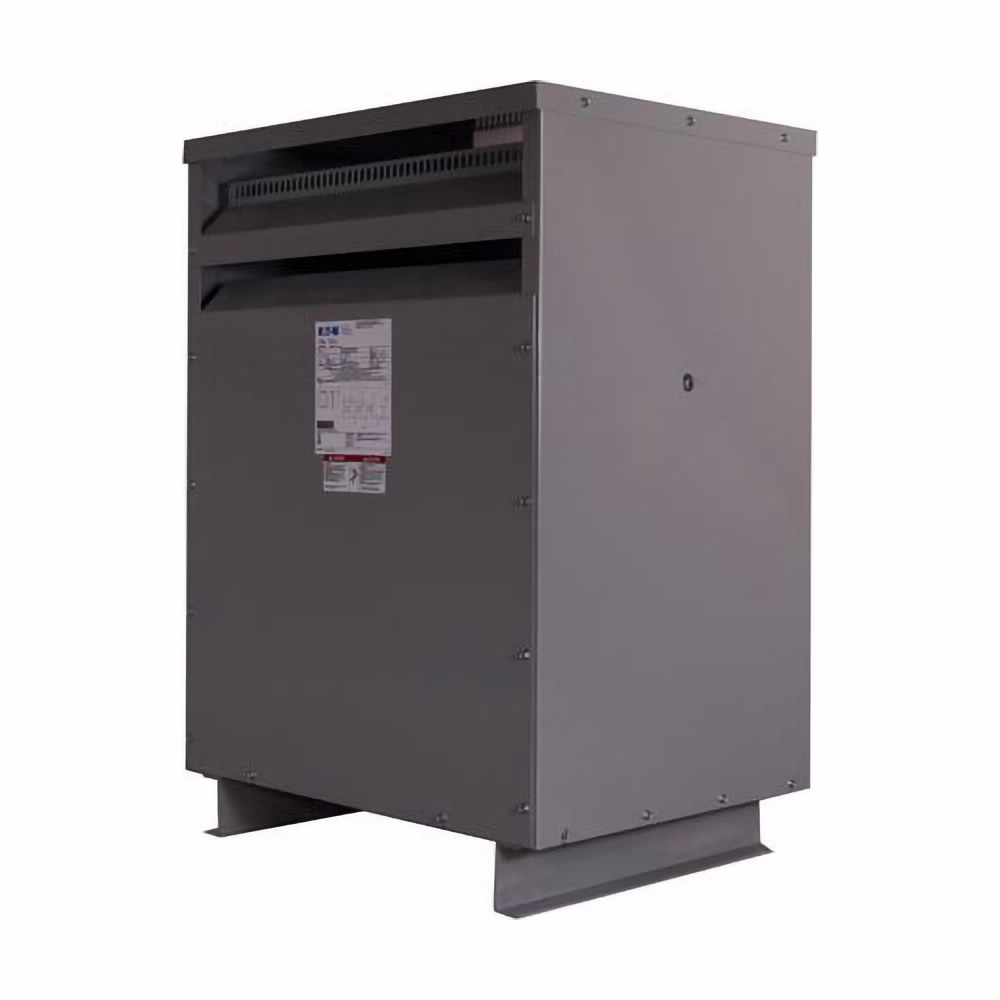

Eaton General Purpose Ventilated Transformer – Electrical Distribution
This Eaton general purpose ventilated transformer is designed for efficient electrical distribution in commercial and industrial applications. It features a fungus-resistant varnished core and coil with copper windings, suitable for use by electrical distributors, lighting solutions providers, wire and cable suppliers, and switchgear suppliers. The transformer operates at 150 kVA with a primary voltage of 480 V delta and secondary voltage of 208Y/120 V, supporting three-phase power systems.
Specifications
- Type: Energy-efficient ventilated dry-type transformer
- Coil Material: Copper
- Efficiency: DOE 2016 (10 CFR Part 431-2016)
- Enclosure: NEMA 2
- Frame: FR944
- Frequency Rating: 60 Hz
- Insulation Temperature: 220°C
- KVA Rating: 150 kVA
- Modification: Electrostatic shield
- Mounting: Floor or wall, upright only
- Phase: Three-phase
- Primary Voltage: 480 V delta
- Secondary Voltage: 208Y/120 V
- Sound Level: NEMA ST-20
- Tap Size: 2 at +2.5%, 4 at -2.5%
- Temperature Rise: 80 °C rise
- Voltage Rating: 480 Vac - 208Y/120 Vac
- Weathershield: WS61
- Wiring Connection: 283B
- Dimensions (HxWxL): 60 in x 38 in x 33.5 in
- Weight: 1895 lb
Features
- Fungus-resistant varnished core and coil for enhanced durability
- Electrostatic shield to reduce electrical noise
- Energy-efficient design compliant with DOE 2016 standards
- Flexible mounting options: floor or wall upright installation
- Robust NEMA 2 enclosure for indoor use
- UL Listed for safety and compliance
